The digital storage oscilloscope is defined as the oscilloscope which stores and analysis the signal digitally, i.e. in the form of 1 or 0 preferably storing them as analogue signals. The digital oscilloscope takes an input signal, store them and then display it on the screen.
Specification:
- Channels: 2
- Bandwidth: 50 MHz
- Sample rate: 1 GS/s
- Rise time: <7 ns
- Memory depth: 25 kpts
- Waveform acquisition rate: >2000 wfms/s
- Vertical sensitivity: 1 mV/div ~ 20 V/div
- Horizontal time basis: 2ns/div ~ 50s/div
- Storage forms: Setup, wave, bitmap
- Trigger types: Edge, pulse width, alternating
- Interfaces: USB OTG
- Power supply: 100-240 V AC, 40-440Hz
- Display: 7", 64k full Colour LCD, 800x480 pixels
Industryparts.pk is the Best Online Shopping website for UTD 2052 CEX Digital storage oscilloscope in Pakistan. We deliver in Karachi, Lahore, Islamabad, Rawalpindi, Peshawar, Quetta, Multan, and all over Pakistan.
Package includes:

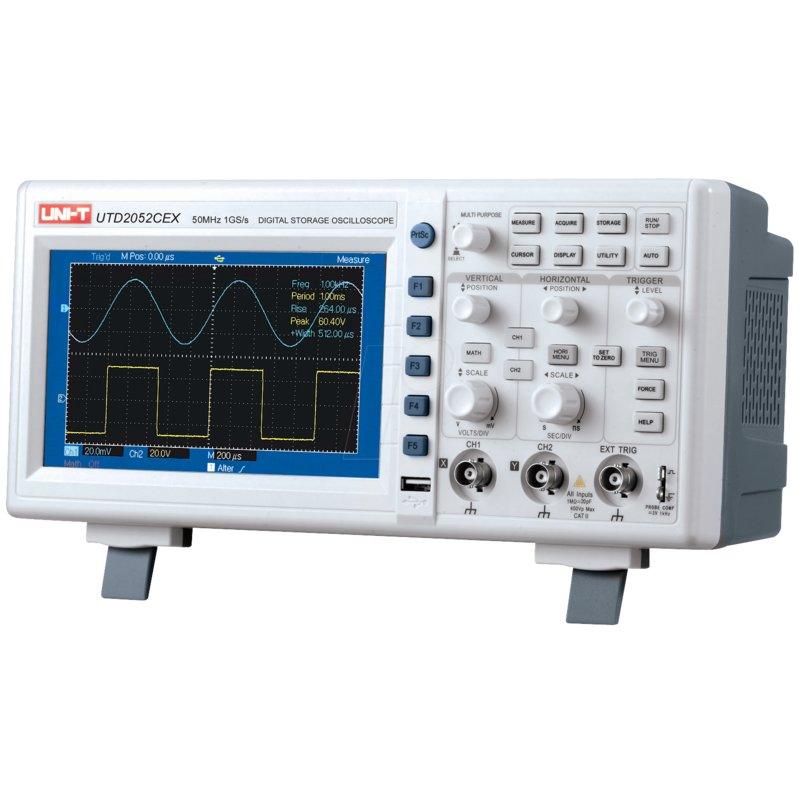

1 x UTD 2052 CEX Digital storage oscilloscope
