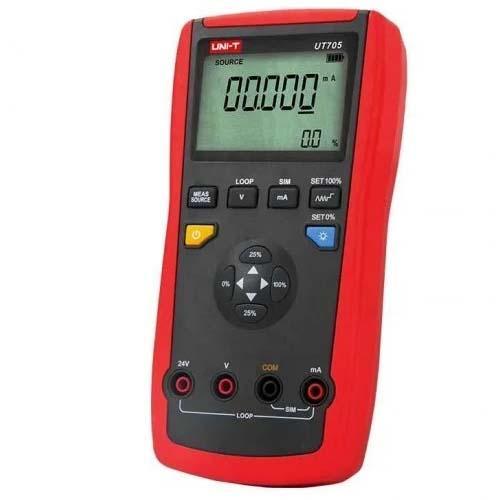

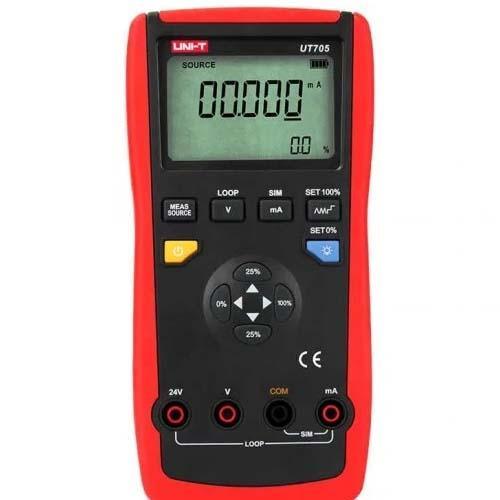

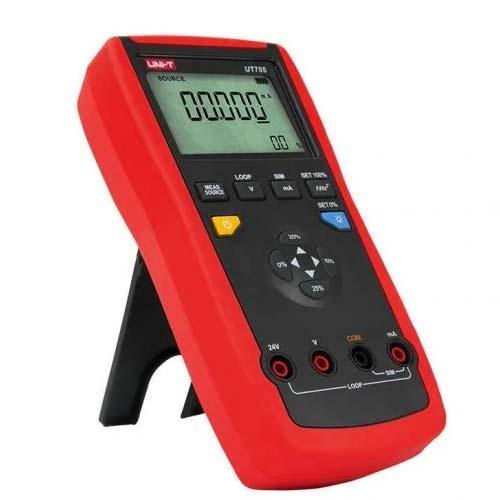

UT705 is a high-performance device for loop calibration and maintenance. Designed with high-accuracy DC current and transmitter analog current outputs, UT705 has DC voltage/current and loop current measurement functions with button settings, selectable steps, and ramp output to help users work more efficiently and accurately. It features an LCD backlight, auto power-off, and is 1m drop-proof.
Features:
- Measures: DC voltage, DC current, 4-20mA loop current
- Output functions: DC current, analog transmitter, 24V loop
- Up to 0.02% accuracy in current measurement at the same time
- Automatic ramp for DC current output
- Manual stepping and automatic stepping and ramping output
- Stores and recalls setups
Specifications:
- Color Red and grey
- DISPLAY SPECIFICATION
- Display 63mm x 40mm
- SUMMARY
- DC Voltage 30.000V
- DC Current 24.000mA
- TECHNICAL SPECIFICATION
- Operating mode Auto range
- GENERAL SPECIFICATION
- Loop current 24.000mA
- Loop power function Voltage: 24V Accuracy: 10%
- Power 9V battery (6F22)
- Weight 410g
- Dimension 96mm x 193mm x 47mm
Industryparts.pk is the Best Online Shopping website for UNI-T UT705 Single Function Loop Calibrator. Here you get UNI-T UT705 Single Function Loop Calibrator at a reasonable price in Karachi, Lahore, Islamabad, Rawalpindi, Peshawar, Quetta, Multan, and all over Pakistan.
Package Includes:
1 x UNI-T UT705 Single Function Loop Calibrator
