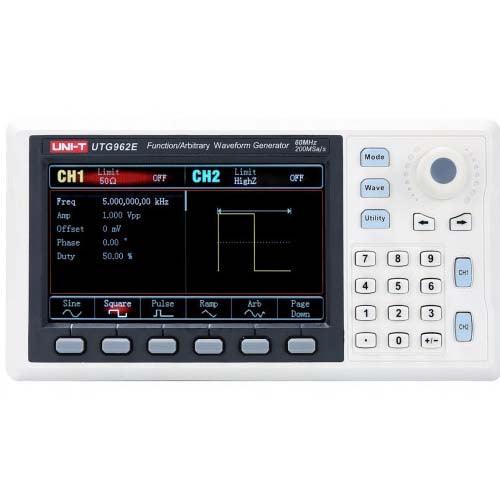

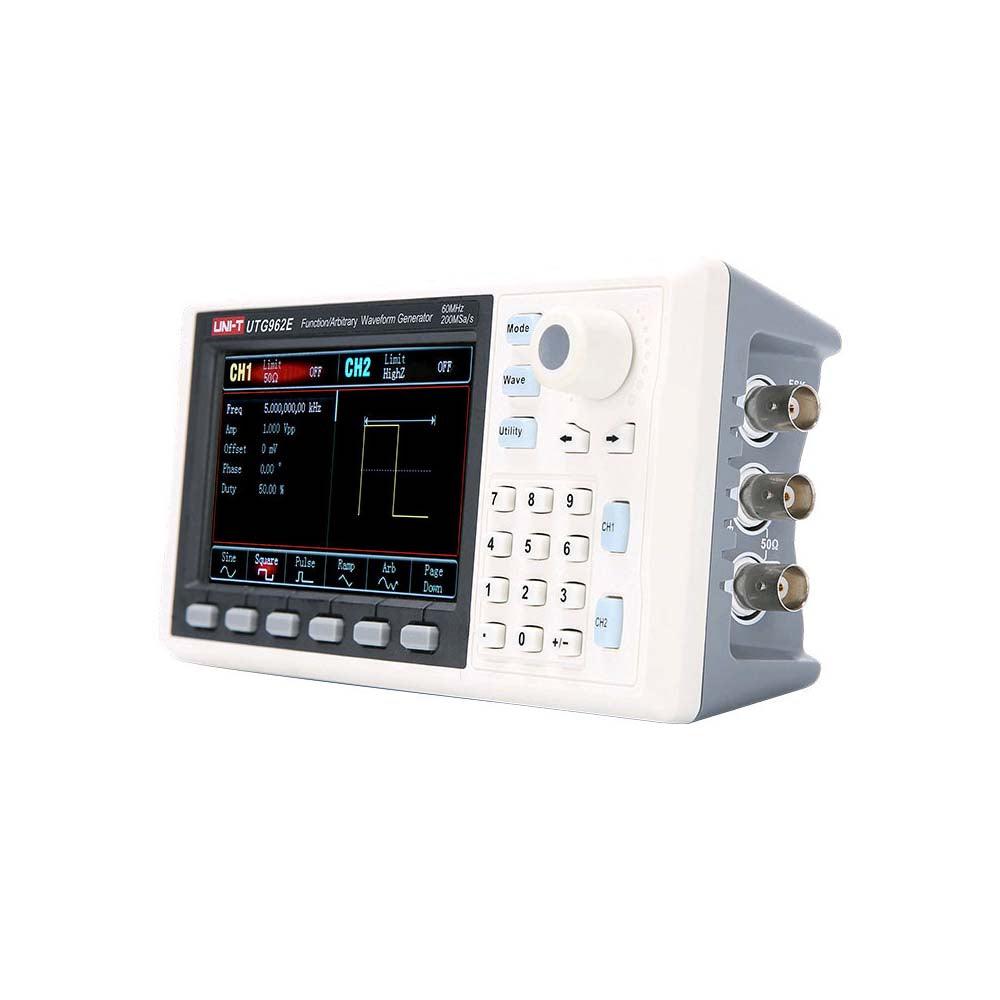

The UTG962E from UNI-T is a budget 14-bit function generator with a bandwidth of 60 MHz. This function generator uses direct digital synthesis (DDS) technology to produce stable and accurate waveforms. This function generator comes with 24 built-in arbitrary waveforms and can store up to 26.
With the free PC software, it is possible to draw your own waveforms and save them on the function generator (Windows only). Check out this video for more information about the software.
The easy-to-use interface, user-friendly graphical display, and compact size make this an ideal budget function generator that will easily fit on any workbench.
Specifications:
- Vertical resolution 14 bit
- Frequency range 1 µHz - 60 MHz
- Frequency resolution 1 µHz
- Number of channels 2
- Sample rate 200 MSa/s
- Maximum waveform length 4k points
- Amplitude range ≤10 MHz: 1 mVpp - 10 Vpp
- ≤60 MHz: 1 mVpp - 5 Vpp
- Output Precision ± (3% + 2 mVpp)
- Display 4.3" (480 x 272) color LCD
- Output impedance 50 Ω
- Output signals Sine, Square, Pulse, Ramp, Noise, DC, Arbitrary
- Modulation functions AM, FM, PM, FSK
- Connectivity USB
- Dimensions 172 x 90 x 68 mm
- Weight 0.33 kg
Package Includes:
1 x UNI-T UTG962E function generator
