UNI-T UTD2202CM DIGITAL STORAGE OSCILLOSCOPE in Pakistan
SKU:BR3292
Regular price
Rs 0
Regular price
Rs 0
Sale price
Rs 0
Unit price
per
Couldn't load pickup availability

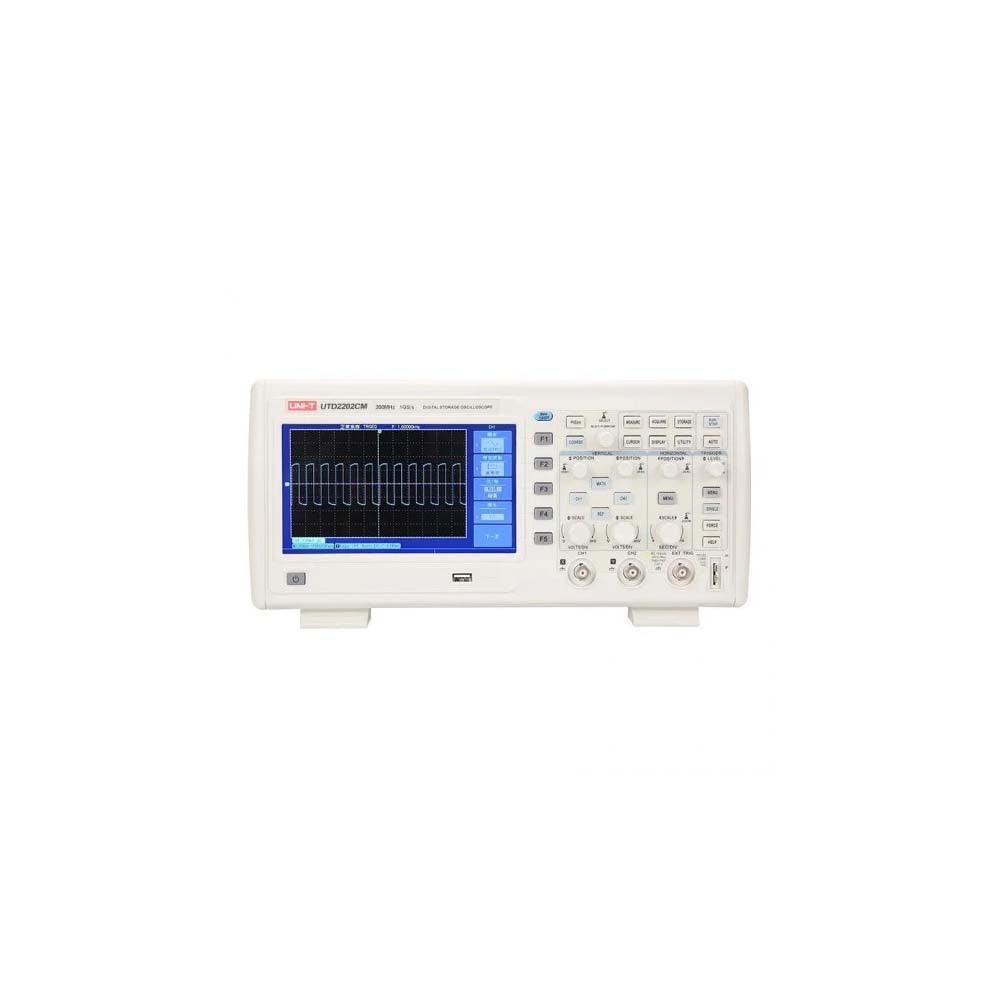

The UNI-T UTD2202CM is a high bandwidth digital oscilloscope that is perfect for use in laboratories to track signal fluctuations over a time period.
Featuring dual inputs, high bandwidth of 200MHz, and a sampling rate of 1GS/s, the UTD2220CM is a quick, responsive unit that relays results accurately through its large-size, 7-inch LCD screen. This screen is also presented in full color, making it easier to pinpoint measurements (particularly when dual channel inputs are being used).
The UTD2202CM also features a large selection of buttons and rotary dials that can be used to finely adjust inputs and the overall functionality of the unit. These include adjustments for acquisition methods, memory depth adjustments, fast ACO, coarse, cursor, and fine adjustments to the scaling/positioning across both horizontal and vertical spectrums.
Features:
- 2 channels,1GS/s sample rate
- 200MHz bandwidth, 32Mpts maximum memory depth
- Waveform acquisition rate is up to 150,000wfms/s
- Vertical sensitivity: 2mV/div~10V/div
- Time-based range: 2ns/div~50s/div
- Trigger modes: edge, pulse, runt, video, slope, alternate
- V/A unit conversion supports user-defined probe ratio
- Customized AUTO, fast captures the signals
- Supports Y-T and X-Y mode at the same time, can observe Lissajous waveform
- Various frequency calibration signals: 100Hz/1kHz/10kHz
- 34 kinds of auto measurements
- Button lock: can lock or unlock any button on the device, and the code can be set to avoid random alternation
- Optional LA module
- Standard interfaces: USB Host, USB Device, Pass/Fail
- 7-inch TFT LCD, WVGA (800*480)
Package Includes:
1 x UNI-T UTD2202CM DIGITAL STORAGE OSCILLOSCOPE
Industryparts.pk is the Best Online Shopping website for UNI-T UTD2202CM DIGITAL STORAGE OSCILLOSCOPE. Here you get UNI-T UTD2202CM DIGITAL STORAGE OSCILLOSCOPE at a reasonable price in Karachi, Lahore, Islamabad, Rawalpindi, Peshawar, Quetta, Multan, and all over Pakistan.
