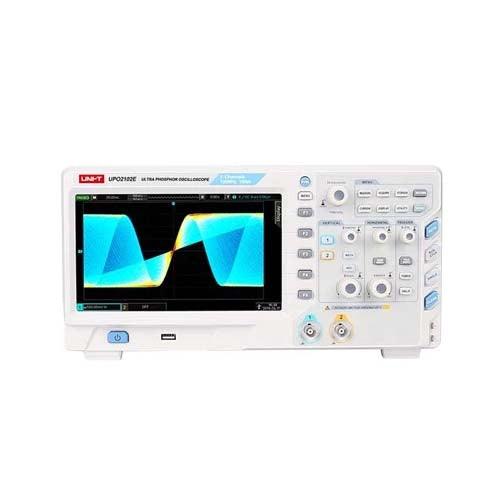

UNI-T UPO2102E 100MHz Ultra Phosphor Oscilloscope in Pakistan

Regular price Rs 73,150
Regular price Rs 75,000 Sale price Rs 73,150
Sale Sold out
BR3291

The UPO2102E oscilloscope is a digital oscilloscope with Ultra Phosphor technology from the UPO2000E series. The UPO2102E oscilloscope offers 2 channels with the same characteristics. It is also equipped with a sampling rate of 1 GS/s. This is amply sufficient for a bandwidth that is 100 MHz (unlike the lower versions of UPO2072CS, UPO2074CS, UPO2072E, and UPO2074E, which are only up to 70 MHz). It is a multifunctional, high-performance oscilloscope that is easy to use, with very good technical specifications. It features an 800 x 480-pixel display. Supports USB storage and PC communication via Plug and play USB. Compared to the previous version UPO2102CS differs in new software (firmware).

  • automatic measurement of many parameters
  • mathematical functions: addition, subtraction, division, multiplication, and FFT
  • simultaneously displays 5 measurements
  • Ultra PHOSPHOR technology

Specifications:

  • Manufacturer: UNI-T
  • Type of oscilloscope: digital
  • Number of channels: 2
  • Band: 100MHz
  • Sampling: 1Gsps
  • Memory record length: 56Mpts
  • Kind of display used: LCD, TFT 8" (800x480)
  • Trigger: falling edge,impulse width,rising-edge,runt,slope,timeout,video signal,window,with delay
  • Trigger source: CH1, CH2, external signal, line
  • Timebase: 5n...50s/div
  • Vertical resolution: 8bit
  • Input coupling: AC, DC, GND
  • Rise time: 3.5ns
  • Input impedance: 1MΩ/21pF
  • Input sensitivity: 1mV/div...20V/div
  • Conform to the norm: EN61010 100V CAT II, EN61010 300V CAT I
  • Weight: 3.5kg
  • Dimensions: 336x164x108mm

Package Includes:

1 x UNI-T UPO2102E 100MHz Ultra Phosphor Oscilloscope

Industryparts.pk is the Best Online Shopping website for UNI-T UPO2102E 100MHz Ultra Phosphor Oscilloscope. Here you get UNI-T UPO2102E 100MHz Ultra Phosphor Oscilloscope at a reasonable price in Karachi, Lahore, Islamabad, Rawalpindi, Peshawar, Quetta, Multan, and all over Pakistan.
