SCR Voltage Regulator ZKG-2000 in Pakistan

3 total reviews

Regular price Rs 3,700
Regular price Sale price Rs 3,700
Sale Sold out
BR3033

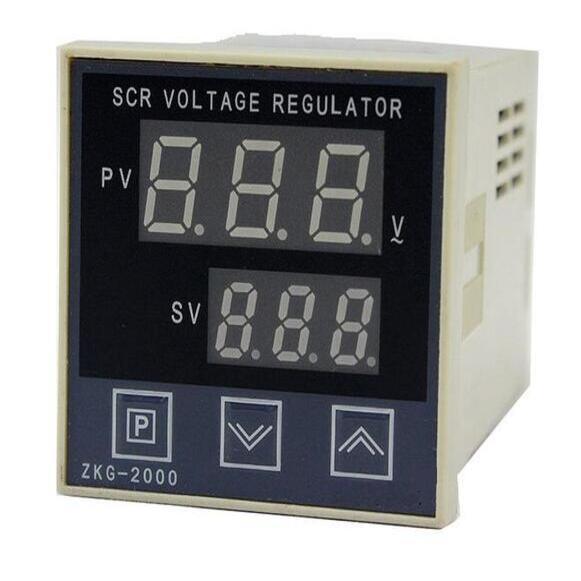

Digital SCR voltage regulator „ZKG-2000 series“ based on the single-chip computer as the core is designed to adjust load voltage continuously by a phase-shift trigger, which is fit for temperature control of forming machine or other mechanical equipment. Due to the use of deep voltage negative feedback, the „ZKG-2000 series“ have exceptional stabilized voltage property, well linearity control function, and can minimize the effects of electric network fluctuation. ZKG-2000 series have a built-in LED that can display output voltage. This new design has special advantages, such as high accuracy, good shock-resistant, good reliability, strong anti-interference ability, small overall dimensions, lightweight, clear reading, no parallax, remote viewing result so on. ZKG-2000 series have pushbutton switches that are operationally simple and reliable.

Specifications:

  • Amplitude:  3V
  •  Width: 50ms
  • Maximum Conduction Angle of Phase-Shift Trigger:  Not less than 150
  • Temperature 0~150 oC
  • Voltage : 220V ± 15%
  • Frequency: 50Hz/60Hz
  • Input power: Nearly 3W
  • Overall Dimensions: 48x48x90 (mm)
  • Opening size: 45x45 (mm)

Industryparts.pk is the Best Online Shopping website for SCR Voltage Regulator ZKG-2000 in Pakistan. We deliver in Karachi, Lahore, Islamabad, Rawalpindi, Peshawar, Quetta, Multan, and all over Pakistan.

Package Include:

   1 x SCR Voltage Regulator ZKG-2000

SCR Voltage Regulator ZKG-2000 in Pakistan

Description

Digital SCR voltage regulator „ZKG-2000 series“ based on the single-chip computer as the core is designed to adjust load voltage continuously by a phase-shift trigger, which is fit for temperature control of forming machine or other mechanical equipment. Due to the use of deep voltage negative feedback, the „ZKG-2000 series“ have exceptional stabilized voltage property, well linearity control function, and can minimize the effects of electric network fluctuation. ZKG-2000 series have a built-in LED that can display output voltage. This new design has special advantages, such as high accuracy, good shock-resistant, good reliability, strong anti-interference ability, small overall dimensions, lightweight, clear reading, no parallax, remote viewing result so on. ZKG-2000 series have pushbutton switches that are operationally simple and reliable.

Specifications:

  • Amplitude:  3V
  •  Width: 50ms
  • Maximum Conduction Angle of Phase-Shift Trigger:  Not less than 150
  • Temperature 0~150 oC
  • Voltage : 220V ± 15%
  • Frequency: 50Hz/60Hz
  • Input power: Nearly 3W
  • Overall Dimensions: 48x48x90 (mm)
  • Opening size: 45x45 (mm)

Industryparts.pk is the Best Online Shopping website for SCR Voltage Regulator ZKG-2000 in Pakistan. We deliver in Karachi, Lahore, Islamabad, Rawalpindi, Peshawar, Quetta, Multan, and all over Pakistan.

Package Include:

   1 x SCR Voltage Regulator ZKG-2000

SCR Voltage Regulator ZKG-2000 in Pakistan
