Incremental rotary encoders translate rotational movement into electrical signals for more precise control of automated systems. Unlike absolute encoders that measure the angle, incremental encoders produce alternating high and low pulses as rotation occurs, which may indicate the speed and direction of the rotating object.

Specifications:

• Model E6B2-CWZ1X 2500P/R 2M
• Diameter 40 mm dia.
• Power supply voltage 5 VDC 5% ripple (p-p) 5% max.
• Current consumption 160 mA max.
• Resolution 100 P/R
• Inrush current Approx. 9 A (0.3 ms)
• Output phases A, -A, B, -B, Z, and -Z
• Control output Output type Line driver output
• Output voltage Vo: 2.5 V min.
• Vs: 0.5 V max
• Load current High level (Io): -20 mA
• Low level (Is): 20 mA
• Starting positional point Supported
• Max. response frequency 100 kHz
• Phase difference on output 9045 between A and B (1/4 T 1/8 T)
• Rise and fall times of output 0.1 s max. (Cable length: 2 m max., Io = -20 mA, Is = 20 mA)
• Starting torque Room temperature: 0.98 mN.m max.
• Moment of inertia 3 x 10**-7 kg.m**2 max.
• Shaft loading Radial: 30 N
• Thrust: 20 N
• Max. permissible rotation 6000 r/min
• Ambient temperature Operating: -10 to 70℃
• Storage: -25 to 85℃
• Ambient humidity Operating: 35 to 85%
• Storage: 35 to 85%
• Insulation resistance Between charged parts and the case: 20 MΩ min. (at 500 VDC)
• Dielectric strength Between authorized parts and the subject: 500 VAC 50/60 Hz 1 min
• Vibration resistance Destruction: 10 to 500 Hz, 2-mm or 150 m/s**2 double amplitude for 11 min 3 times each in X, Y, and Z directions
• Shock resistance Destruction: 1000 m/s**2 for 3 times each in X, Y, and Z directions
• Degree of protection IEC: IP50
• Connection method Pre-wired models
• Material Case: ABS
• Main: Aluminum
• Shaft: SUS420J2
• Weight Package: Approx. 100 g
• Accessories Instruction manual, Couplings, Hex-head spanner

Package Includes:

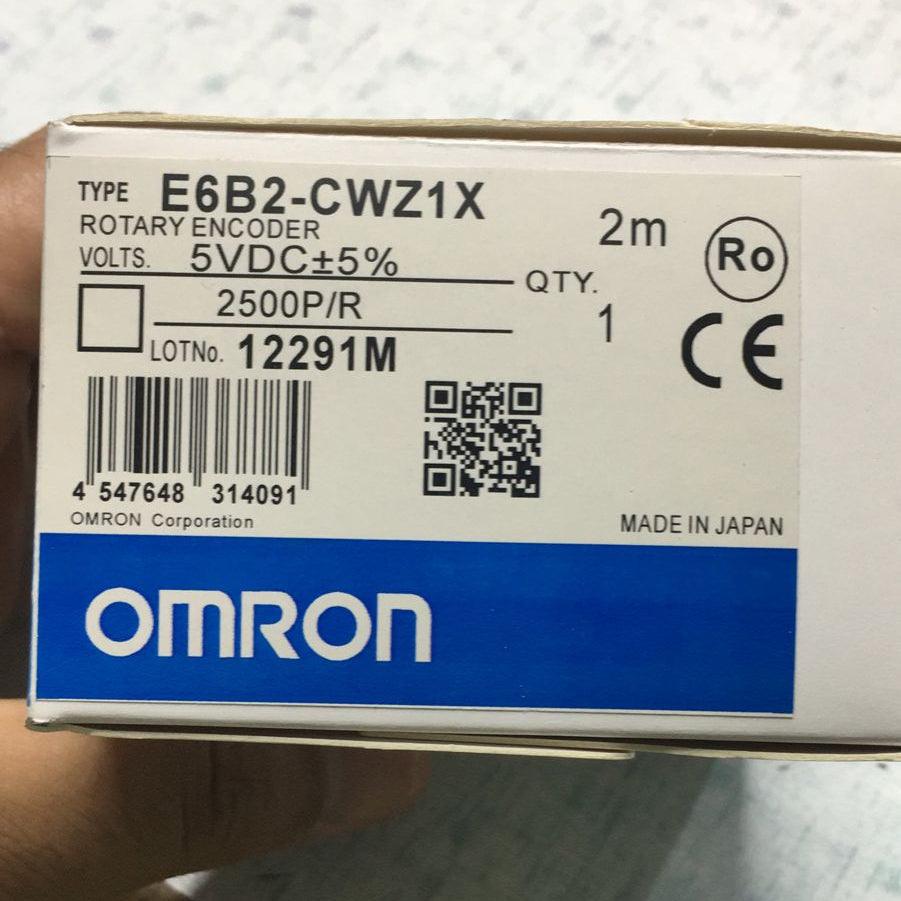

1 x Omron Incremental Rotary Encoder E6B2-CWZ1X
