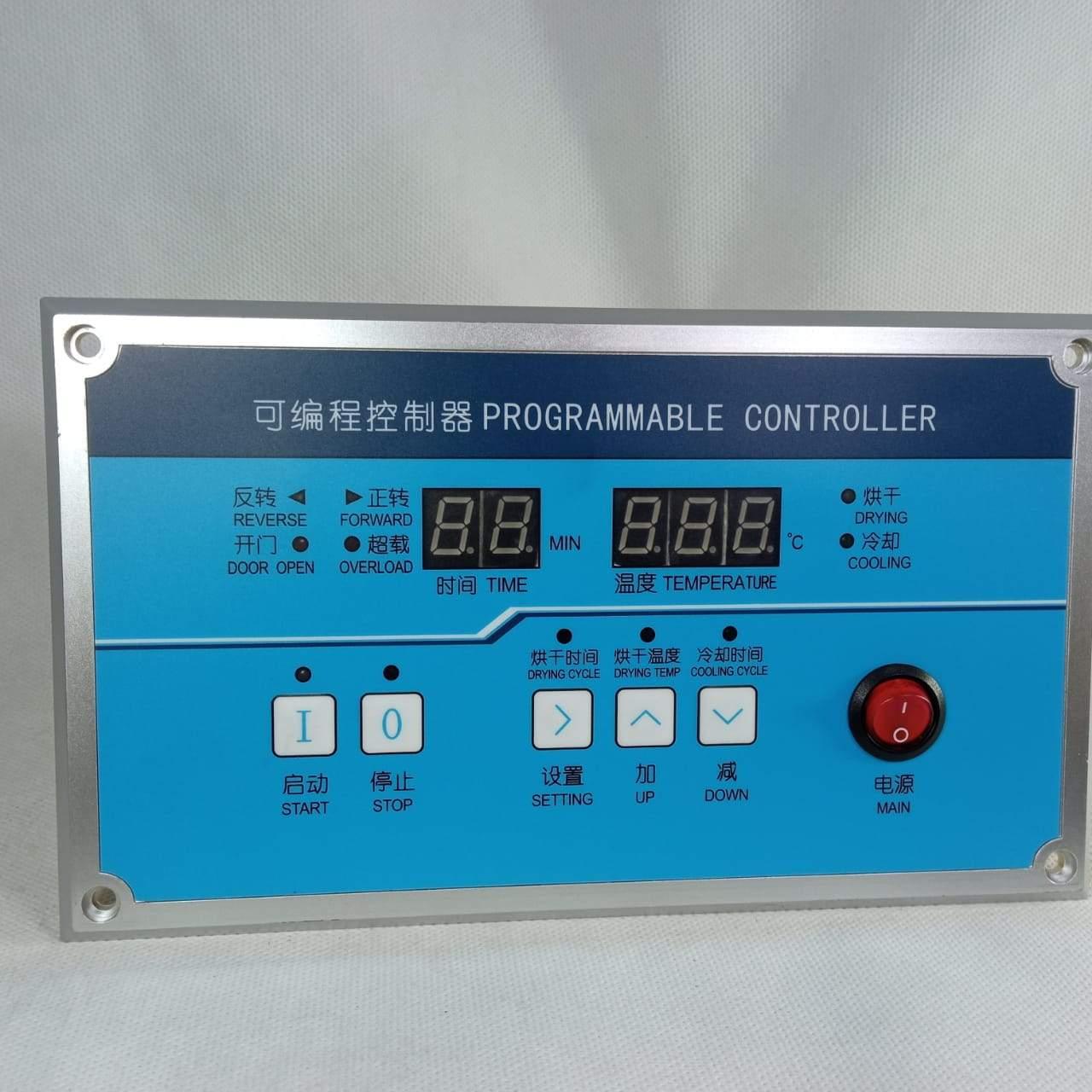

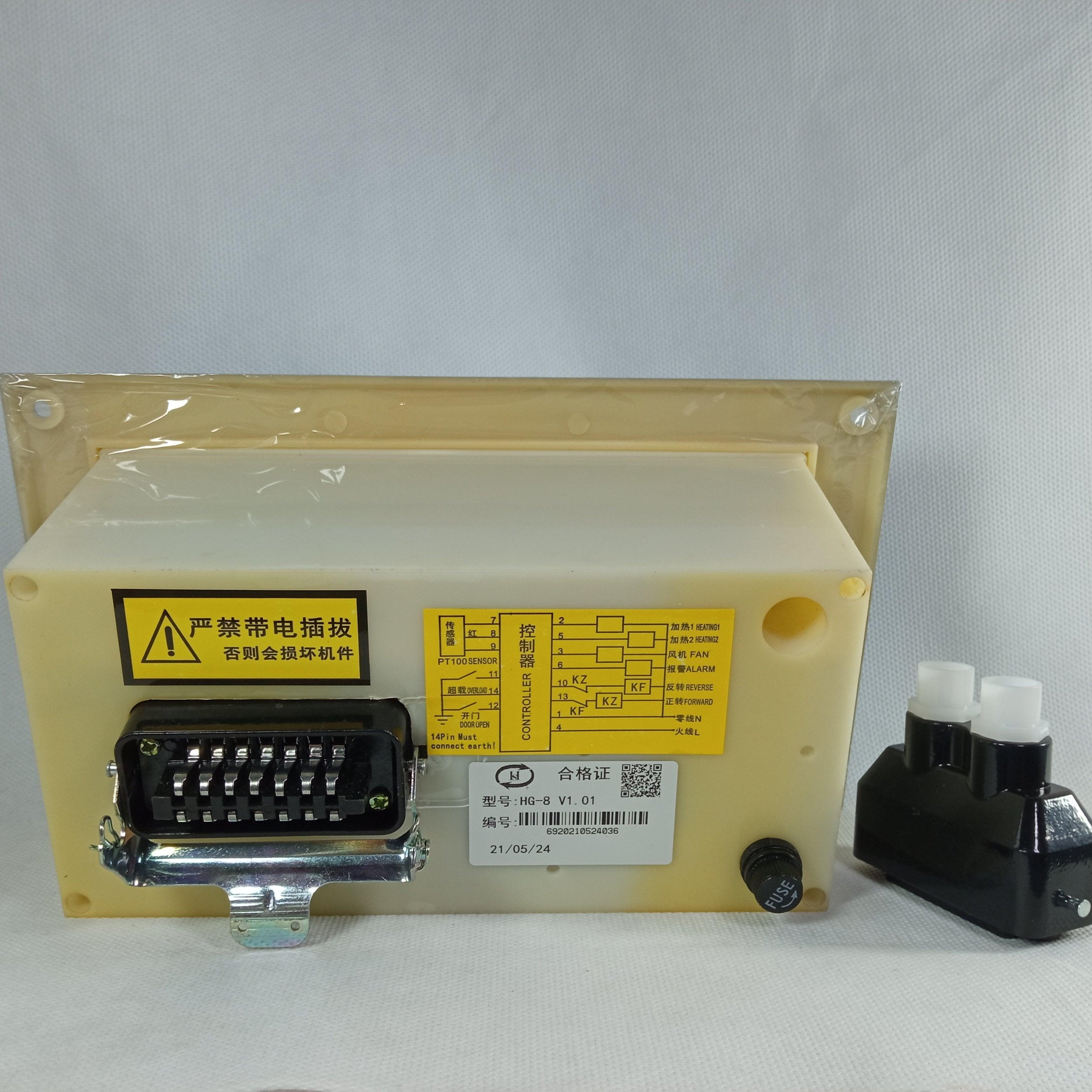

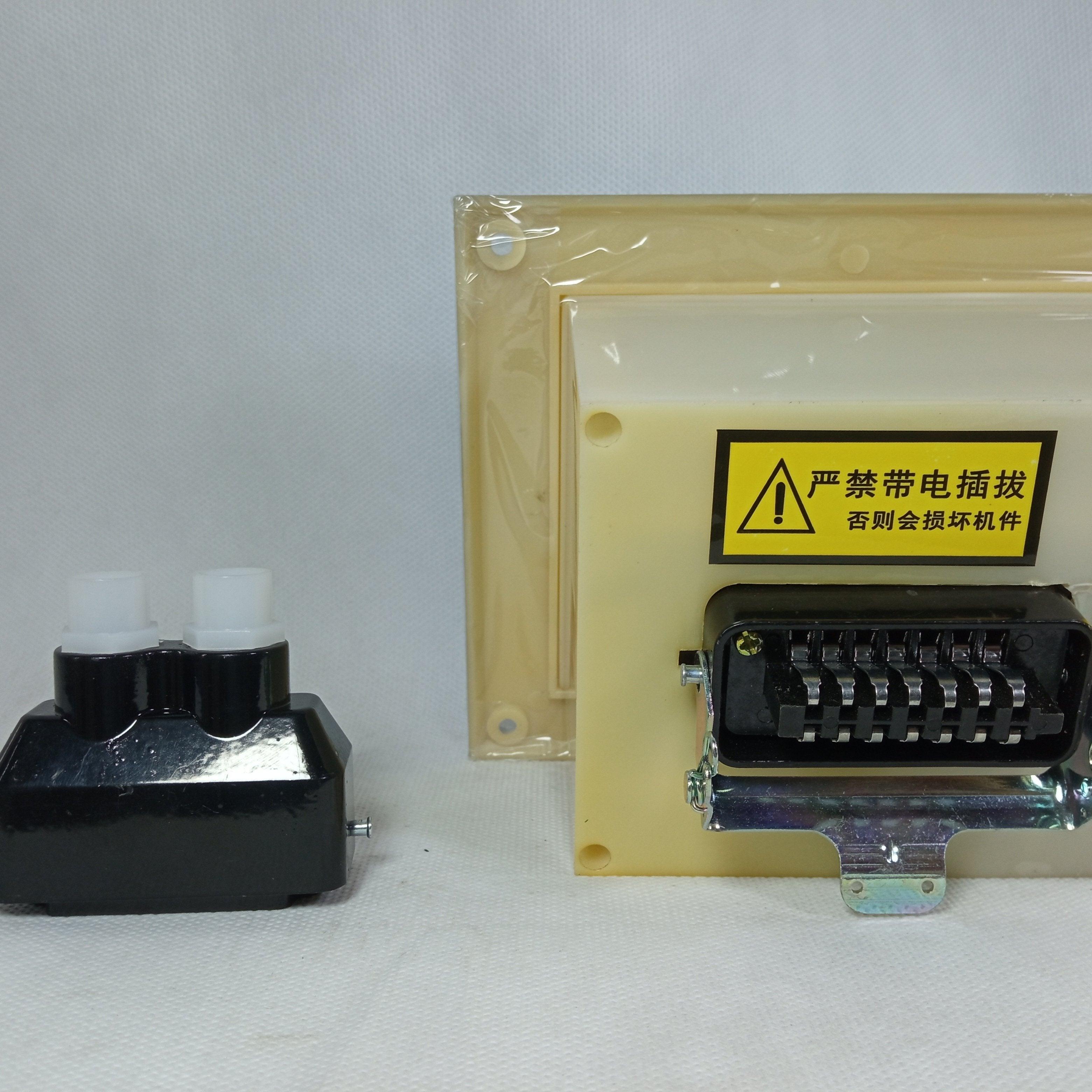

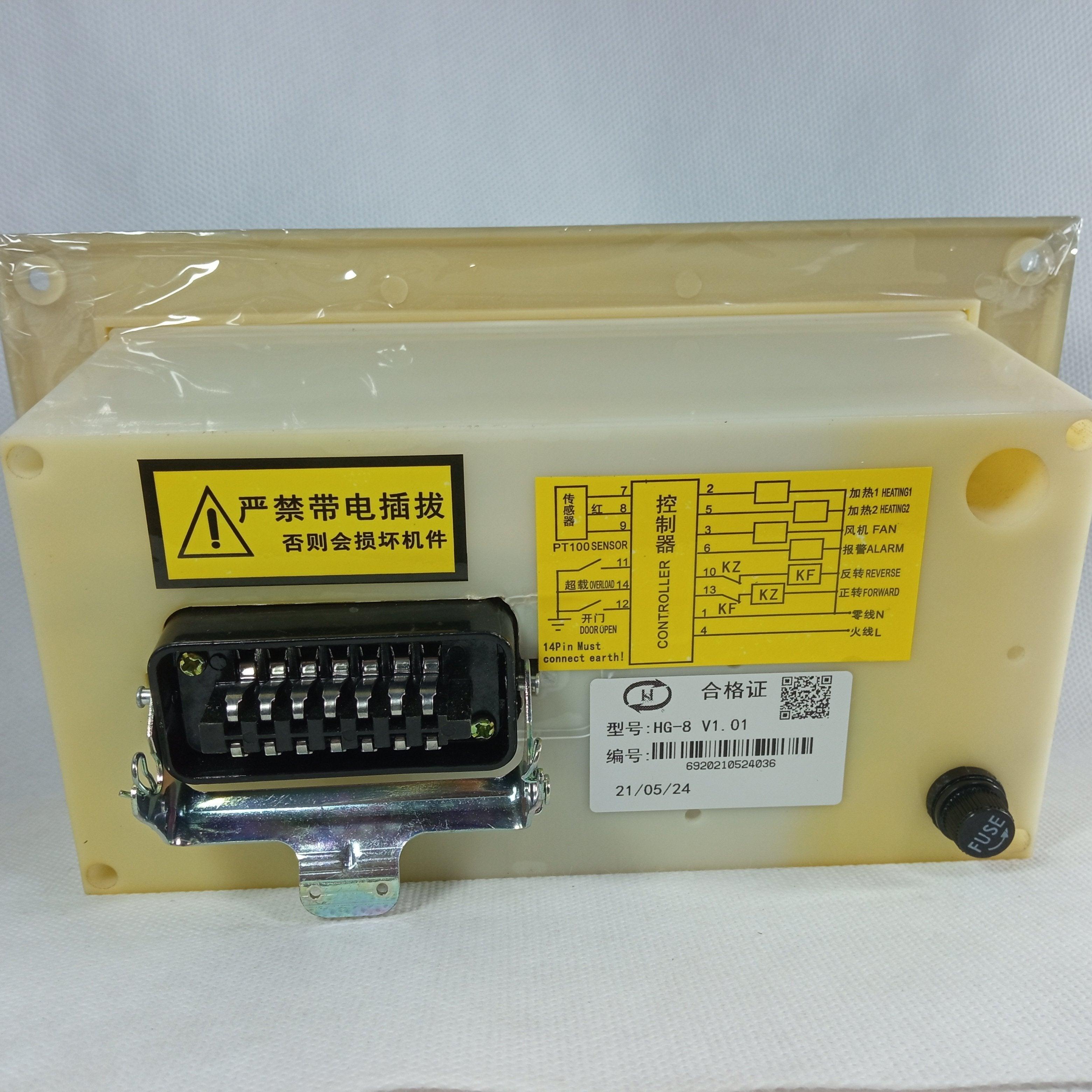

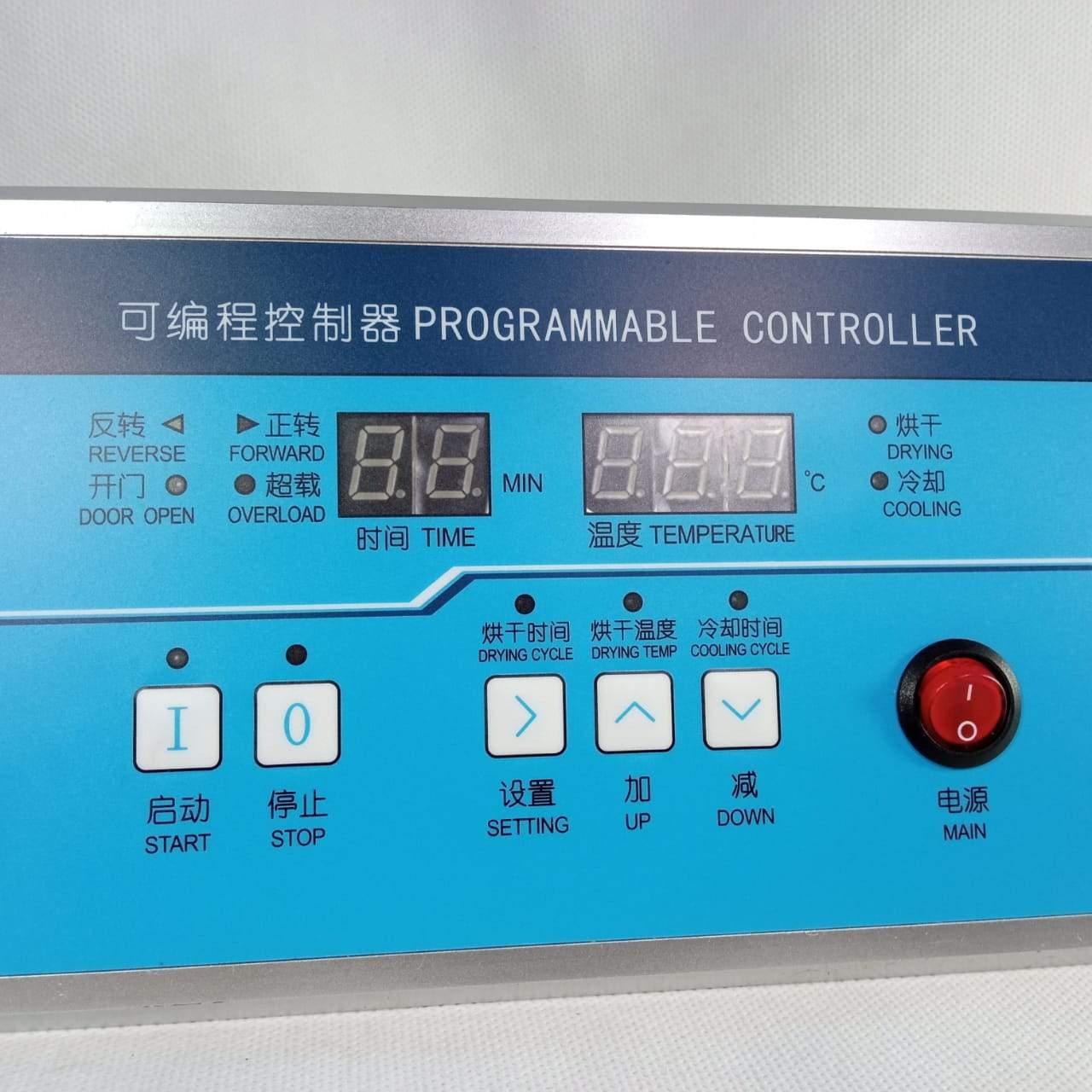

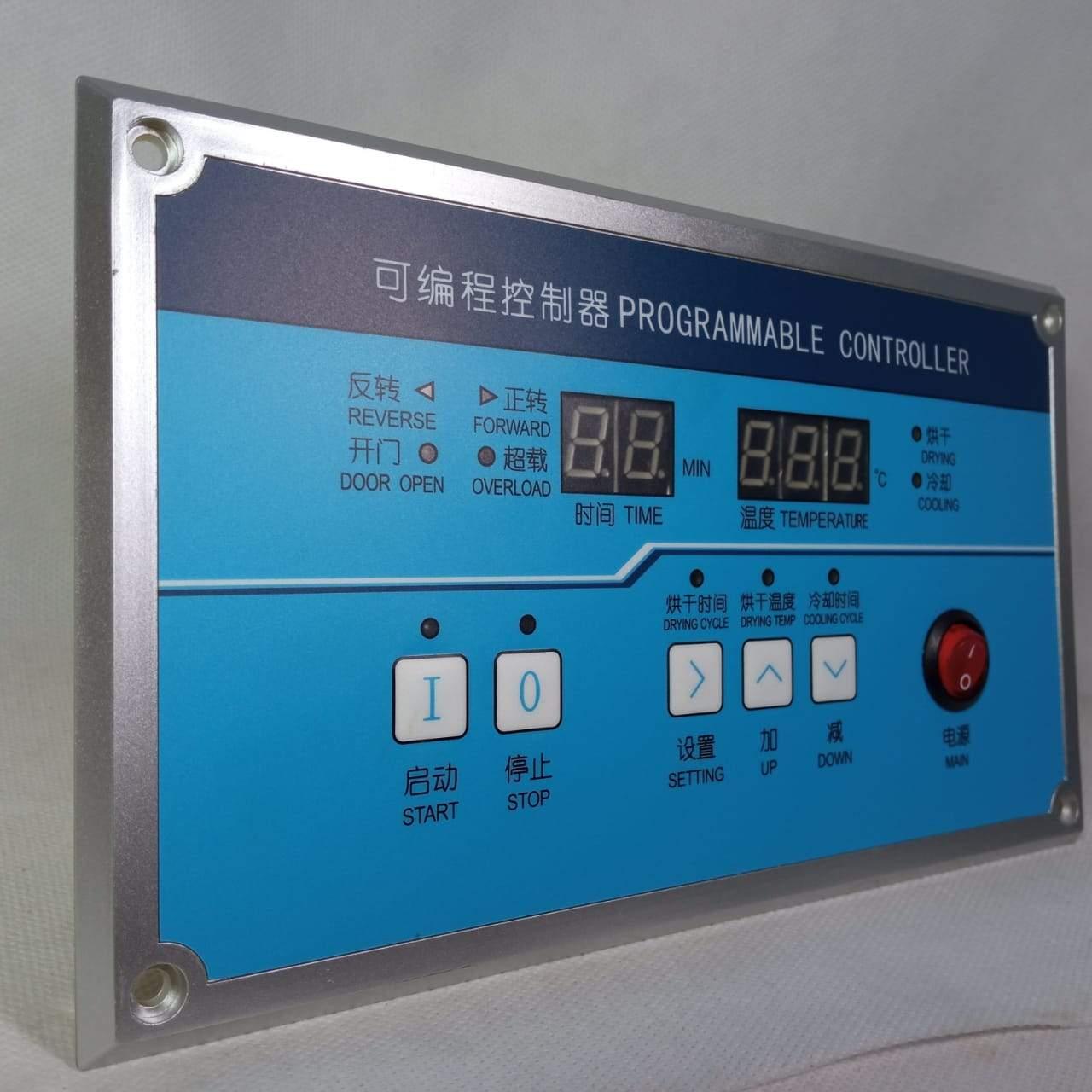

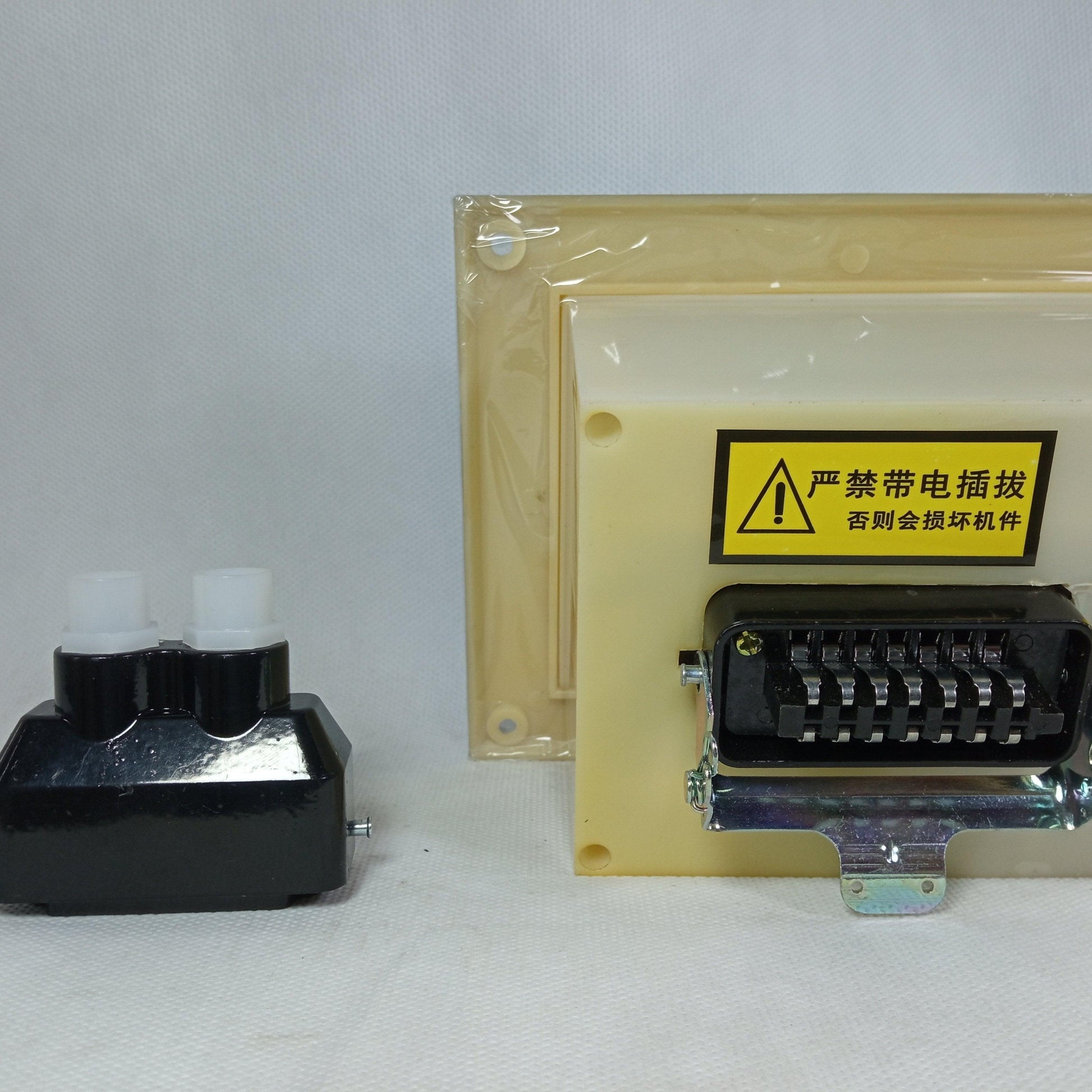

Professional solutions to your Laundry machines. Exact replacement for original controllers. Easily adaptable to any technological or functional innovation in industrial dry cleaning/washing. Low operating costs, energy-saving, and consumption optimization. Fully customized as per customer requirements.

https://youtu.be/WsHPuPBe5kU

Features:

1. Control technology: It adopts an imported touch screen with Intel X86 embedded processing system and Windows operating system.
2.  Display:640×480 pixels 8.4inch high quality imported LCD screen contains all kinds of VAT structure diagrams, valve switches which are visually displayed.
3.  Language: Both Chinese and English are available. You can input the factory name. Process names can be programmed in Chinese.
4.  Storage: It has a larger storage space, which can store hundreds of different processes, each process contains a program with hundreds of steps.
5.  Data protection: It supports multi-level administrator password protections and USB disk backup.
6.  Communication:1-channel RS485/CAN communication interface,1-channel RS422/485 communication interface,1-channel RS232 communication interface,1-channel 10/100M adaptive Ethernet interface, can be connected to the enterprise ERP, or conduct remote services through Ethernet, saving time and cost.
7.  Temperature measuring range:000ºC~153ºC
8. Temperature control range:30ºC~145ºC
9. Temperature control rate:0.1~9.9ºC.
10. Temperature control accuracy: Thermal static±0.5ºC
11.  Switch type or proportional type which controls heating or cooling is optional, with a maximum deviation ≤of 1ºC, display accuracy of 0.1ºC.
12.  Fabric speed control: minimum speed 10m/min, maximum speed 150m/min, control error 5%.
13.  Input signal:4-channel PT100 platinum thermal resistance(for master and sub vat temperature detecting).
14. 2-channel pulse(for flow meter, water meter, control dyeing bath ratio)
15. 7-channel4-20mA analog input(connect with the water level of master-VAT, sub-VAT, dyestuff-VAT, nozzle pressure, PH current signal)
16.  PLC: Maximum, medium, minimum water level switch signal of master VAT, Sub-Vat and dyestuff VAT, main pump failure signal, fabric blocked signal are connecting to PLC by the communication interface.
17.  Output signal:
18. HG-9918: 8-channel 4-20mA analog output, current output for controlling main pump frequency conversion, proportional temperature rise/drop valve, and proportional feeding valve.
19.  PLC: Switch output connects to PLC by communication interface which achieves water intake, water draining, main pump, temperature rise or drop, overflow, washing, warning, and other functions.
20.  Process query: It can record hundreds of processing curves, callings, and 24 hours running processes.
21.  Parameters setting: Parameters setting for water intake, water draining, temperature, and fabric speed control.
22.  Define: All switching values, analogs, and outputs can be customized.
23.  Function characteristic: Precise temperature control, fabric speed control which improves dyeing quality and stability of dyeing machine. It can also calculate power consumption, water, steam, etc.
24.  Power supply: AC100~250V,50Hz power consumption≤40W, operating temperature≤ 50ºC.
25.  Dimension:350(W)×263(H)×100(D)mm3
26.  Size of hole:324(W)×236(H)mm2
27.  Installation method: Embedded

Industryparts.pk is the Best Online Shopping website for HG-8 Washing Machine Controller. Here you get HG-8 Washing Machine Controller at a reasonable price in Karachi, Lahore, Islamabad, Rawalpindi, Peshawar, Quetta, Multan, and all over Pakistan.

Package Includes:

        1 x HG-8 Washing Machine Controller
