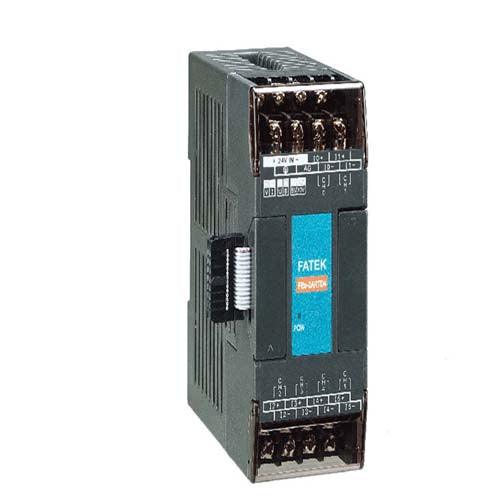

FBs-2A4RTD FATEK PLC Module in Pakistan

1 total reviews

Regular price Rs 1
Regular price Rs 0 Sale price Rs 1
Sale Sold out
BR1520-HL-

FBs-2A4RTD, FATEK PLC module in Pakistan BR1520

Description

FBs-2ARTD4 is one of the Analog and Temperature mixed input modules of FATEK FBs series PLC. For analog input, it provides 2 channels A/D input with 12 or 14-bit effective resolution. Base on the different jumper settings it can measure the varieties of current or voltage signal. The reading value is represented by a 14-bit value no matter the effective resolution is set to 12 or 14 bit The output code also can be configured as unipolar or bipolar which makes the relation of input code and real input signal more intuitive. In order to filter out the field noise imposed on the signal, it also provides the average of the sample input function.

Features:

 For temperature measure, It provides 4 channels of  RTD temperature measurement input with 0.1 or 1 ?  ? ? resolution. The scan rate for 0.1 resolution is 2  second. This module provides a three-wire connection  compensate the resistance introduced by the wiring.  All the optional features of this module are software  configurable, there are no hardware jumpers or  switches for user to setup.    1520

Specifications:

FBs-2A4RTD

Analog input (AI) points

2 points / 14-bit

Temperature measurement input points

4 points (RTD)

Analog input specification

Same as FBs-6AD

Temperature input specification

Same as FBs-6RTD

Power consumption

24VDC -15%/+20%,2W max.

Wiring mechanism

7.62 mm fixed terminal block

Description

FBs-2A4RTD, FATEK PLC module in Pakistan BR1520

Description

FBs-2ARTD4 is one of the Analog and Temperature mixed input modules of FATEK FBs series PLC. For analog input, it provides 2 channels A/D input with 12 or 14-bit effective resolution. Base on the different jumper settings it can measure the varieties of current or voltage signal. The reading value is represented by a 14-bit value no matter the effective resolution is set to 12 or 14 bit The output code also can be configured as unipolar or bipolar which makes the relation of input code and real input signal more intuitive. In order to filter out the field noise imposed on the signal, it also provides the average of the sample input function.

Features:

 For temperature measure, It provides 4 channels of  RTD temperature measurement input with 0.1 or 1 ?  ? ? resolution. The scan rate for 0.1 resolution is 2  second. This module provides a three-wire connection  compensate the resistance introduced by the wiring.  All the optional features of this module are software  configurable, there are no hardware jumpers or  switches for user to setup.    1520

Specifications:

FBs-2A4RTD

Analog input (AI) points

2 points / 14-bit

Temperature measurement input points

4 points (RTD)

Analog input specification

Same as FBs-6AD

Temperature input specification

Same as FBs-6RTD

Power consumption

24VDC -15%/+20%,2W max.

Wiring mechanism

7.62 mm fixed terminal block
