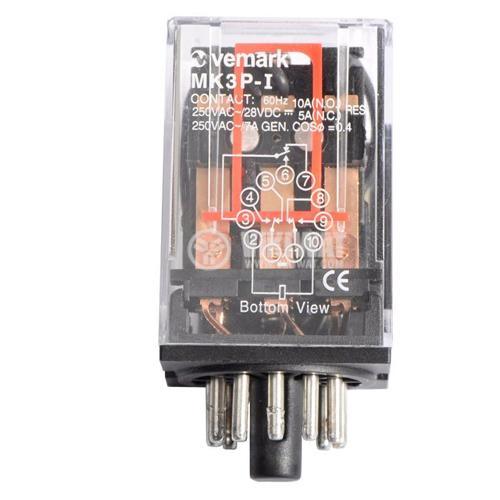

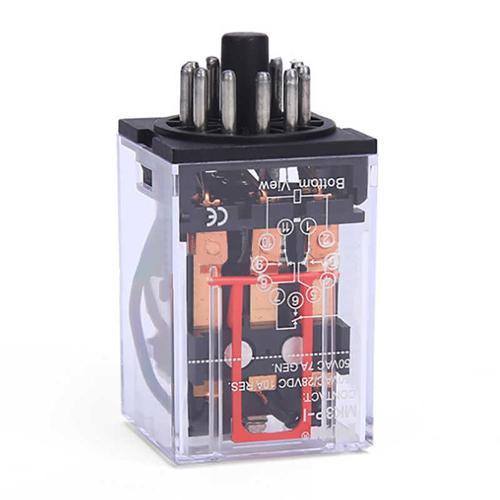

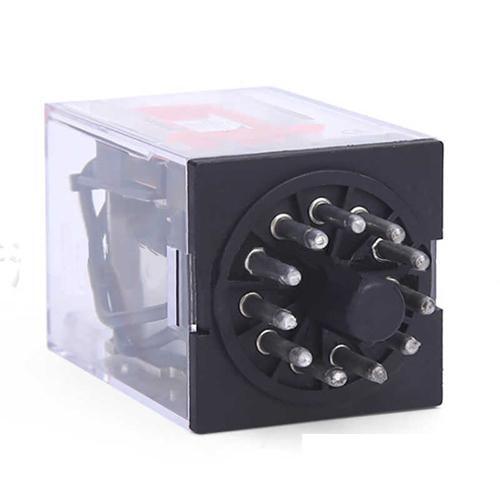

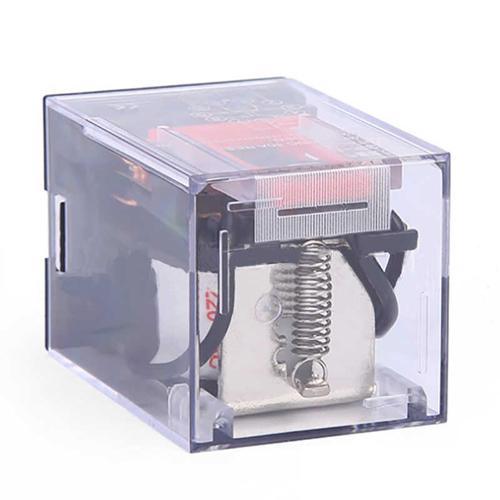

Electromagnetic relay MK3P-1, coil 110VAC, 250VAC/10A, 3NO+3NC

Regular price Rs 450
Regular price Rs 480 Sale price Rs 450
Sale Sold out
BR4921

Electromagnetic relay MK3P-1, coil 110VAC, 250VAC/10A, 3NO+3NC in Pakistan BR4921

Description

Electromagnetic relays are those relay which operates on the principle of electromagnetic attraction. It is a type of a magnetic switch which uses the magnet for creating a magnetic field. The magnetic field then uses for opening and closing the switch and for performing the mechanical operation.

 Specifications:

  • model - MK3P-1;
  • rated coil voltage - 110 VAC;
  • contact system rated voltage - 250 VAC; 28 VDC;
  • contacts load capacity - 10 A (NO), 5 A (NC);
  • contact load capacity (inductive load) - 7 A;
  • power factor (inductive load) - 0.4 A;
  • contacts configuration - 3PDT – 3NO+3NC;
  • number of pins - 11;
  • mounting -  relay socket 11 pins;
  • contacts resistance - < 230 mOhm;
  • dimensions - 34x34x52 mm;
  • sockets - PF113A, PF113A-E, US-11

Best Online Shopping Website for Electromagnetic relay MK3P-1, coil 110VAC, 250VAC/10A, 3NO+3NC. Here you get Electromagnetic relay MK3P-1, coil 110VAC, 250VAC/10A, 3NO+3NC at a reasonable price in Karachi, Lahore, Islamabad, Rawalpindi, Peshawar, Quetta, Multan, and all over Pakistan.

Package Includes:

1 x Electromagnetic relay MK3P-1, coil 110VAC, 250VAC/10A, 3NO+3NC
