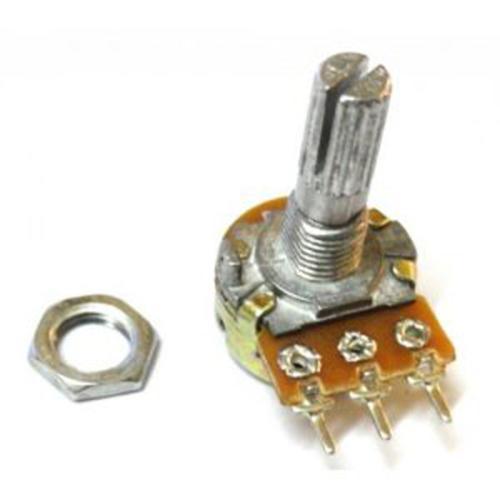

10k Variable Resistor Potentiometer Volum Type

10k Variable Resistor Potentiometer Volum Type in pakistan BR1918



Discription:

 A variable resistor is the most significant component found in many electrical devices for controlling the tone, bass as well as volume.    This is a 16mm bodied Potentiometer with Log Carbon Track.  It has a 6mm splined shaft, length 8mm, and overall height of 24mm  The shaft has 300 degree rotation and M7 bushing  Pin pitch is 5mm

Specification:

 Max. Voltage: 200V  Power: 0.15W  Types: Volume  Pin: Three

Packages Include:

 1 x 10k Variable Resistor Potentiometer Volum Type
