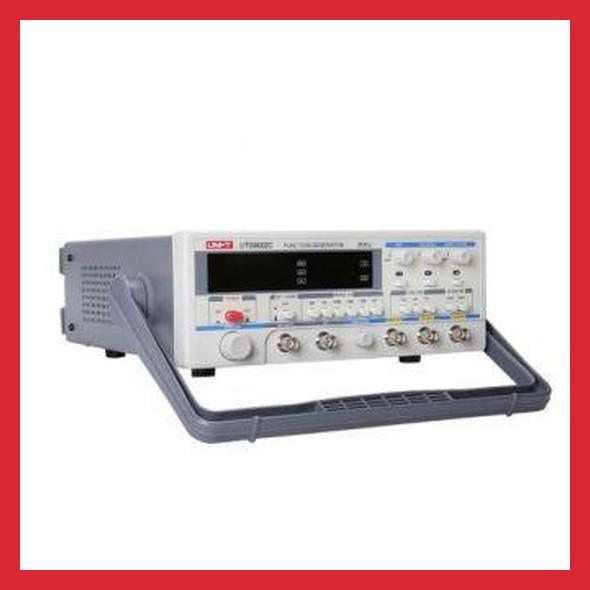

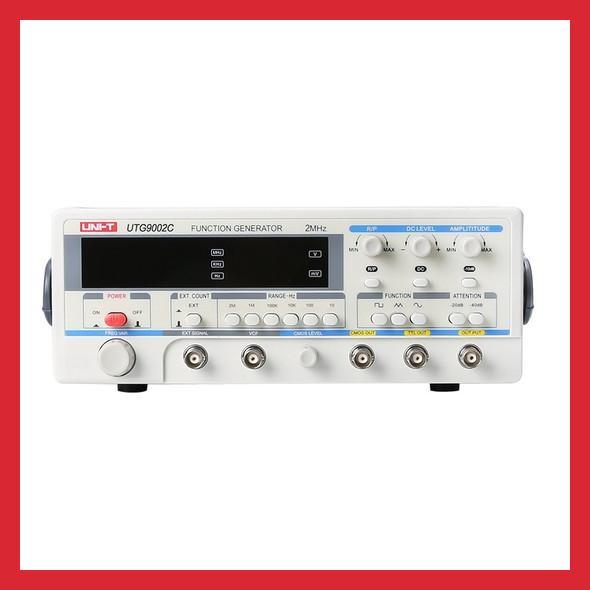

UTG9002C Function Generator, Waveform, Wave Generator in Pakistan
SKU:BR8001
Couldn't load pickup availability
UTG 9000C series function generators can produce sine, square, triangle, pulse and saw tooth waveforms etc. The frequency range is wide and the highest value can be 10MHz. Manufactured by UNI-T, the DC level, and duty ratio are adjustable. Some other features are VCF, TTL level output, and display of output signal, amplitude and frequency at the same time. They can simply be used as a frequency meter in outside testing. With excellent amplitude and frequency characteristics and the rise time of square waveform≤50nS, the electrical specifications reach the international standards of the same type products. They are exquisite and can be widely used in factories, schools and R & D institutions.
Features:
- Model UTG9002C
- Waveforms Sine, Square, Triangle, Pulse, Sawtooth etc.
- Amplitude
- Range (no load) from 1mVpp to 20Vpp
- Accuracy ≤±5% (1KHz Triangle 20Vp-p)
- Resolution 0.1mV
- Frequency
- Range from 0.2Hz to 2MHz
- Accuracy ≤±1%
- Resolution 1mHz
- Output Power 2Wp-p
- Output Impedance 50Ω
- Attenuator 20dB + 40dB
- DC Offset from -10V to +10V
- Display Frequency: 4-digits-LED, Amplitude: 3-digits-LED
- Duty Cycle from 10% to 90%
- Distortion of Sine ≤2%
- Rise time of Square ≤50ns
- VCF 100:01:00
- Frequency Counter
- Frequency Range from 0.2Hz to 2MHz
- Amplitude Range from 0.5Vp-p to 5Vp-p
- Input Impedance 10kΩ
- Device Characteristics
- Power AC 220V，50Hz
- Product Color White and Gray
- Product Net Weight 2.5 Kg
- Product Size 320mm×240mm×100mm
- Standard Accessories BNC to Alligator Clips, Power Cord
- Standard Individual Packing Gift Box, English Manual
- Standard Quantity Per Carton 6 Pcs
- Standard Carton Measurement 660mm×410mm×600mm
- Standard Carton Cross Weight 18 Kg
Industryparts.pk is the Best Online Shopping website for UTG9002C Function Generator, Waveform, Wave Generator. Here you get UTG9002C Function Generator, Waveform, Wave Generator at a reasonable price in Karachi, Lahore, Islamabad, Rawalpindi, Peshawar, Quetta, Multan, and all over Pakistan.

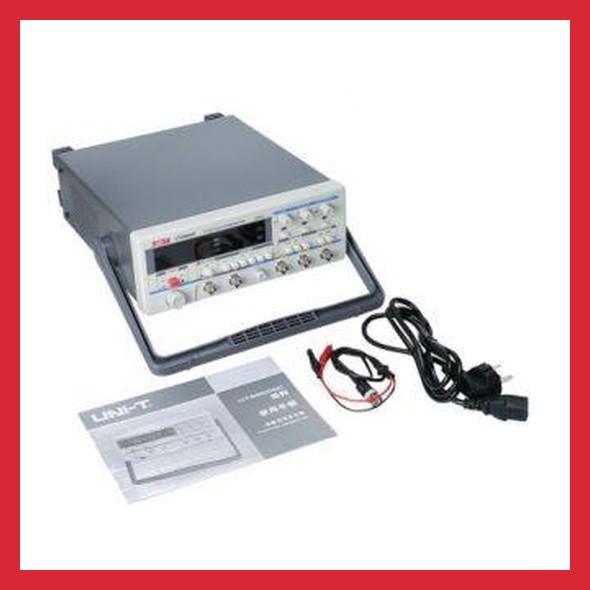

Package includes:
1x Function generator device
