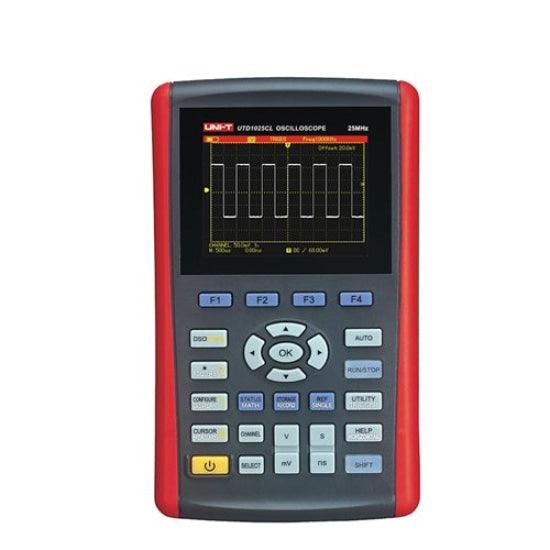

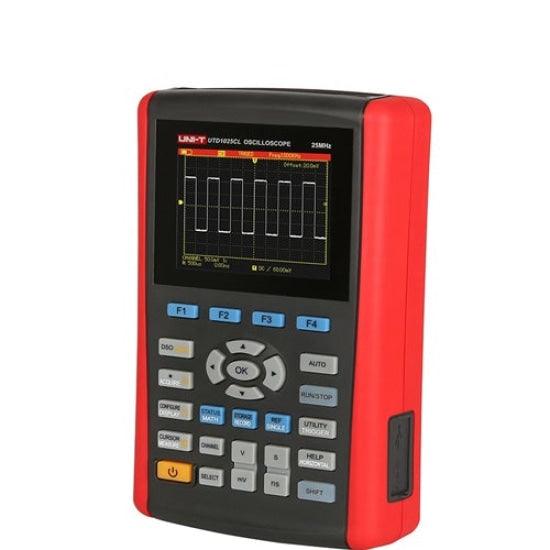

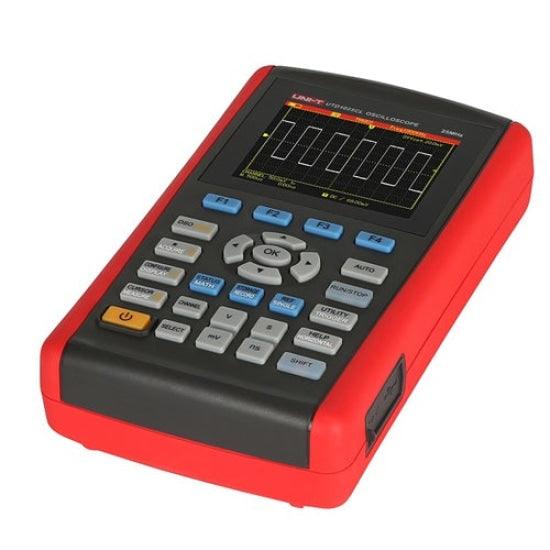

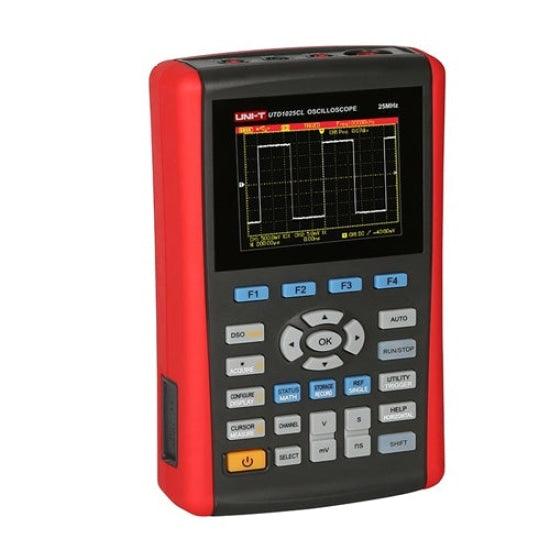

UNI T UTD1025CL Portable Handheld Digital Oscilloscope in Pakistan

SKU:BR1023-W

Regular price Rs 0
Regular price Rs 0 Sale price Rs 0
Sale Sold out

UNI-T UTD1025CL is a single channel lightweight, handheld oscilloscope with 25 MHz bandwidth and 200 MS/s sample rate. UNI-T UTD1025CL handheld digital oscilloscope also performs multimeter measuring functions: AC/DC voltage and current, resistance, capacity, diode, and continuity tests. UTD1025CL series are economical instruments with the functions of oscilloscope and multimeter. They are ergonomic, lightweight, universal instruments designed for engineers.

Features:

  • Fully Auto Scale; Vertical Scale and Time-based automatically adjusted with the signal and without any manual interference.
  • Unique and powerful auto Setup, quick and accurate to set up for signals with any DC component.
  • Wider voltage measuring range; Coupled with 10×probe with attenuation up to 200V.
  • Isolated USB for much safer communication.
  • White and black display for your option, perfect for use outdoors with strong light.
  • Intelligent locator network software update.
  • More than 8 hours of continuous battery operation.

Specifications:

  • Channels: 1
  • Bandwidth: 25MHZ
  • Rise Time: ≤14ns
  • Memory Depth: 12kpts
  • Vertical Sensitivity: 5mV/div~20V/div
  • Time-base Range: 10ns/div~50s/div
  • Storage: Bitmap, Setup, Waveform
  • Trigger Modes: Edge, Pulse, Video, Slope
  • Interface: Mini USB

Multimeter Specifications:

  • DC Voltage (V): 400.0 mV/ 4.000 V/ 40.00 V/ 400.0 V ±(1%+5)
  • AC Voltage (V): 400.0 mV/ 4.000 V/ 40.00 V/ 400.0 V ±(1.2%+5)
  • DC Current (A): 400.0μA/ 4000μA ±(1.2%+5)
  • AC Current (A): 400.0μA/ 4000μA ±(2%+5)
  • (45 Hz~400 Hz): 40.0 mA/ 400mA
  • 10A ±(2.5%+5)
  • Resistance (Ω):
  • 400.0Ω/4.000 kΩ/40.00 kΩ/400.0 kΩ/4.000 MΩ ±(1.2%+5)
  • 40.00 MΩ ±(1.5%+5)
  • Capacitance (F): 51.20 nF/512.0 nF/5.120μF/51.20μF/100μF ±(3%+5)
  • Display Count: 4000

Power:

  1. Lithium Battery: 7.4V 3600mAh
  2. DC Adapter: 100~240V 50/60Hz input, 9V/4A Output
  3. LCD Size: 3.5 Inches TFT LCD, QVGA (320×240)
  4. Colour: Red and Black
  5. Dimension: 199 mm × 118 mm × 49 mm

Packages Include:

1 x UNI T UTD1025CL Portable Handheld Digital Oscilloscope

Industryparts. pk Best Online Shopping website for UNI T UTD1025CL Portable Handheld Digital Oscilloscope. Here you get UNI T UTD1025CL Portable Handheld Digital Oscilloscope at a reasonable price in Karachi, Lahore, Islamabad, Rawalpindi, Peshawar, Quetta, Multan, and all over Pakistan.
