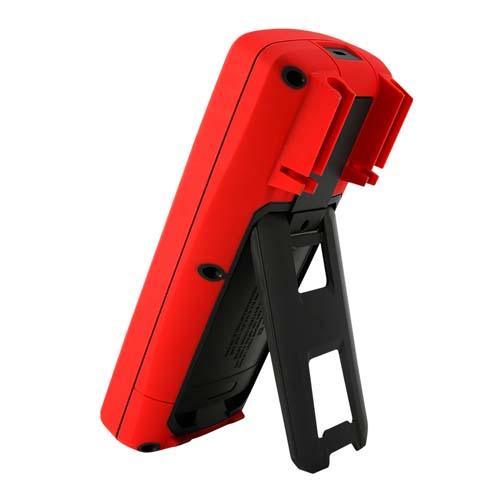

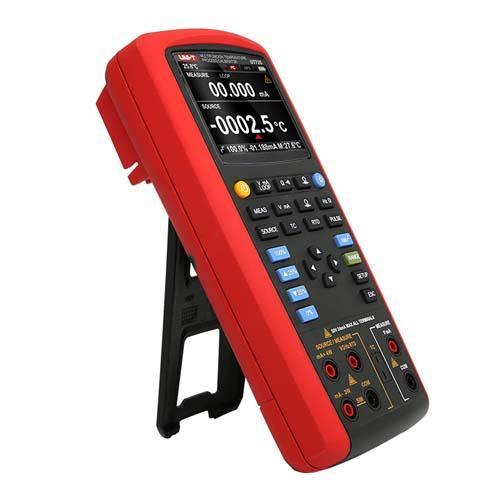

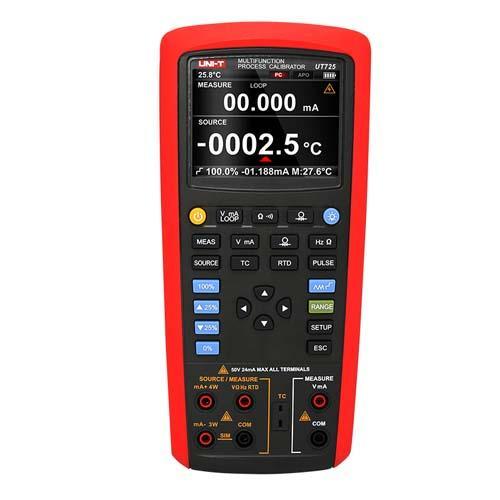

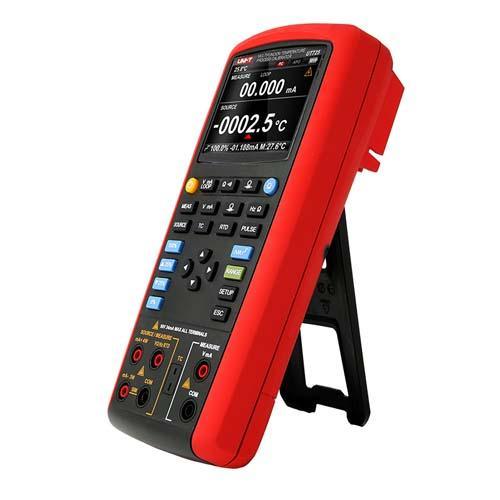

The UT725 multifunction process calibrator combines with temperature process calibrator and loop process calibrator function. You can easily measure and source most of the process parameters: mA, volts, temperature, frequency, ohms in one tool.

Features:

1.  Step/ramp functions
2.  Source and measure accuracy up to 0.02%
3.  Rechargeable battery
4.  Contrast adjustment
5.  Auto power off (Time adjustable)
6.  Stores and recalls setups
7.  USB communication
8.  Simultaneously measure and output different process signals in real-time
9.  Pressure measure with specified pressure modules, and sourcing pressure
10.  Provides 24V loop power to the transmitter while conducting mA current measurement at the same time

Specifications:

•  Type Range Accuracy
• Certificates CE, RoHS
• Measurement
• DC voltage (V) 50mV/500mV/50V ±(0.02%+2)
• DC current (mA) 20mA ±(0.02%+2)
• Loop current (mA) 20mA ±(0.02%+2)
• Resistance (Ω) 500Ω/5000Ω ±(0.05%+10)
• Frequency (Hz) 100Hz/1kHz/10kHz/100kHz ±(0.01%+1)
• Thermocouples R,S,K,E,J,T,N,B,L,U,XK,BP
• RTDs Pt100/Pt200/Pt500/Pt1000/Cu10/Cu50/Cu100/Pt100-392/Pt100-JIS/Ni120
• Continuity test √
• Pulses (Hz) 1~15kHz (1~100000 periods)
• Source accuracy
• DC voltage (V) 100mV/1000mV/10V ±(0.02%+10)
• DC current (A) 20mA/20mA(SIM) ±(0.02%+2)
• Resistance (Ω) 400Ω/4000Ω/40kΩ ±(0.05%+10)
• Frequency (Hz) 200Hz/2000Hz/20kHz/100kHz ±(0.01%+1)
• Pulses (Hz) 100Hz/1kHz/10kHz ±1
• Thermocouples R,S,K,E,J,T,N,B,L,U,XK,BP
• RTDs Pt100-385/Pt100-392/Pt100-JIS/Pt200-385/P500-385/Pt1000-385/Cu10/Cu50/Cu100/Ni120
• Display count 20000
• Operation temperature -10°C~55°C
• GENERAL CHARACTERISTICS
• Power 1.2V x 6 AA rechargeable battery
• Product net weight 650g
• Product size 195mm x 95mm x 58mm
• Standard accessory Test lead, USB cable, power adapter, temperature probe, English manual

Industryparts.pk is the Best Online Shopping website for UNI-T UT725 Multifunction Process Calibrator. Here you get UNI-T UT725 Multifunction Process Calibrator at a reasonable price in Karachi, Lahore, Islamabad, Rawalpindi, Peshawar, Quetta, Multan, and all over Pakistan.

Package Includes:

1 x UNI-T UT725 Multifunction Process Calibrator
