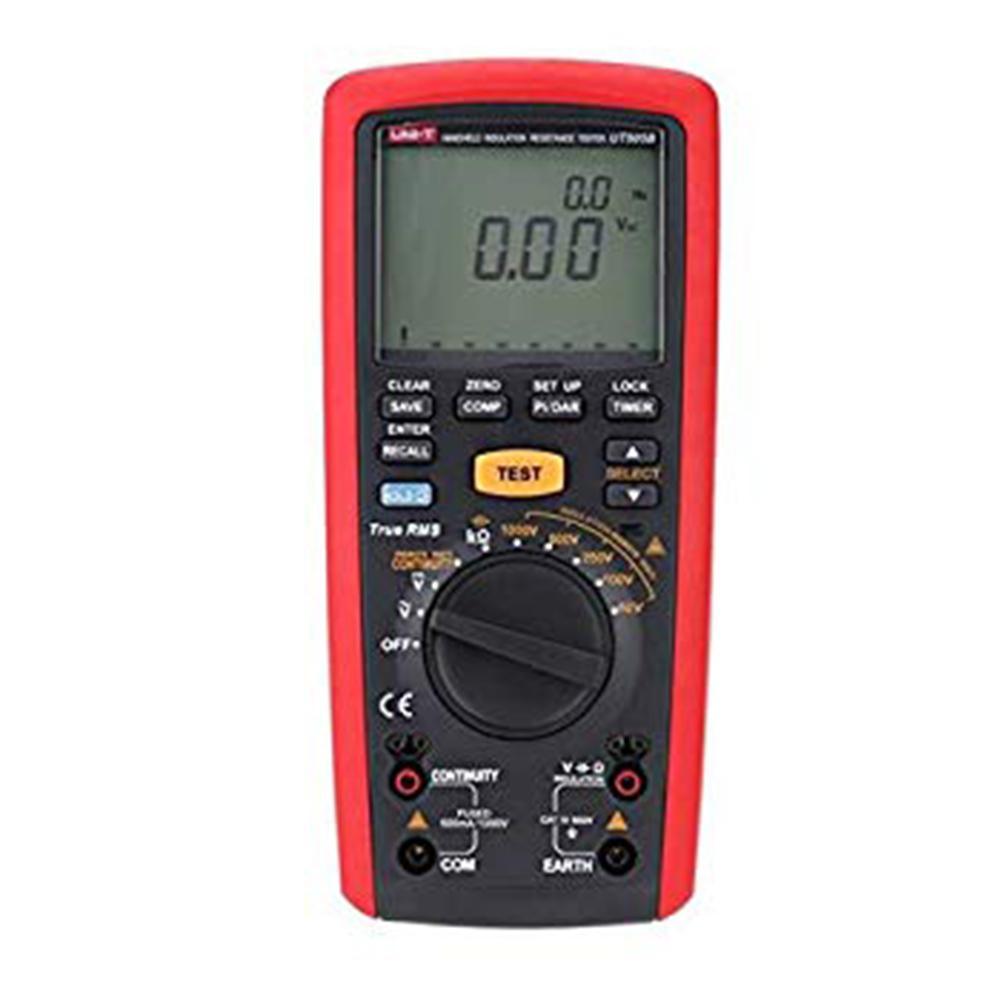

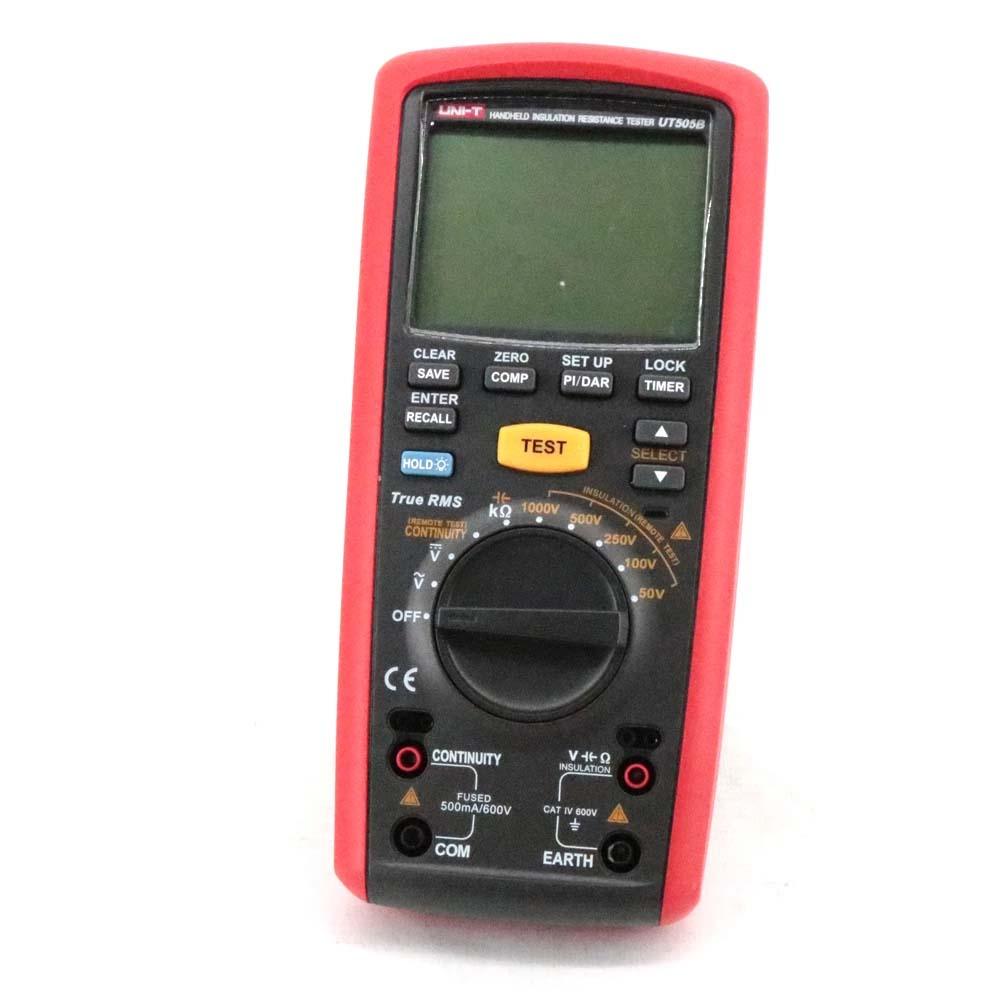

UT505B Handheld Insulation Resistance Tester in Pakistan

1 total reviews

Regular price Rs 0
Regular price Rs 0 Sale price Rs 0
Sale Sold out
BR2401

UT505B series handheld true RMS insulation resistance testers combine features of a digital multimeter and insulation resistance tester. Aside from the typical multimeter functions, these meters can also measure insulation resistance, PI, and DAR, and automatically calculate the resistance ratio to determine the insulation status.

Features:

  1. It is a handheld insulation resistance tester with high accuracy and stable performance.
  2. Multiple functions, it can measure insulation resistance and also has the functions of a multimeter.
  3. The functions of hold, remote test, and comparison make it more practical.
  4. Powered by 6 batteries(not included), with low power consumption.
  5. Voltage for your choice: 50V, 100V, 250V, 500V, 1000V.
  6. Large LCD display with white backlight, easy to read.
  7. Can be applied to various electrical equipment maintenance and test.

Specifications:

  • Voltage Output: 50V/100V/250V/500V/1000V
  • Insulation Resistance:
  • 50V: 0.00MΩ-0.99GΩ / 1.00GΩ~10.0GΩ
  • 100V: 0.00MΩ-0.99GΩ / 1.00GΩ~20.0GΩ
  • 250V: 0.00MΩ-0.99GΩ / 1.00GΩ~50GΩ
  • 500V: 0.00MΩ-0.99GΩ / 1.00GΩ~100GΩ
  • 1000V: 0.00MΩ-0.99GΩ / 1.00GΩ~200GΩ
  • Voltage Measurement: 0~600V(AC) 0~600V(DC)
  • Resistance: 0.001kΩ~10MΩ
  • Frequency Measurement: 45Hz~1kHz
  • Capacitance: 0.1nF~500μF
  • Power Supply: 6 * 1.5V AA Battery(not included)
  • Item Size: 22 * 10 * 4.5cm / 8.6 * 3.9 * 1.8in
  • Item Weight: 507g / 17.9oz
  • Package Size: 30 * 17.5 * 6.5cm / 11.8 * 6.9 * 2.6in
  • Package Weight: 984g / 34.7oz

Industryparts.pk is the Best Online Shopping website for UT505B Handheld Insulation Resistance Tester. Here you get UT505B Handheld Insulation Resistance Tester at a reasonable price in Karachi, Lahore, Islamabad, Rawalpindi, Peshawar, Quetta, Multan, and all over Pakistan.

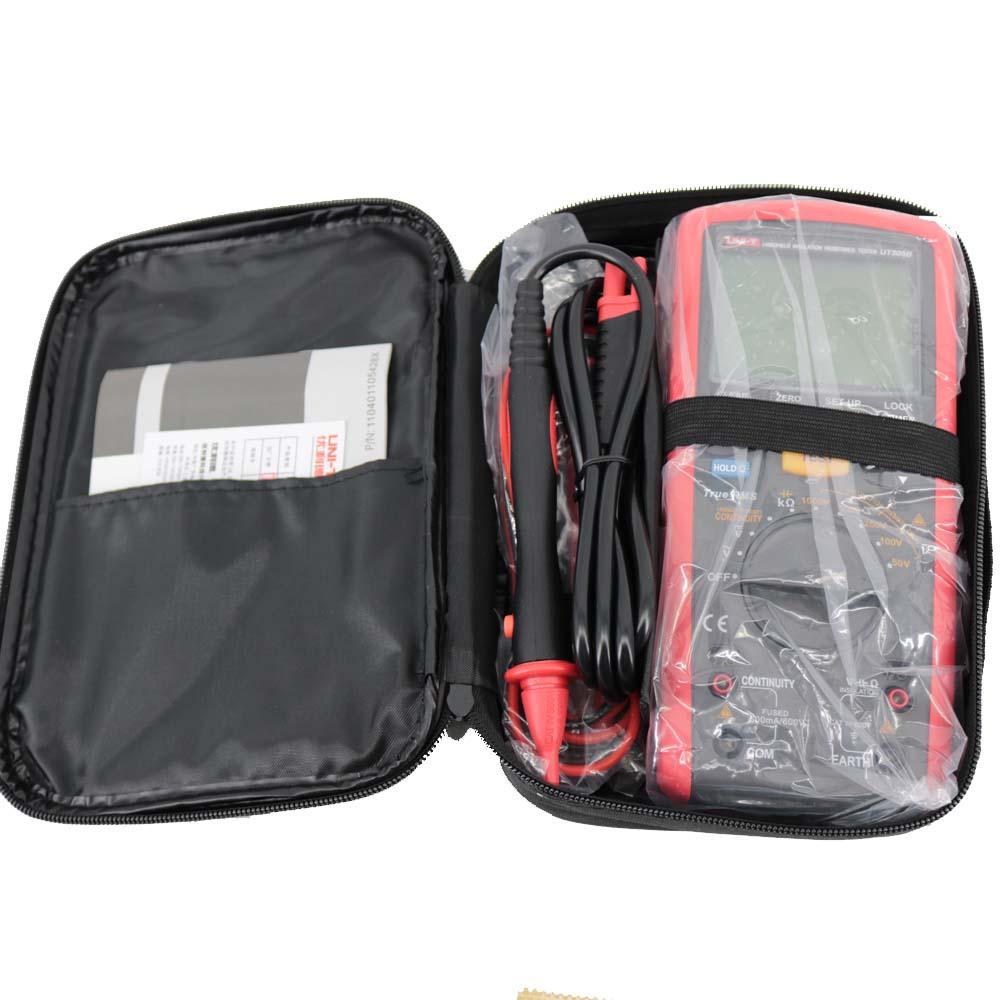

Package Includes:

1 x UT505B Handheld Insulation Resistance Tester

Description

UT505B series handheld true RMS insulation resistance testers combine features of a digital multimeter and insulation resistance tester. Aside from the typical multimeter functions, these meters can also measure insulation resistance, PI, and DAR, and automatically calculate the resistance ratio to determine the insulation status.

Features:

  1. It is a handheld insulation resistance tester with high accuracy and stable performance.
  2. Multiple functions, it can measure insulation resistance and also has the functions of a multimeter.
  3. The functions of hold, remote test, and comparison make it more practical.
  4. Powered by 6 batteries(not included), with low power consumption.
  5. Voltage for your choice: 50V, 100V, 250V, 500V, 1000V.
  6. Large LCD display with white backlight, easy to read.
  7. Can be applied to various electrical equipment maintenance and test.

Specifications:

  • Voltage Output: 50V/100V/250V/500V/1000V
  • Insulation Resistance:
  • 50V: 0.00MΩ-0.99GΩ / 1.00GΩ~10.0GΩ
  • 100V: 0.00MΩ-0.99GΩ / 1.00GΩ~20.0GΩ
  • 250V: 0.00MΩ-0.99GΩ / 1.00GΩ~50GΩ
  • 500V: 0.00MΩ-0.99GΩ / 1.00GΩ~100GΩ
  • 1000V: 0.00MΩ-0.99GΩ / 1.00GΩ~200GΩ
  • Voltage Measurement: 0~600V(AC) 0~600V(DC)
  • Resistance: 0.001kΩ~10MΩ
  • Frequency Measurement: 45Hz~1kHz
  • Capacitance: 0.1nF~500μF
  • Power Supply: 6 * 1.5V AA Battery(not included)
  • Item Size: 22 * 10 * 4.5cm / 8.6 * 3.9 * 1.8in
  • Item Weight: 507g / 17.9oz
  • Package Size: 30 * 17.5 * 6.5cm / 11.8 * 6.9 * 2.6in
  • Package Weight: 984g / 34.7oz

Industryparts.pk is the Best Online Shopping website for UT505B Handheld Insulation Resistance Tester. Here you get UT505B Handheld Insulation Resistance Tester at a reasonable price in Karachi, Lahore, Islamabad, Rawalpindi, Peshawar, Quetta, Multan, and all over Pakistan.

Package Includes:

1 x UT505B Handheld Insulation Resistance Tester
