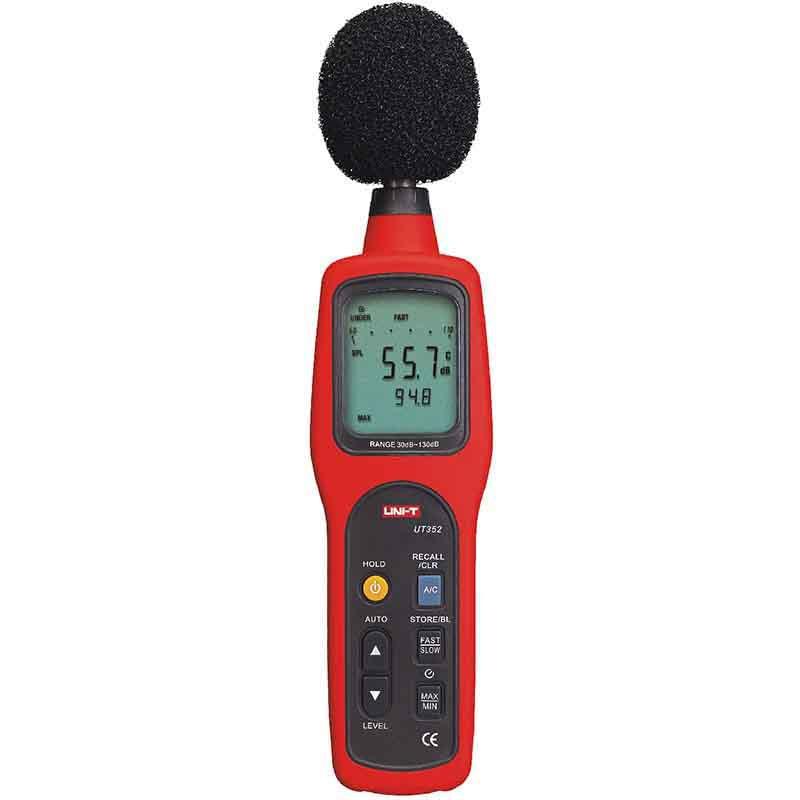

UNI-T’s UT352 Sound Level (30~130dB) Meter has auto range and data storage function, with high/lower alarm, analogue outputs and condenser microphone.
Features
1. MAX/MIN modes
2. Auto power off (cancelable)
3. 63 sets data storage
4. AC/DC analog signal output
5. Over/under range indication
6. Data hold, LCD backlight
7. Simulated analog bar
8. A (ear)/C (machine) weighting modes
9. Manual/auto range selectable
10. Fast/slow response rate (fast: 125ms, slow: 1s)
11. Powered by batteries or external power source
Specifications Range Best Accuracy
Model UT352
Range 30?80dB ±1.5dB
50?100dB ±1.5dB
60?110dB ±1.5dB
80?130dB ±1.5dB
Frequency 31.5Hz?8000Hz ?
Frequency Weighting A&C ?
Sample Rate FAST: 8 Times/s ?
SLOW: 1 Times/s ?
Features
Analogue Outputs AC: 0.707Vrms full scale; Output impedance: around 600? ?
DC: 2Vrms full scale; 10mV/dB; Output impedance: around 100? ?
Data Hold ? ?
Auto Power Off ? ?
Low Battery Indication ?4.8V ?
MAX Mode ? ?
MIN Mode ? ?
Data Logging ? 63
High Alarm Display "OVER" ?
Lower Alarm Display "UNDER" ?
LCD Backlight ? ?
Analog Bar Graph 30?130dB ?
General Characteristics
Power 1.5V Batteries (LR6) X 4
LCD Size 53mm X 41mm
Product Color Red and Grey
Product Net Weight 330g
Product Size 273mm X 70mm X 39mm
Standard Accessories Batteries, Windscreen, Leather Box
Standard Individual Packing Gift Box, English Manual
Standard Quantity Per Carton 30pcs
Standard Carton Measurement 670mm X 385mm X 300mm (0.077 CBM Per Standard Carton)
Description
UT352 Sound Level Meter BR2382
UNI-T’s UT352 Sound Level (30~130dB) Meter has auto range and data storage function, with high/lower alarm, analogue outputs and condenser microphone.
Features
1. MAX/MIN modes
2. Auto power off (cancelable)
3. 63 sets data storage
4. AC/DC analog signal output
5. Over/under range indication
6. Data hold, LCD backlight
7. Simulated analog bar
8. A (ear)/C (machine) weighting modes
9. Manual/auto range selectable
10. Fast/slow response rate (fast: 125ms, slow: 1s)
11. Powered by batteries or external power source
Specifications Range Best Accuracy
Model UT352
Range 30?80dB ±1.5dB
50?100dB ±1.5dB
60?110dB ±1.5dB
80?130dB ±1.5dB
Frequency 31.5Hz?8000Hz ?
Frequency Weighting A&C ?
Sample Rate FAST: 8 Times/s ?
SLOW: 1 Times/s ?
Features
Analogue Outputs AC: 0.707Vrms full scale; Output impedance: around 600? ?
DC: 2Vrms full scale; 10mV/dB; Output impedance: around 100? ?
Data Hold ? ?
Auto Power Off ? ?
Low Battery Indication ?4.8V ?
MAX Mode ? ?
MIN Mode ? ?
Data Logging ? 63
High Alarm Display "OVER" ?
Lower Alarm Display "UNDER" ?
LCD Backlight ? ?
Analog Bar Graph 30?130dB ?
General Characteristics
Power 1.5V Batteries (LR6) X 4
LCD Size 53mm X 41mm
Product Color Red and Grey
Product Net Weight 330g
Product Size 273mm X 70mm X 39mm
Standard Accessories Batteries, Windscreen, Leather Box
Standard Individual Packing Gift Box, English Manual
Standard Quantity Per Carton 30pcs
Standard Carton Measurement 670mm X 385mm X 300mm (0.077 CBM Per Standard Carton)
