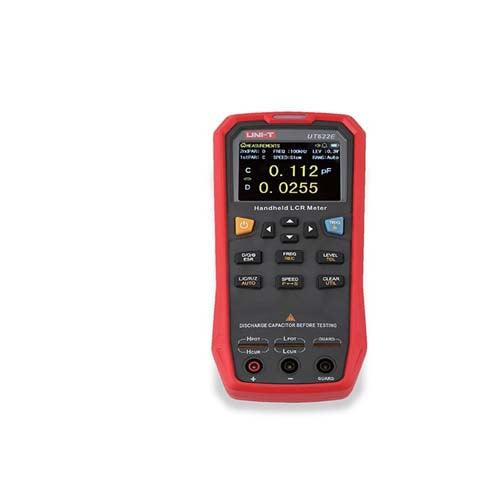

UT622 series UT622E handheld LCR meters feature powerful functions, high accuracy, fast speed, and long standby time. With a clear and intuitive 2.8-inch TFT LCD display, large-capacity rechargeable battery, and up to 100kHz test frequency, the meters can be used for longstanding accurate and convenient measurement on any occasion. They are suitable for the measurement and screening of inductance, capacitance, and resistance in production lines, maintenance points, etc.

Features:

• Up to 0.1% measurement accuracy
• High-brightness white backlight
• Ultra-low power consumption and long battery life (8 hours)
• Maximum test speed: 20 times/s
• Constant 100Q output impedance
• Data hold and recording mode
• Standard Mini-USB interface, SCPI command set

Specifications:

• Specifications UT622E
• Certificates CE, RoHS
• Test frequency 100Hz, 120Hz, 1kHz, 10kHz, 100kHz
• Test signal level 0.1Vrms, 0.3Vrms, 1Vrms
• Output impedance 100Ω
• Measurement parameters Primary: L/C/R/Z/DCR, Secondary: D/Q/θ/ESR
• Auto LCR √
• Test terminals Three-terminal test jacks, five-terminal test sockets
• Test rate Fast (20 times/s), medium (5 times/s), or slow (2 times/s)
• DCR test speed Fast (20 times/s), medium (5 times/s), or slow (2 times/s)
• Ranging mode Auto/hold
• Tolerance range 1%~20%
• Testing circuit mode Series/parallel mode
• Clearing correction Open/short circuit
• Fuse of test ports 0.1A/250V
• Communication interface Mini-USB
• LED alarm for tolerance
• (pass: green; fail: red) √
• Display range
• Maximum reading 99999
• Minimum resolution 0.0001
• Maximum accuracy 0.001
• L 0.00μH~99.999H
• C 0.00pF~99.999mF
• Z/R 0.0000Ω~9.9999MΩ
• ESR 0.0000Ω~999.99Ω
• D 0.0000~9.9999
• Q 0.0000~99999
• θ -179.9°~179.9°
• DCR 0.01mΩ--20.000MΩ
• Temperature coefficient 0.1× (specified accuracy) /°C (0°C~18°C or 28°C~40°C)
• General Characteristics
• Power 3.7V 1800mAh lithium polymer battery; Input: 220V (1±10%), 50Hz (1±5%); Mini-USB output: 5V, 1A
• Display 2.8' TFT LCD 320X240
• Product net weight 420g
• Product size 93mm x 192mm x 44mm
• Standard accessories Short circuit board (UTR-001), USB cable, 5V 1A power adapter, Alligator clip test leads with rubber plugs (UTR-002)(UT622A), English manual
• Standard individual packing Gift box
• Standard quantity per carton 10pcs
• Standard carton measurement 370mm × 305mm × 475mm
• Standard carton gross weight 13.2kg

Package Includes:

1 x UNI-T UT622E Handheld LCR Meter
