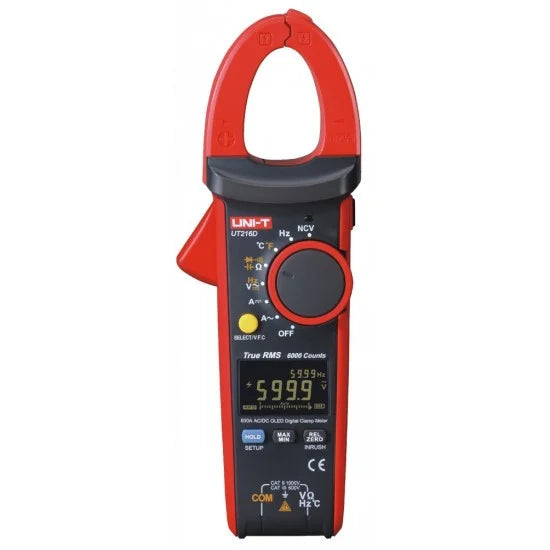

UNI-T UT216D 600A True RMS Digital Clamp Meter is  designed for measuring high-frequency currents (up to 400Hz) in railways and aerospace, server rooms, IT systems, etc. True RMS Clamp Tester double injection design gives users a more comfortable grip and enhanced durability. Handheld Digital Clamp Multimeter UT216D has a 6000 count display also provides more precise readings for users. UNI-T ut216d Tong Tester is an auto range multimeter and has an input impedance of 10 megaohm. ac/dc current Ampere Clamp Meter is used to measure AC/DC voltage, current, resistance, and temperature. UNI-T UT216D Auto range clamp Multimeter is an ideal tool for the detection, maintenance, and repair of various universities and colleges, smelting, communication, manufacturing, petroleum, national defense, electrical, power, and circuit equipment. Manufactured by UNI-T.

Features:

1. True RMS
2. OLED Display
3. Auto range, 3 times/s sampling rate
4. MAX/MIN/Relative modes
5. K-type temperature probe
6. Flashlight
7. 400Hz measurement
8. NCV, non-contact AC voltage testing
9. VFC, low pass filter
10. Zeroing function
11. Inrush current
12. Analog bar graph
13. Auto Power-off
14. Input Impedance DC 10MΩ+

Specifications:

• Power: AAA 1.5V x 3
• LCD Display: 38mm x 24 mm
• Dimension: 220mm x 75mm x 40mm
• Color: Red and Grey
• Jaw Capacity: 30mm
• DC voltage:
  • Range:600mV/6V/60V/600V/1000V
  • Accuracy: ±(0.8%+1)
• AC voltage:
  • Range: 6V/60V/600V/750V
  • Accuracy: ±(1.2%+5)
• AC current:
  • Range: 6A/60A/600A
  • Accuracy: ±(2.5%+5)
• DC current:
  • Range: 6A/60A/600A
  • Accuracy: ±(2.5%+5)
• Resistance:
  • Range: 600Ω/6KΩ/60KΩ/600KΩ/6MΩ/60MΩ
  • Accuracy: ±(1%+2)
• Capacitance:
  • Range: 60nF/600nF/6μF/60μF/600μF/6mF/60mF
  • Accuracy: ±(4.0%+5)
• Temperature (°C):
  • Range: -40 °C ～ 1000°C
  • Accuracy: ±(2.5%+3)
• Temperature (°F):
  • Range: -40 °F ～ 1832°F
  • Accuracy:±(2.5%+6)
• Frequency:
  • Range: 10Hz-1MHz
  • Accuracy: ±(0.1%+4)

Package includes:

          1 x UNI-T UT216D True RMS Digital Clamp Meter

Industryparts.pk is the Online Shopping website for UNI-T UT216D True RMS Digital Clamp Meter. Here you get UNI-T UT216D True RMS Digital Clamp Meter at a reasonable price in Karachi, Lahore, Islamabad, Rawalpindi, Peshawar, Quetta, Multan, and all over Pakistan.
