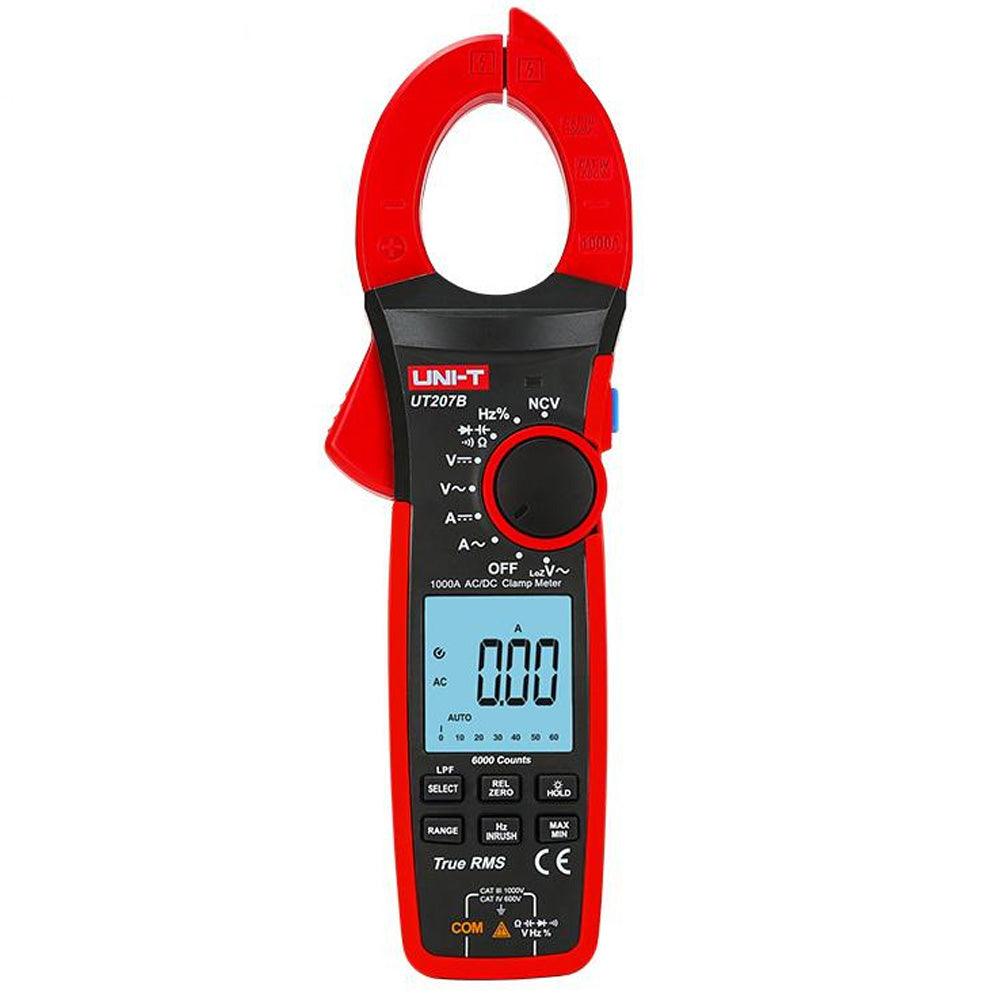

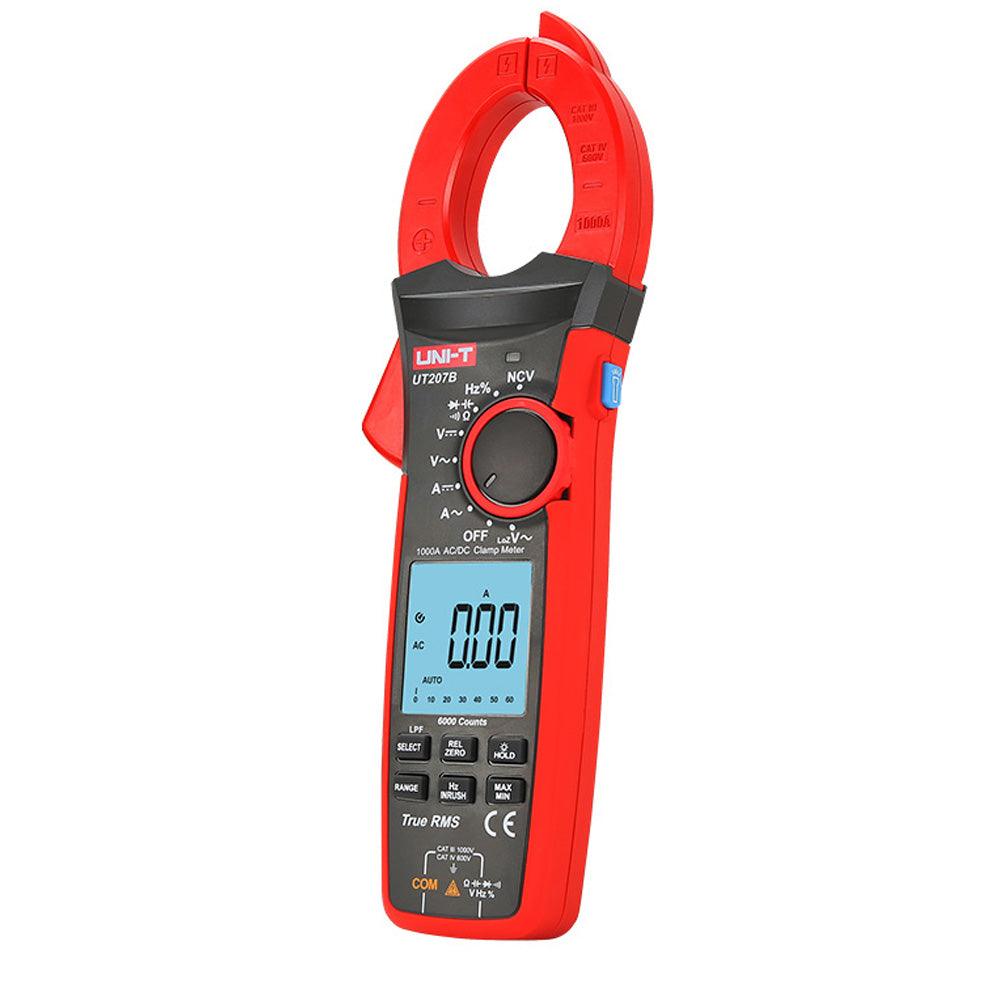

UNI-T UT-207B Digital Clamp Multimeter is used to measure AC/DC voltage, Connectivity, Resistance, and Frequency. These 1000A AC/DC digital clamp meters are stable, safe, and reliable with low power consumption.  The UT207B comes with LoZ mode for eliminating ‘ghost ’voltage, LPF ACV function for measuring INV and VFD voltage, and inrush current mode for capturing transient current.

Features:

• Flashlight button: Short press this button to turn on/off the flashlight.
• Flexible current probe (optional) to extend the AC current measurement range to3000A
• Inrush current capture
• NCV Multi-Segment Display and audio/visual alarm
• True RMS/Auto backlight
• NCV/Function retention

Specifications:

1. Power: 1.5V battery (R03) x 3
2. LCD Display: 43mm x 45mm
3. Jaw Opening: 42mm
4. Dimension: 272mm x 81mm x 43.5mm
5. Color: Red and Grey
6. Display Count: 6000
7. AC voltage:
   • 6V  ±(1.2%+3)
   • 60V/600V/1000V   ±(1%+8)
8. DC voltage:
   • 600mV ±(0.8%+3)
   • 6V/60V ±(0.5%+5)
   • 600V  ±(0.5%+5)
   • 1000V  ±(0.5%+5)
9. Inrush current:
   • Range: 1000A
   • Accuracy:  ±(10%+10)
10. AC current:
    • Range: 1000A
    • Accuracy: ±(2%+5)
11. DC current:
    • Range: 1000A
    • Accuracy: ±(2%+5)
12. LOZ ACV:
    • 600V/1000V  ±(2%+5)
13. Resistance:
    • 600Ω  ±(2%+5)
    • 6KΩ/60KΩ/600KΩ  ±(1%+3)
    • 6MΩ/60MΩ ±(2%+8)
14. Capacitance:
    • 60nF ±(4%+25)
    • 600nF/6μF/60μF/600μF ±(4%+5)
    • 6mF/60mF ±(10%+9)
15. Frequency:

• Range: 10MHz
• Accuracy: ±(0.1%+3)

Package Include:

• 1x True RMS digital clamp Meter UT207B
