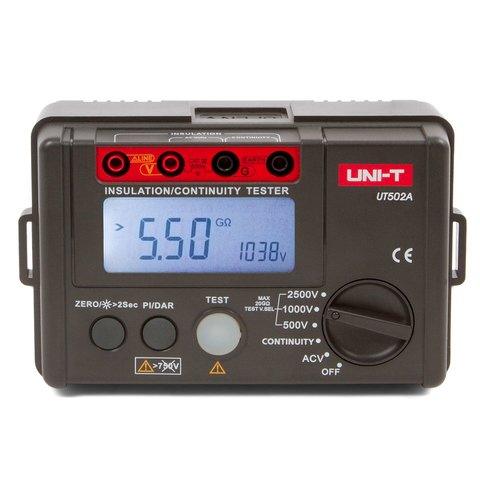

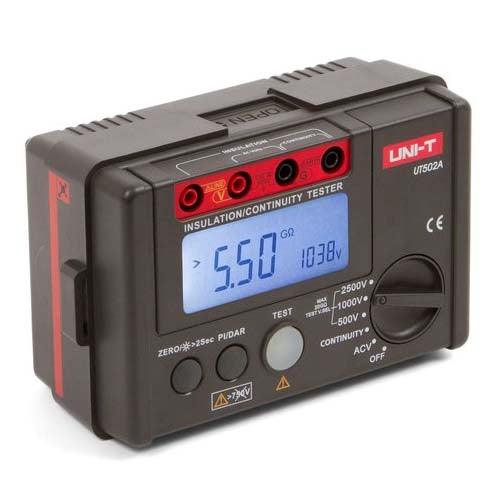

UNI T Insulation Resistance Tester UT502A is used to measure the insulation resistance of electrical equipment and household appliances. This UT-502A insulation continuity tester is done by measuring the insulation resistance between electrical circuits or between circuits and the ground. This digital megohmmeter can measure insulation resistance, AC Voltage, low resistance, PI (Polarization Index), and DAR (Dielectric Absorption). This cable insulation resistance tester is an ideal tool for ensuring transformers, generators, high voltage motors, power capacitors, power cables, arresters, and other electrical equipment that can operate in a safe and accurate manner.

Features:

• 2000 count LCD display, overload indication, backlight.
• AC voltage measurement, auto power off.
• Auto discharge.
• Continuous measurement mode, red warning light, and buzzer function.
• Continuous low resistance measurement.
• PI and DAR measurement, auto resistivity calculation.
• Low resistance returning to zero function to improve accuracy.

Specifications:

1. Testing Voltage: 500V / 1000V / 2500V ± 10%
2. Insulation Resistance:
3. 500V: 0.00MΩ-99.9MΩ ±(3%+5), 100MΩ-5.0GΩ ±(5%+5)
4. 1000V: 0.00MΩ-99.9MΩ ±(3%+5), 100MΩ-5.0GΩ ±(5%+5)
5. 2500V: 0.00MΩ-99.9MΩ ±(3%+5), 100MΩ-9.9GΩ ±(5%+5), 10.0GΩ-20.0GΩ ±(10%+5)
6. Load Current: 500V(R=500kΩ) 1mA 0%-10%, 1000V(R=1MΩ) 1mA 0%-10%, 2500V(R=1MΩ) 1mA 0%-10%
7. Short Circuit Current: <2mA
8. Low Resistance: 0.01Ω-200Ω (about 5V/>200mA) ±(2%+3)
9. AC Voltage: 30V-600V ±(2%+3)
10. Max Display: 2000
11. DAR: Yes
12. PI: Yes
13. Auto Range: Yes
14. Low Battery Indication: Yes
15. LCD Backlight: Yes
16. Alarm Indication: Yes
17. Alarm Buzzer: Yes
18. High Voltage Indication: Yes
19. Over Load Indication: Yes
20. Auto Discharge: Yes
21. Test Voltage Display: Yes
22. 10MΩ Internal Resistance Test: Yes
23. Power: 6x 1.5V battery
24. LCD Size: 70.6 x 34 mm
25. Size: 150 x 100 x 71mm
26. Weight: 500g

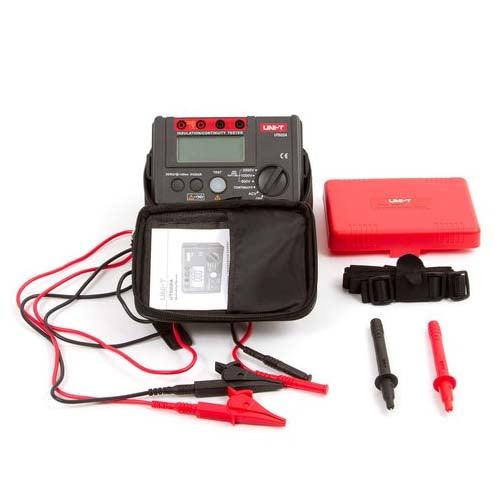

Package Includes:

• 1 x UNI-T UT502A Insulation Tester
• 2 x Test Leads
• 2 x Alligator Clips
• 2 x Test Probes
• 1 x User Manual
• 1 x Carrying Bag
