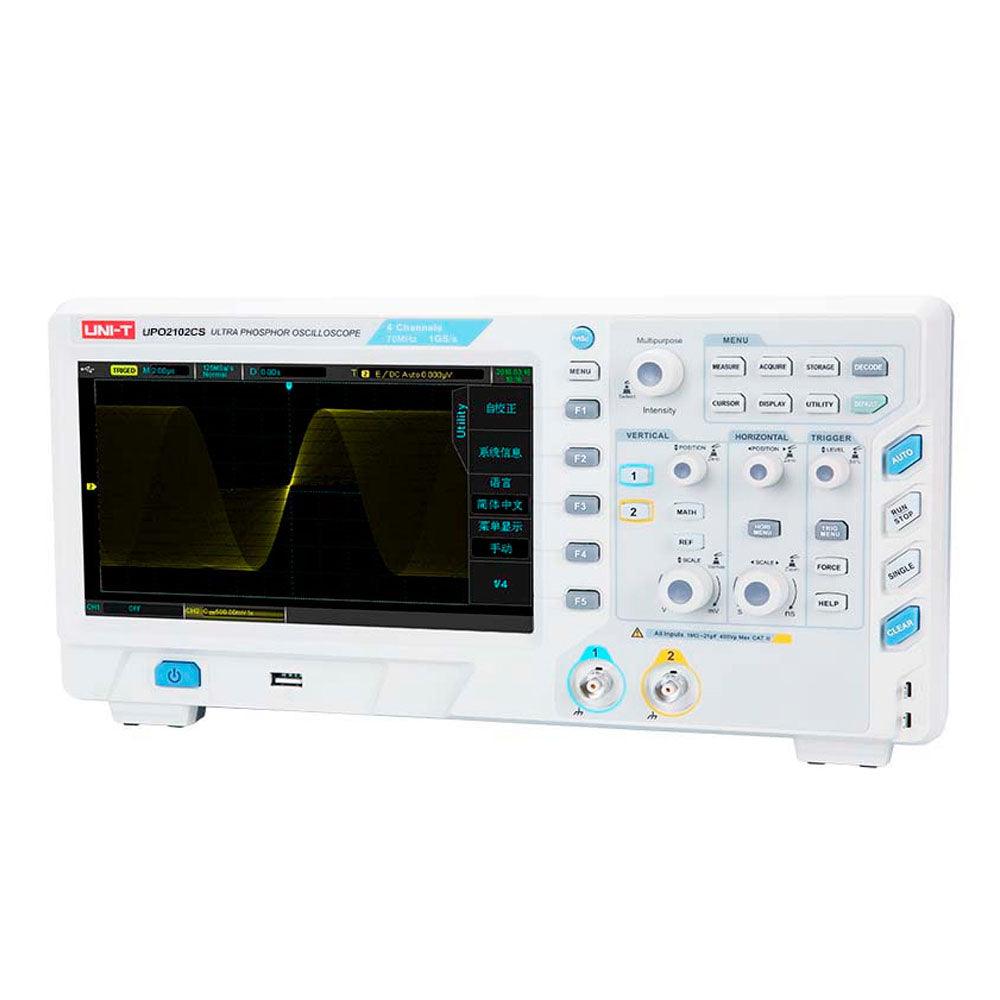

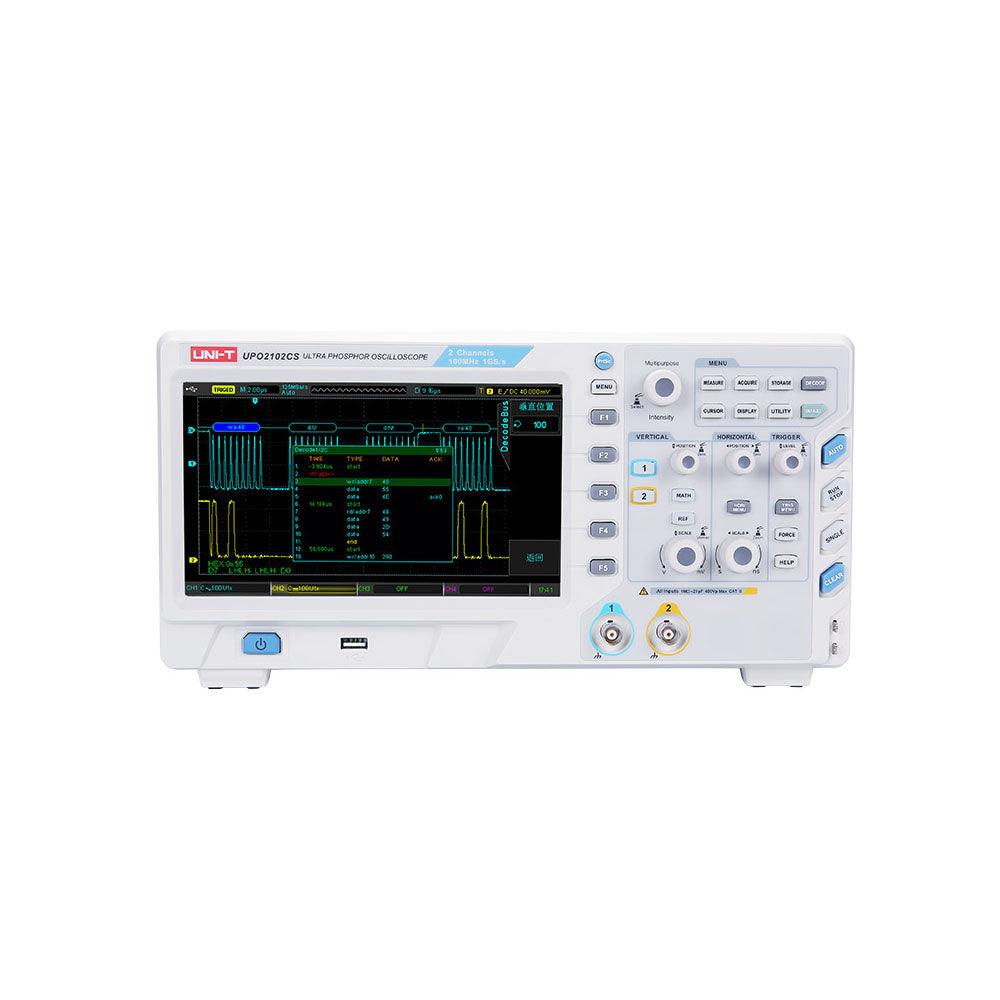

An oscilloscope is a laboratory instrument commonly used to display and analyze the waveform of electronic signals. In effect, the device draws a graph of the instantaneous signal voltage as a function of time. UNI-T UPO2102CS digital oscilloscope is a 2 channel 100MHz bandwidth high-performance device. It has a sampling rate of 1GS/s. Digital Storage CRO is an ergonomic, lightweight, universal instrument designed for engineers. Sampling Oscilloscope is suitable for field testing and analyzing time-based voltage signals in a mobile environment

Features:

• Sample Rate up to 1GS/s
• Channels 2
• Bandwidth 100MHz
• Memory Depth 32Mpts(Standard)
• Waveform Capture Rate up to 50,000wfms/s
• With 256 level intensity grading display
• Up to 65,000 frames for Waveform Record, Replay
• Support serial bus trigger and decoding
• 8 inches, TFT LCD，WVGA(800*480)
• Interface：USB Host, USB Device, LAN, VGA, AUX OUT, 10MHz input/output.

Specifications:

1. Channels: 2
2. Bandwidth: 100MHZ
3. Sample Rate: 1GS/s
4. Rise Time: 7ns
5. Memory Depth: 28 kpts
6. Waveform Acquisition Rate:50000wfms/s
7. Vertical Sensitivity:  1mV/div-20V/div
8. Time-base Range: 5ns/div-50s/div
9. Storage: Setup, Wave, Bitmap
10. Trigger Modes:  Edge, pulse width, video (UTD2025CL), alternate
11. Interface: USB OTG, Pass/Fail
12. Power: 100-240VAC, 40-440Hz
13. LCD Size: 8 inches, 800x480
14. Colour: White and Grey
15. Dimension: 336x164x108mm

Package Include:

• 1x Oscilloscope
• 2x  Probe
• 1x power cord
• 1x USB cable
