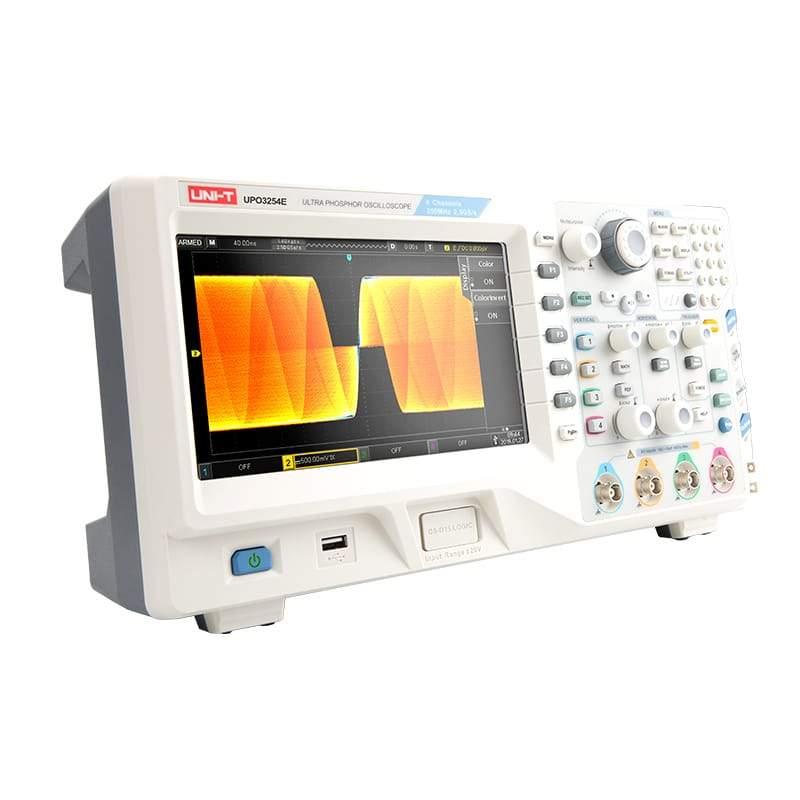

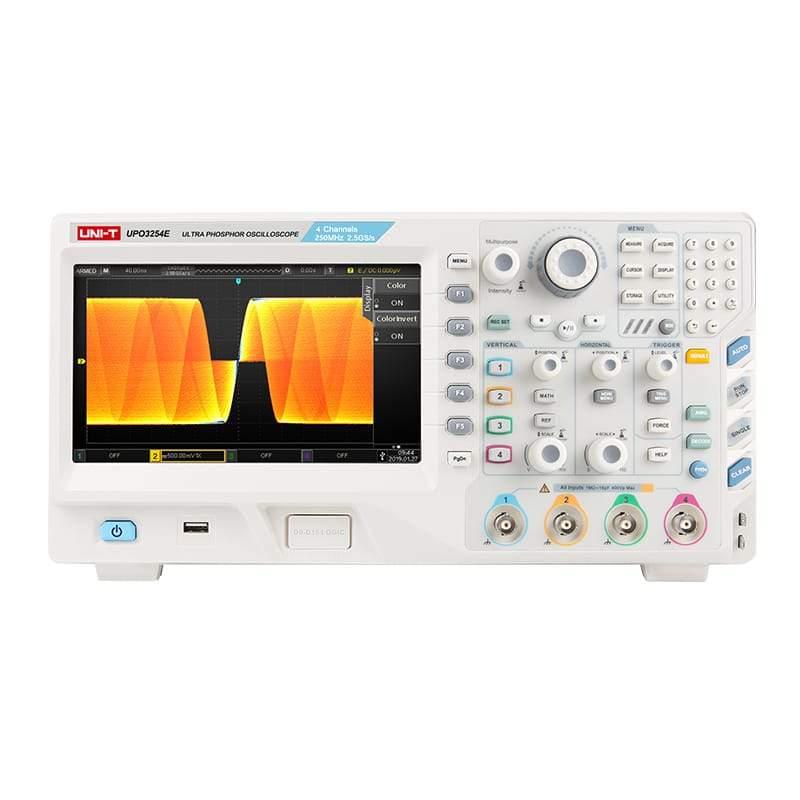

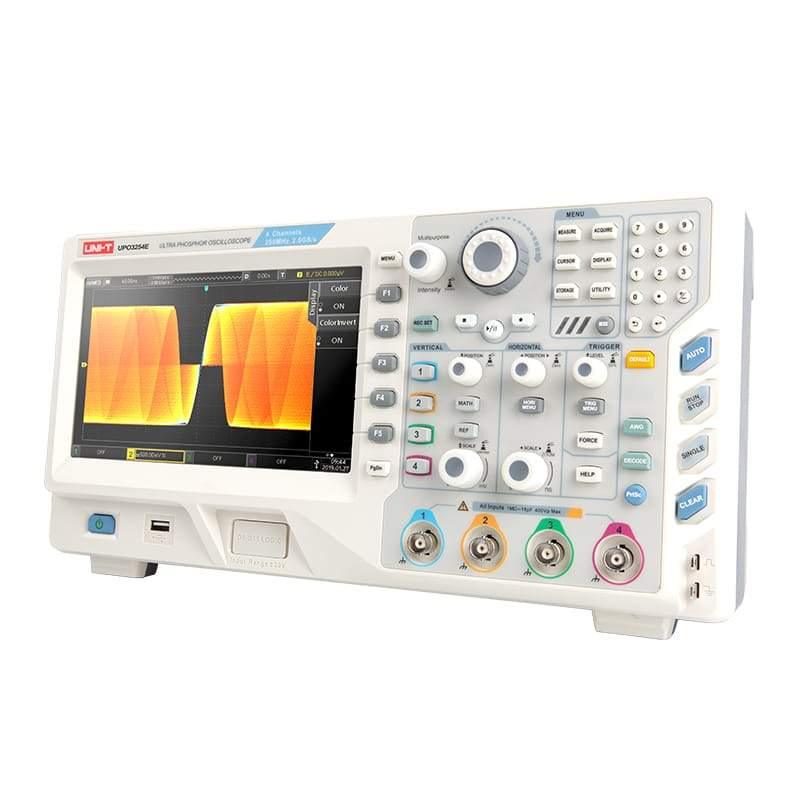

UNI-T UPO3254E ultra-phosphor oscilloscopes can realize functions of deep storage, high waveform capture rate, real-time waveform recording, and playback, multi-level intensity grading display, and more with UNI-T special 3D technology. Some competitive features of Digital Storage Oscilloscope are 250MHz bandwidth, up to 2.5GS/s real-time sampling rate, 2/4 channels, 70Mpts standard memory depth, higher than 200,000wfms/s waveform capture rate, more than 100,000 waveforms continuous recording and analysis, up to 256 levels intensity grading display. Sampling DSO can be operated with a standard 25MHz dual-channel function/arbitrary waveform generator or an optional digital multimeter module (UT-M12). The  Digital Storage CRO  has multiple triggers and Bus decoding functions, including edge, pulse width, slope, video, runt, windows, Nth edge, delay, overtime, code, USB, RS232/UART, I2C, SPI, CAN, LIN,  and Flex Ray triggers, duration, setup/hold and more. UNI-T Scope meter features low noise and 1mV/div Min vertical stall.

Features Of UNI-T UPO-3254E Oscilloscope DSO Scope meter:

• Bandwidth: 250MHz
• Sampling rate: 2.5GS/s;
• Memory depth: 70Mpts
• Waveform capture rate: 200,000wfms/s
• Independent triggering
• 256-level intensity grading display
• Multiple triggering and decoding available
• 8 inches TFT LCD, WVGA (800×480)
• Up to 100,000 frames waveform record

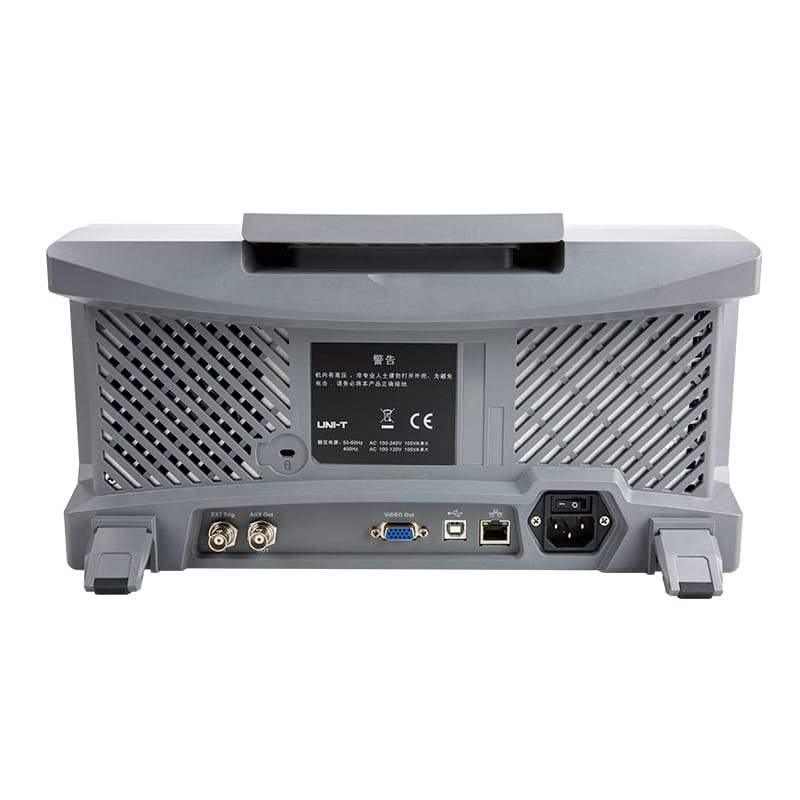

• Interfaces: USB Host, USB Device, LAN, EXT Trig, AUX Out (Trig Out, Pass/Fail), VGA

Specifications Of 4 Channel Digital Storage Oscilloscope:

1. Power: 100V~240V ACrms, 50Hz/60Hz
2. Display: 8-inch TFT LCD, WVGA (800 x 480)
3. Color: White and Grey
4. Dimension: 490mm x 480mm x 300mm

Typical applications Of UPO3254E :

1. Serial data analysis
2. Jitter analysis
3. Data storage device testing
4. Electric vehicle and electronics equipment design
5. Evaluating the frequency response of sound equipment
6. Troubleshooting automotive engines
7. Electronics technician repair and maintenance.

Package Include:

• 1x Oscilloscope
• 2x  Probe (1×,10× switchable)
• 1x power cord
• 1x USB cable
