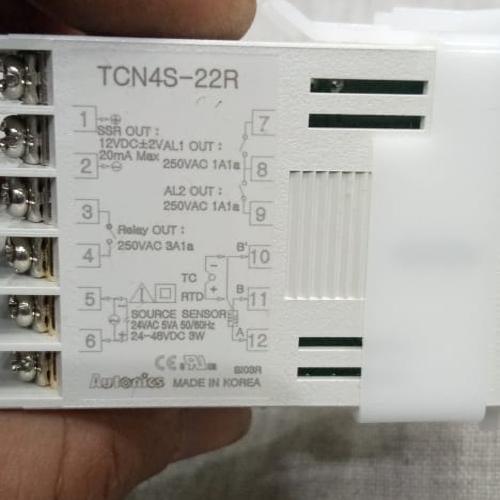

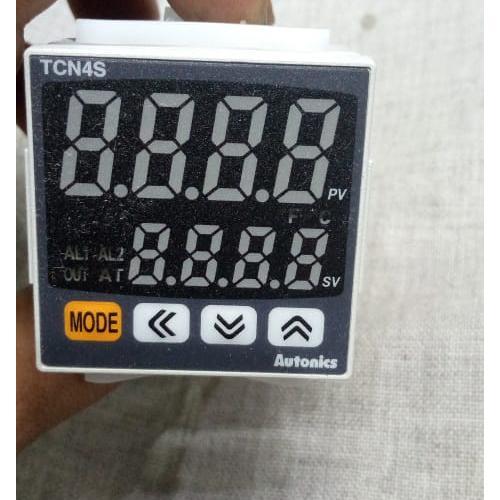

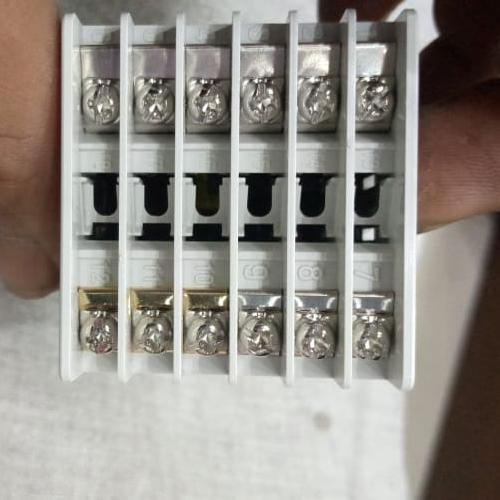

Temperature Controller TCN4S-22R in Pakistan

1 total reviews

Regular price Rs 25,200
Regular price Rs 28,500 Sale price Rs 25,200
Sale Sold out
BR4796

A Temperature Controller is a device that is used to control a heater or other equipment by comparing a sensor signal with a set point and performing calculations according to the deviation between those values.

Features:

  1. Display method 4-digit 7-segment LED
  2. Control method ON/OFF control, P, PI, PD, PID control
  3. Input specification Thermocouple: K(CA), J(IC), T(CC), R(PR), S(PR), L(IC)
  4. RTD: DPt100Ω, Cu50Ω
  5. Sampling cycle 100ms
  6. Control output Relay(250VAC~ 3A) or SSR drive(12VDC ) [ON/OFF]
  7. Option output Alarm 1/2
  8. Power supply 24VAC~ 50/60Hz, 24-48VDC
  9. Approval
  10. Display accuracy_RTD •At room temperature(23ºC ± 5ºC):(PV ± 0.5% or ±1ºC, select the higher one) ± 1-digit
  11. •Out of room temperature range:(PV± 0.5% or ±2ºC, select the higher one)± 1-digit
  12. Display accuracy_Thermocouple •At room temperature(23ºC ± 5ºC):(PV ± 0.5% or ±1ºC, select the higher one) ± 1-digit
  13. •Out of room temperature range:(PV± 0.5% or ±2ºC, select the higher one)± 1-digit
  14. Hysteresis(adjustable sensitivity) 1 to 100℃/℉(0.1 to 50.0℃/℉) variable
  15. Proportional band 0.1 to 999.9℃/℉
  16. Integral time 0 to 9999 sec
  17. Derivative time 0 to 9999 sec
  18. Control period 0.5 to 120.0 sec
  19. Manual reset 0.0 to 100.0%
  20. Environment_Ambient temperature -10 to 50℃, storage: -20 to 60℃
  21. Environment_Ambient humidity 35 to 85% RH, storage: 35 to 85% RH

Package Includes:

1 x Temperature Controller TCN4S-22R

Industryparts.pk is the Best Online Shopping website for Temperature Controller TCN4S-22R. Here you get ABCDE at a reasonable price in Karachi, Lahore, Islamabad, Rawalpindi, Peshawar, Quetta, Multan, and all over Pakistan.

Description

A Temperature Controller is a device that is used to control a heater or other equipment by comparing a sensor signal with a set point and performing calculations according to the deviation between those values.

Features:

  1. Display method 4-digit 7-segment LED
  2. Control method ON/OFF control, P, PI, PD, PID control
  3. Input specification Thermocouple: K(CA), J(IC), T(CC), R(PR), S(PR), L(IC)
  4. RTD: DPt100Ω, Cu50Ω
  5. Sampling cycle 100ms
  6. Control output Relay(250VAC~ 3A) or SSR drive(12VDC ) [ON/OFF]
  7. Option output Alarm 1/2
  8. Power supply 24VAC~ 50/60Hz, 24-48VDC
  9. Approval
  10. Display accuracy_RTD •At room temperature(23ºC ± 5ºC):(PV ± 0.5% or ±1ºC, select the higher one) ± 1-digit
  11. •Out of room temperature range:(PV± 0.5% or ±2ºC, select the higher one)± 1-digit
  12. Display accuracy_Thermocouple •At room temperature(23ºC ± 5ºC):(PV ± 0.5% or ±1ºC, select the higher one) ± 1-digit
  13. •Out of room temperature range:(PV± 0.5% or ±2ºC, select the higher one)± 1-digit
  14. Hysteresis(adjustable sensitivity) 1 to 100℃/℉(0.1 to 50.0℃/℉) variable
  15. Proportional band 0.1 to 999.9℃/℉
  16. Integral time 0 to 9999 sec
  17. Derivative time 0 to 9999 sec
  18. Control period 0.5 to 120.0 sec
  19. Manual reset 0.0 to 100.0%
  20. Environment_Ambient temperature -10 to 50℃, storage: -20 to 60℃
  21. Environment_Ambient humidity 35 to 85% RH, storage: 35 to 85% RH

Package Includes:

1 x Temperature Controller TCN4S-22R

Industryparts.pk is the Best Online Shopping website for Temperature Controller TCN4S-22R. Here you get ABCDE at a reasonable price in Karachi, Lahore, Islamabad, Rawalpindi, Peshawar, Quetta, Multan, and all over Pakistan.
