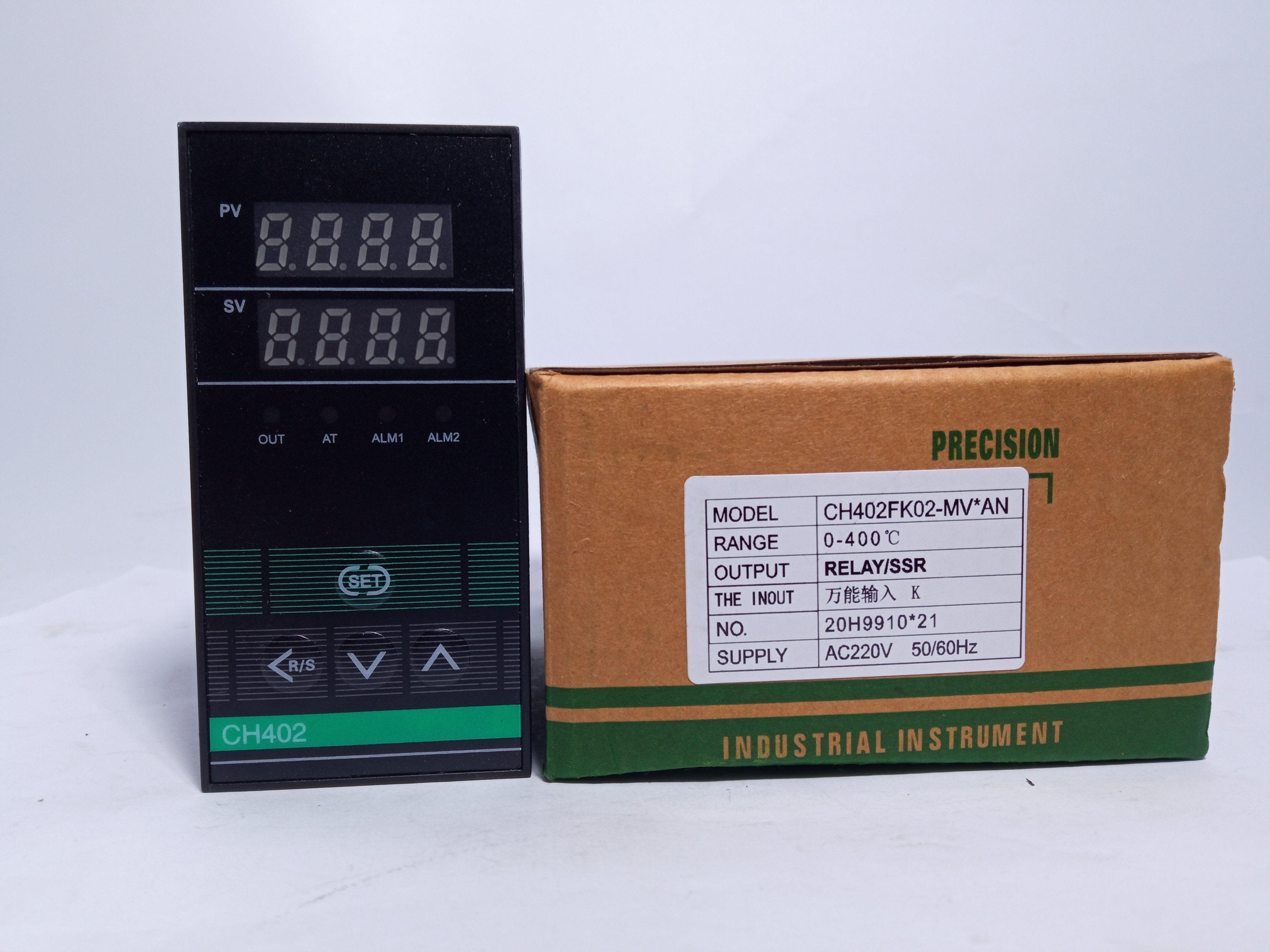

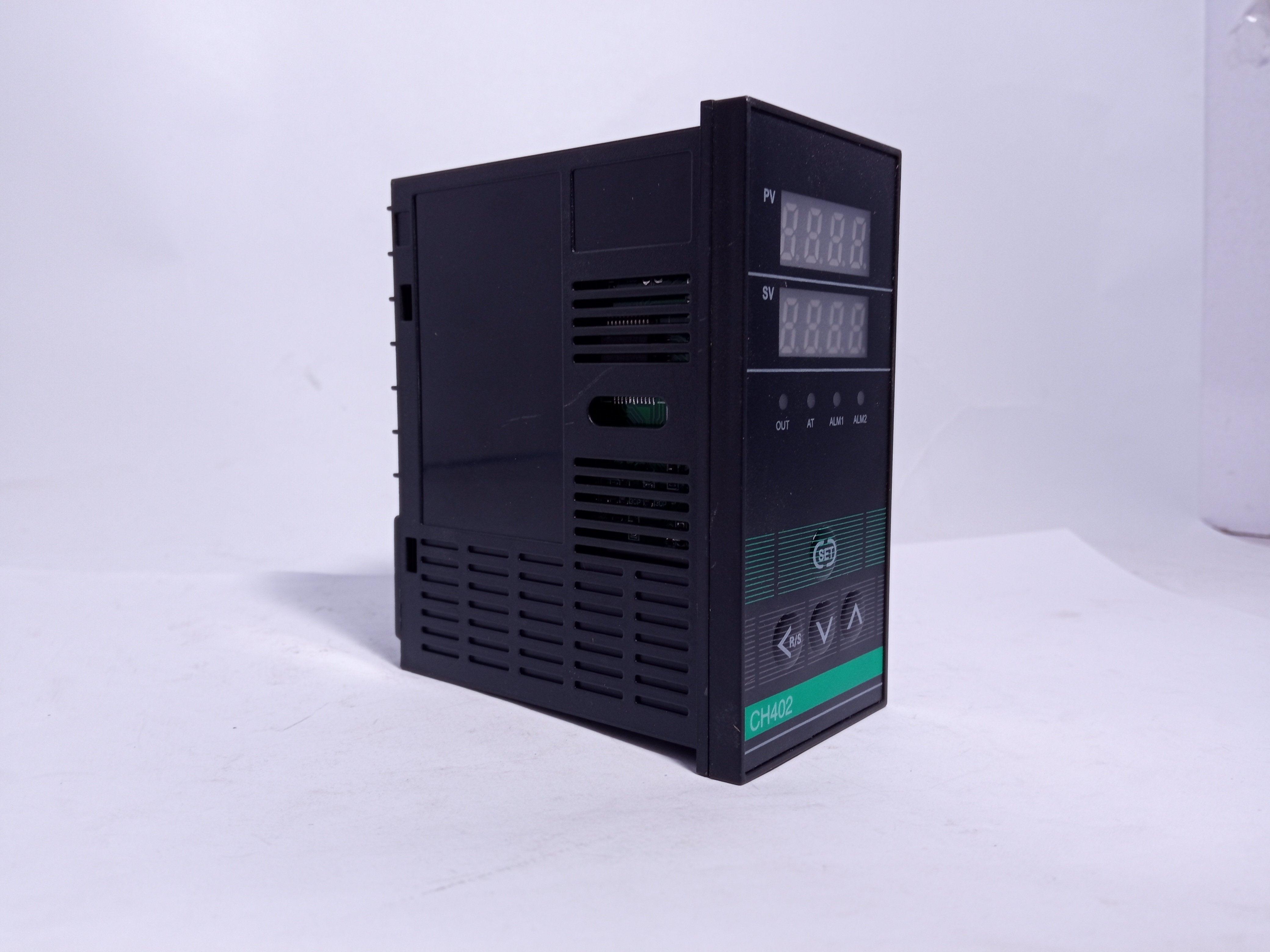

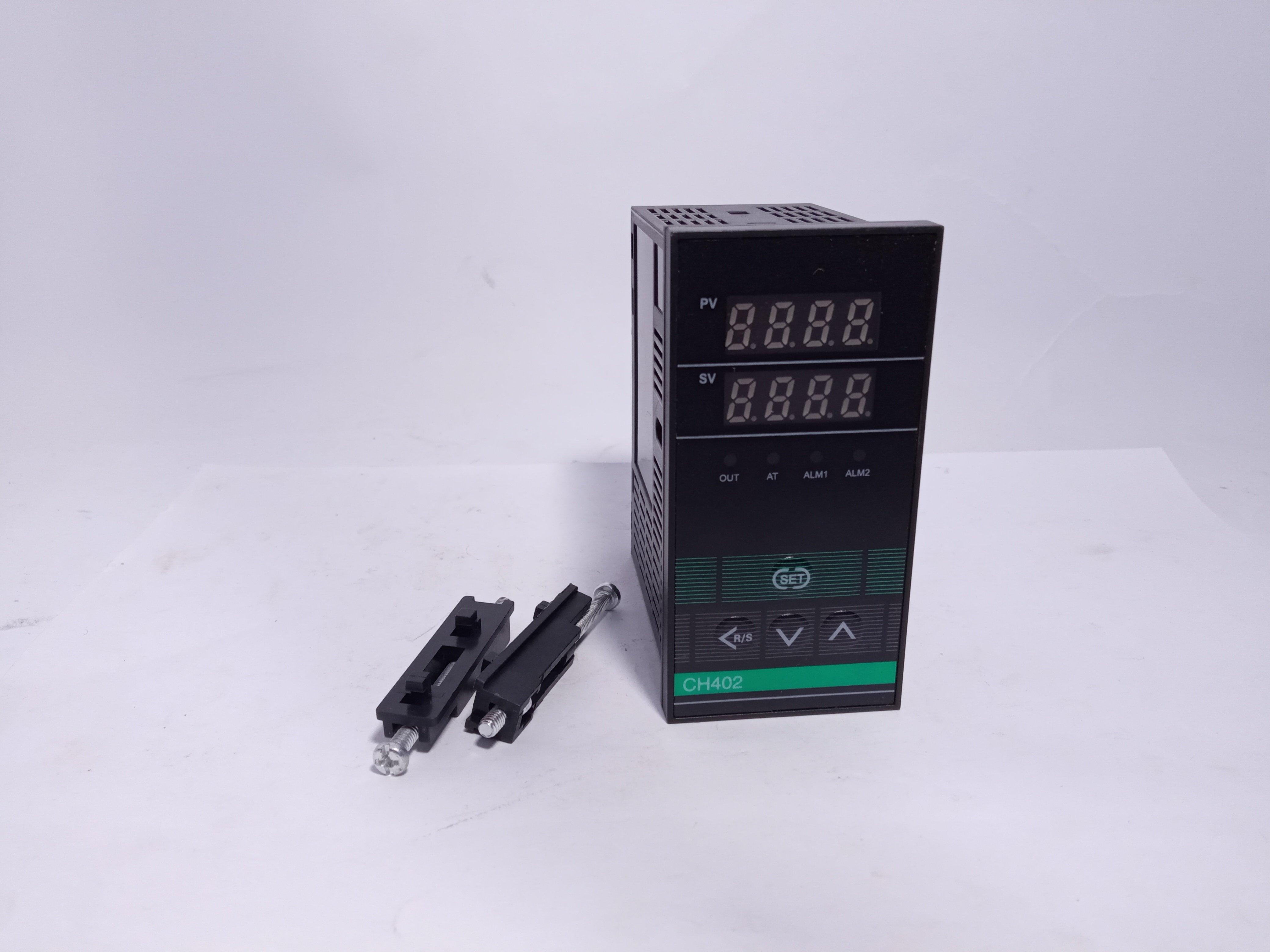

Temperature Controller CH402 FKo2 in Pakistan

SKU:BR5234

Regular price Rs 3,864
Regular price Rs 4,000 Sale price Rs 3,864
Sale Sold out

temperature controller is a device used to hold the desired temperature at a specified value. ... If it falls below the set temperature, it sends a signal to activate the heater to raise the temperature back to the setpoint. Thermostats are also used in refrigerators.

Features:

  1. Selectable input from panel(TC,RTD, Analog)
  2.  PID, Initial power-up overshoot suppression function
  3.  Super large and bright LED Display
  4.  High Measuring accuracy, 0.2%F.S
  5.  Wide range of power supply 85~265VAC
  6. SSR drive/Relay/4-20mA/Triac output
  7.  Dual Line 4 digits display
  8.  RS-485, 4-20mA Re-Transmission optional
  9. Decimal points for all input signals
  10.  C or F display selected at the user’s discretion
  11.  Alarm standby function integrated
  12.  Output graphic bar indication
  13.  Soft-start function(analog output only)

Specifications:

  • Place of Origin: China
  • Model Number: CH-402FK02-MV*AN
  • Usage: Industrial
  • Theory: Temperature Controller
  • Accuracy:0.3%F.S
  • Temperature range:-200~1300
  • Size: 48mm*48mm, 48mm*96mm, 72mm*72mm, 96mm*96mm
  • Input: Universal input
  • Output: SSR Drive,4-20mA, Realy,0-10Vdc
  • Alarm: Maximum 2 alarms
  • Communication: RS-485 communication
  • Re-transmission: PV Re-transmission
  • Housing: Black ABS, fire retarded
  • Certs: CE certs
  • Control mode: PID, ON/OFF
  • Display: LED, C, or F selectable

Package Includes:

       1 x Temperature Controller CH402 FKo2

Industryparts.pk is the Best Online Shopping website for Temperature Controller CH402 FKo2. Here you get Temperature Controller CH402 FKo2 at a reasonable price in Karachi, Lahore, Islamabad, Rawalpindi, Peshawar, Quetta, Multan, and all over Pakistan
