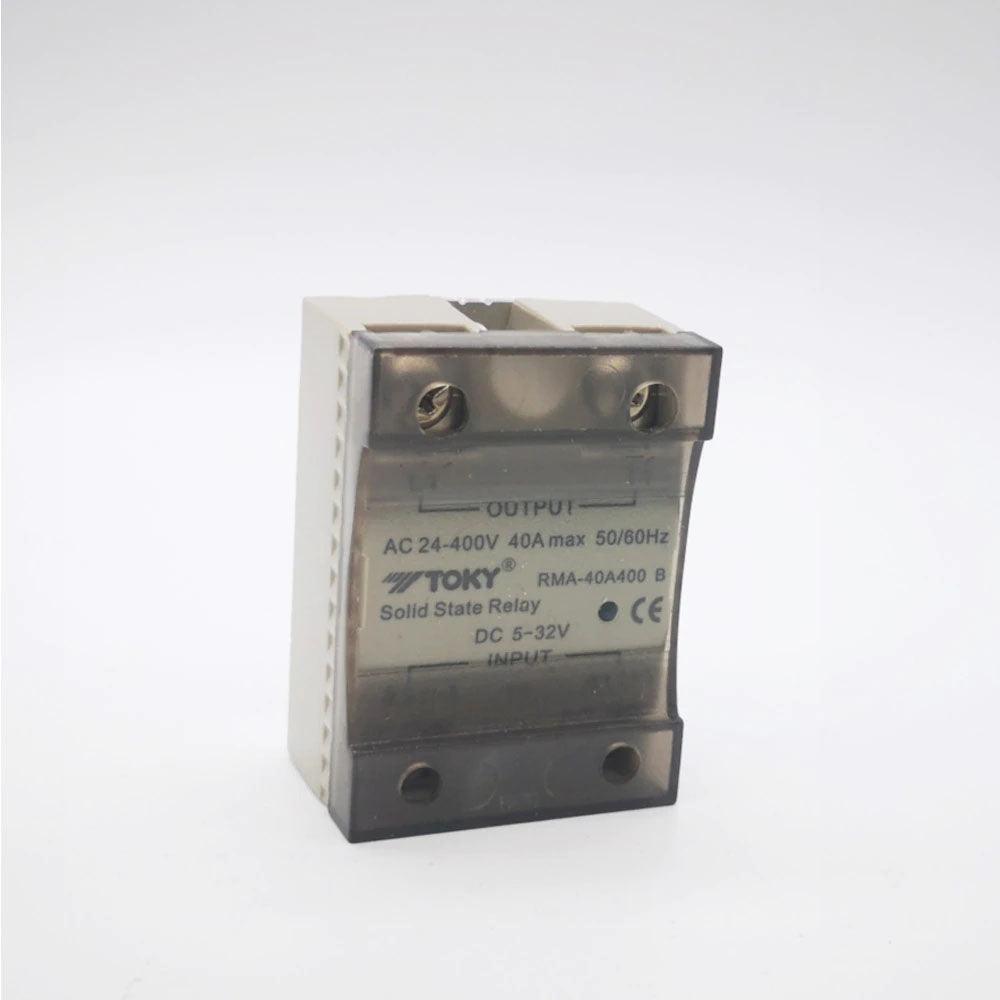

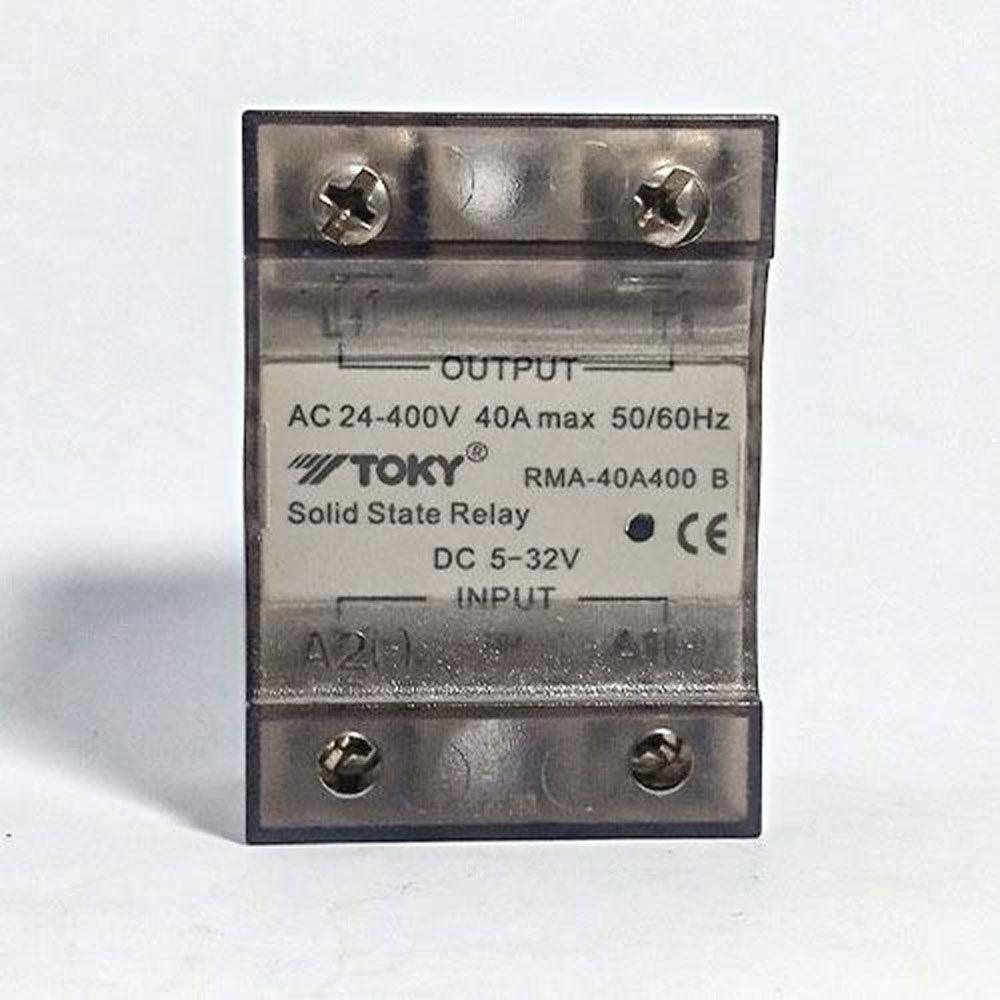

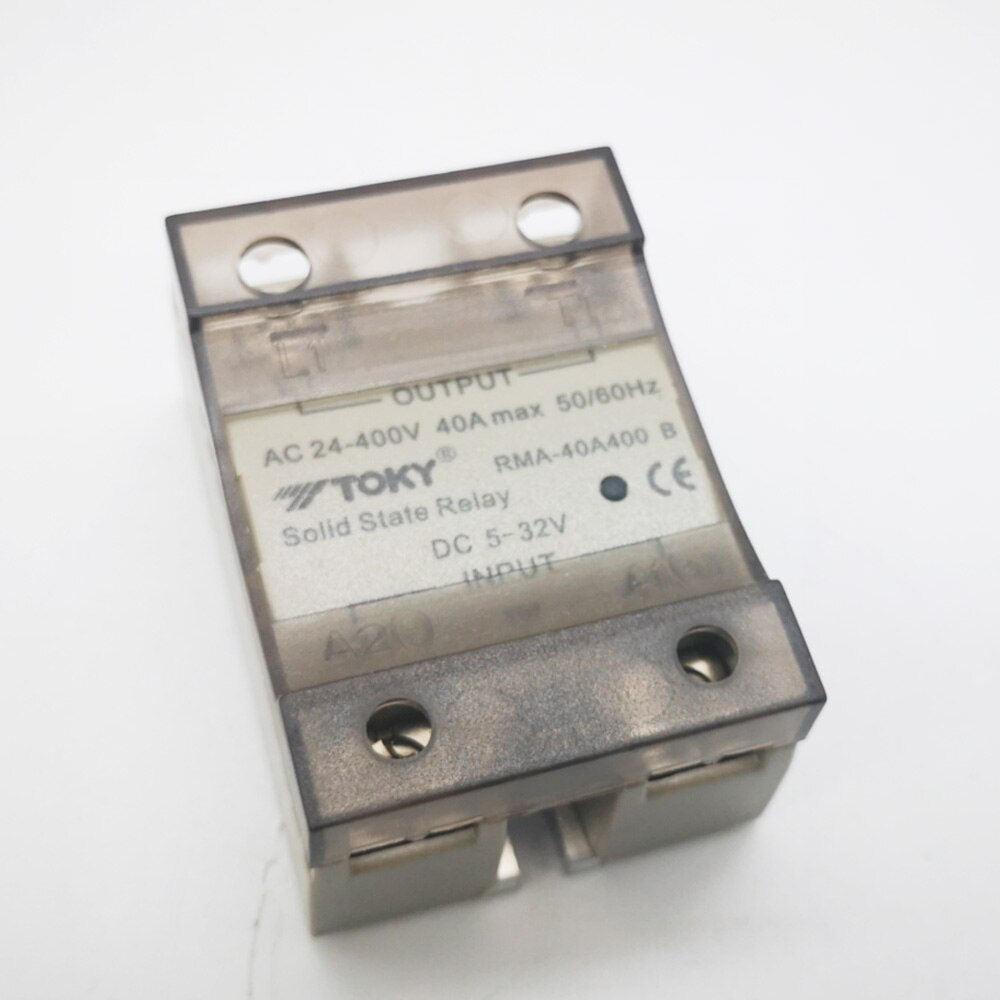

RMA-40A400 B-40Max Solid State Relay (Toky) fuse type ssr

BR4641

Rs 2,500
Rs 3,000 Rs 2,500
Sale Sold out

RMA-40A400 B-40Max Solid State Relay(Toky) in Pakistan BR4641

Description:

Toky RMA-40A400 model solid-state relay has 2 kinds of turn-on version: Zero-cross and Random. The Zero-cross turn-on version is energized when voltage meets the zero point (about +/- 15V) and disenergised when current meets the zero point, depending on the signal control on the input circuit. Random turn-on version is energized when input valid control signal, and if not input signal it is disenergised until the load current less than the holding current

Features:

  •  Using photoelectric coupling isolation, compressive strength can reach 2kv between the input-output - fin.
  •  Choose from multiple trigger modes to meet a variety of control requirements.
  •  RC filter circuit can absorb the instant surge to avoid malfunction occurs and to protect the chip
  •  Applied high-quality triac devices.
  •  The input applied constant current circuit to ensure the current constancy of the consumption between 5 ~ 32 v

Toky RMA series solid state relay 40A SSR has 2 kinds of turn-on version: Zero-cross and Random.

  • The Zero-cross turn-on version is energized when voltage meets the zero point (about +/- 15V) and deenergized1 when current meets the zero point, depending on the signal control on the input circuit.
  • Random turn-on version is energized when input valid control signal, and if not input signal it is de-energized until the load current is less than the holding current.

Specifications:

  •  Static dV/dt (Off-state): 100V/us.
  •  Dynamic dV/dt (On-state): 20V/us.
  •  On-State Voltage Drop (Max.): 2V.
  •  Switching voltage for zero: 15V.
  •  Isolation: 2,000Vac minimum.
  •  Operating Temperature Range: -30 to 75 C
  •  Turn-On Time (Max.): 10ms.
  •  Turn-Off Time (Max.): 10ms.
  •  Nominal frequency: 50/60Hz

Compression strength input-output

 ≥500MΩ

Insulation strength input-output

 2000Vrms
Input control range 5~32Vdc/90~280Vac
Input current ≤10mA(DC)/≤25mA(AC)
Voltage 24~400VAC 24~230VAC
Peak voltage 800Vp-p
Action response time ON<10ms, OFF<10ms
ON<10ms, OFF<10ms -20ºC~80ºC / -40ºC~100ºC





Best Online Shopping website for RMA-40A400 B-40Max Solid State Relay(Toky) Brandrethroad in Pakistan. Here you get RMA-40A400 B-40Max Solid State Relay(Toky) at a reasonable price in Karachi, Lahore, Islamabad, Rawalpindi, Peshawar, Quetta, Multan, and all over Pakistan.

Package Includes:

1 x RMA-40A400 B-40Max Solid State Relay(Toky)
