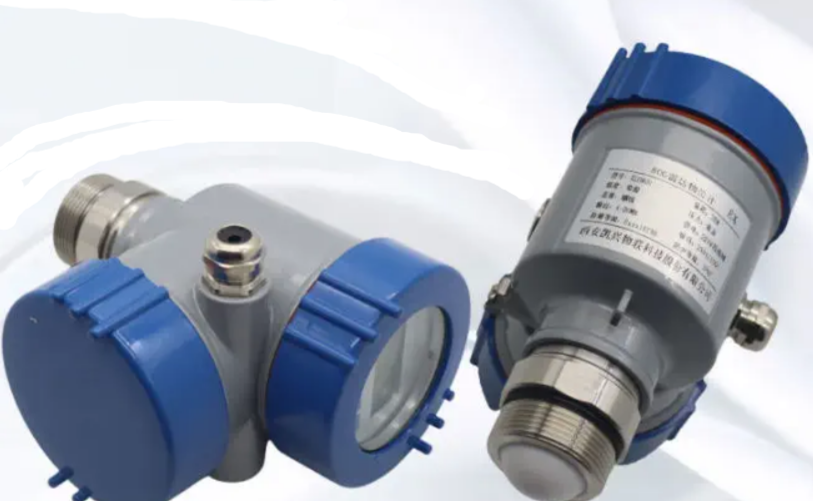

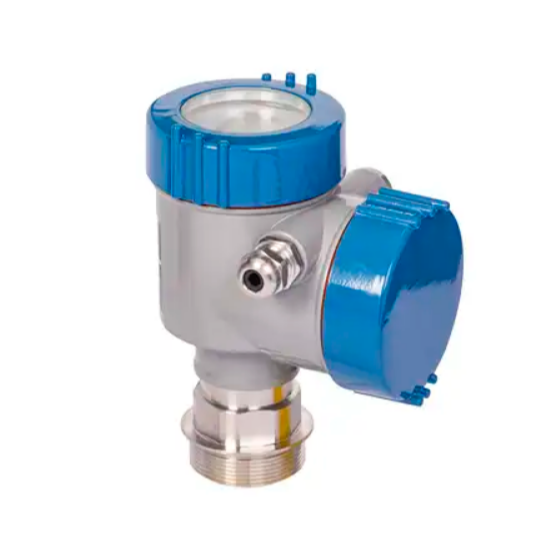

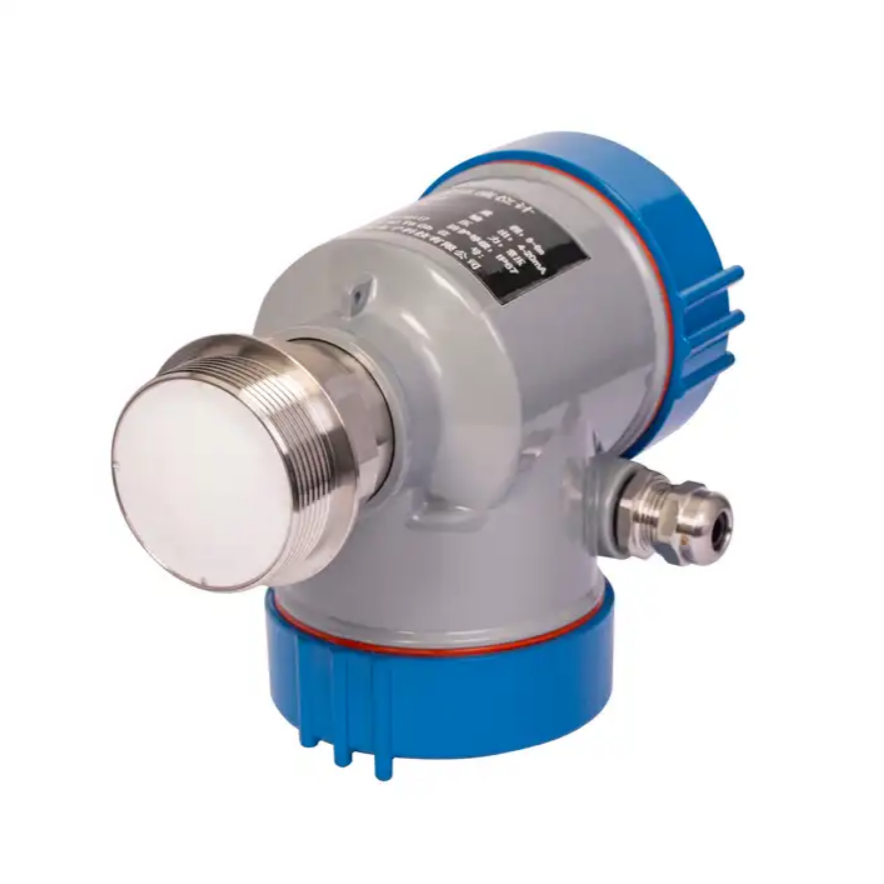

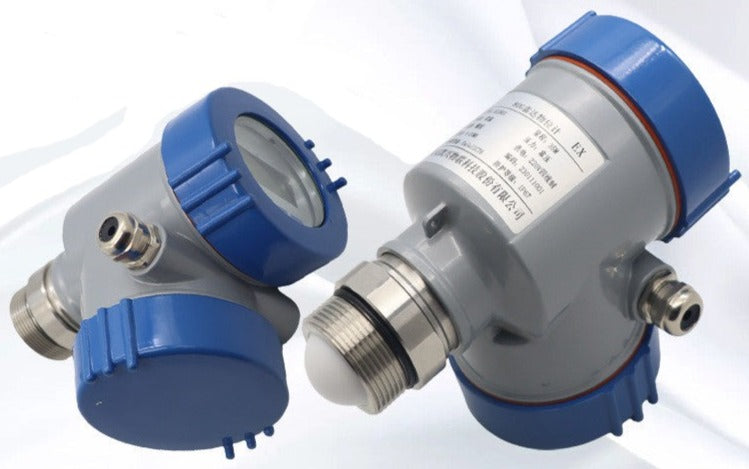

The SK-R800ND 80Ghz Radar Level Sensor is a high-precision, non-contact radar level sensor that is designed to measure the level of liquids and solids in a variety of applications. It uses a narrow beam of 80GHz radar to measure the distance to the surface of the medium, and it can be used to measure levels in tanks, silos, and other vessels up to 50 meters deep.

Features of SK-R800ND 80Ghz Radar Level Sensor:

• High precision (±2mm)
• Non-contact measurement
• Wide measurement range (0 to 50m)
• Suitable for a variety of liquids and solids
• Easy to install and use

Specification of SK-R800ND 80Ghz Radar Level Sensor:

• Measurement principle: 80GHz radar
• Measurement range: 0 to 50m
• Accuracy: ±2mm
• Output signal: 4-20mA, RS-485
• Power supply: 24V DC
• Operating temperature: -20°C to +80°C
• Protection class: IP67
• Process connection G2″A thread
• Process temperature: (-40~80)°C
• Process pressure: (0.1~ 1.6) MPa
• Signal output:(4-20)mA 24V DC Two Wire,Modus+HART
• Protection rating: IP 67
• Enclosure: Double cavity aluminum housing

Dimensions:

• Diameter: 76mm
• Length: 225mm

Uses:

• Measuring the level of liquids and solids in tanks, silos, and other vessels
• Monitoring inventory levels
• Controlling pumps and valves
• Preventing overfill and underfill conditions

Industryparts.pk is the Online Shopping website for SK-R800ND 80Ghz Radar Level Sensors. Here you get SK-R800ND 80Ghz Radar Level Sensor at a reasonable price in Karachi, Lahore, Islamabad, Rawalpindi, Peshawar, Quetta, Multan, and all over Pakistan.

Package includes:

• SK-R800ND 80Ghz Radar Level Sensor
