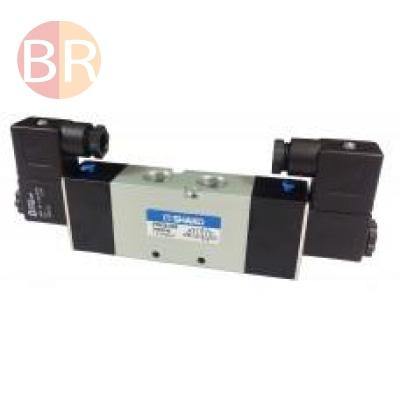

SHAKO Pressure PU520-02S

Regular price Rs 3,200
Regular price Sale price Rs 3,200
Sale Sold out
Br2938

SHAKO Pressure PU520-02S Br2938

Description:

  • Port 1/4" BSP or NPT thread
  • 5/2 way single or double acting or 5/3 way standard option exhaust or pressurised centre.
  • Pressure 1.5 ~ 8 bar, tested to 10 bar
  • Manifold available 2 to 10 station.
  • Medium size and large flow rate.
  • Lockable manual override for easy operation.
  • Aluminium body with surface anodizing treatment and strict quality control for long durability.
  • Coil IP65 100% ED duty cycle Class F DIN43650 or flying lead wire option 22/30mm ATEX EExmIIT4 or 36mm CSA and UL certified.
  • Temperature range ambient -10C to +60C.
  • Voltages standard 12vdc, 24vdc or 24v, 110v & 230vAC 50/60Hz, other voltages available upon request.
