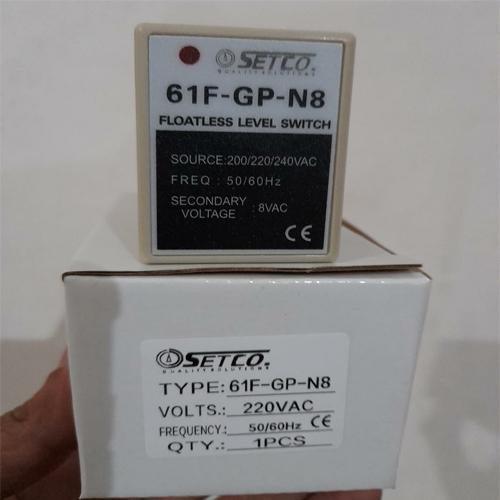

The 61F-GP-N8 can be used for single- or two-point level control of conductive materials, both liquids, and solids. These products are equipped with a red LED operation indicator.
Features:
- Low-voltage (AC) electrodes (8VAC or 24VAC)
- Operation range: 4-15kΩ, 70-300kΩ
- Detection method: conductive
- Probes need to be ordered separately
- Conforms to EMC and LVD directives, UL/CSA approved
Specifications:
- General-purpose Controller 61F-GP-N8
- Supply voltage: 24, 100, 110, 120, 200, 220, 230 or 240 VAC; 50/60 Hz
- Operating voltage range: 85% to 110% of rated voltage
- Interelectrode voltage: 8 VAC
- Interelectrode current: Approx. 1 mA AC max.
- Power consumption: Approx. 3.5 VA max.
- Interelectrode operate resistance: 0 to approx. 4 kΩmin
- Interelectrode release resistance: Approx. 15 K Ωmin
Industryparts.pk is the Best Online Shopping website for SETCO Floatless Level Switch, 61F-GP-N8. Here you get SETCO Floatless Level Switch, 61F-GP-N8 at a reasonable price in Karachi, Lahore, Islamabad, Rawalpindi, Peshawar, Quetta, Multan, and all over Pakistan.
Package Includes:
1 x SETCO Floatless Level Switch, 61F-GP-N8
