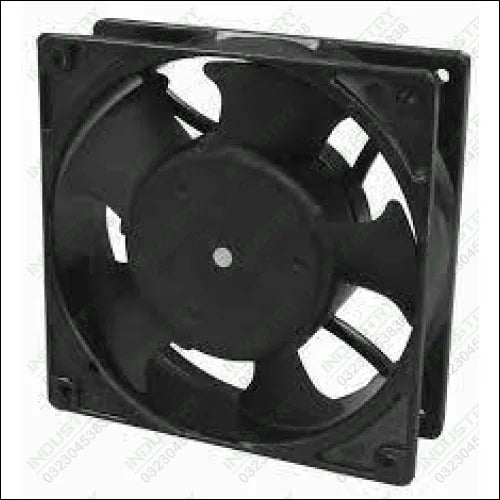

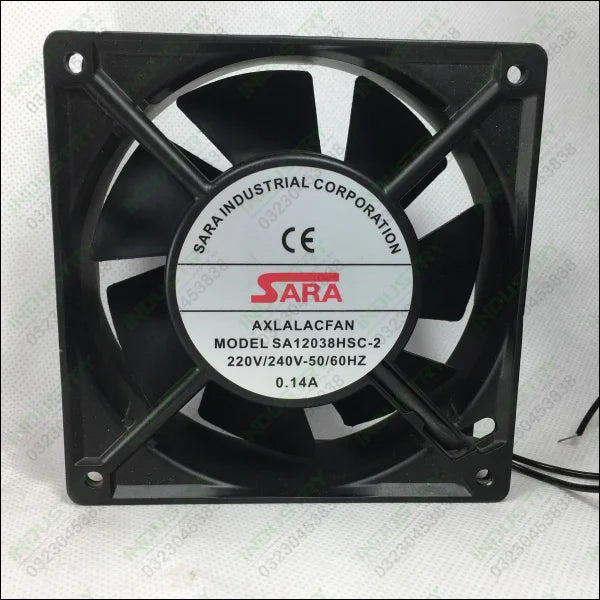

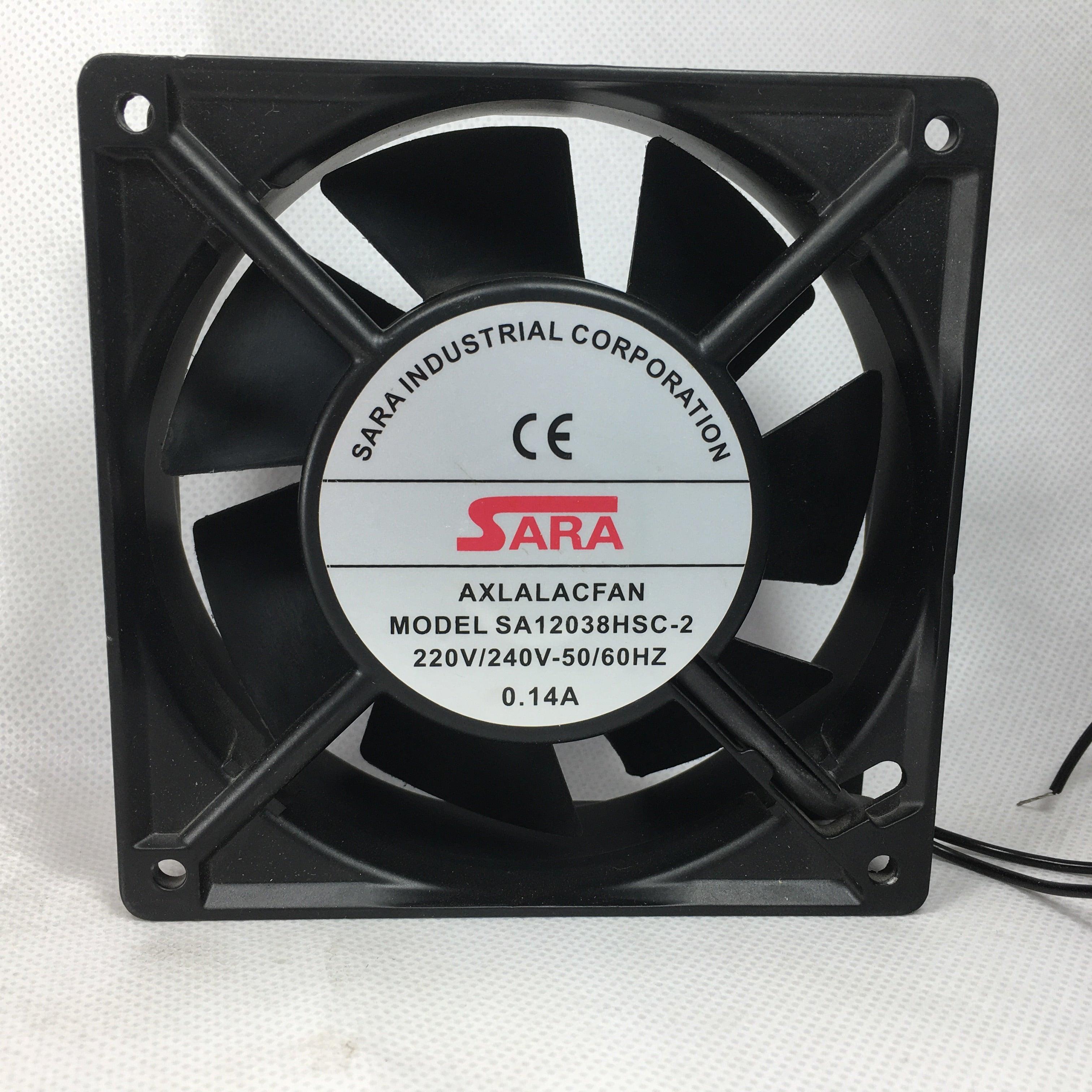

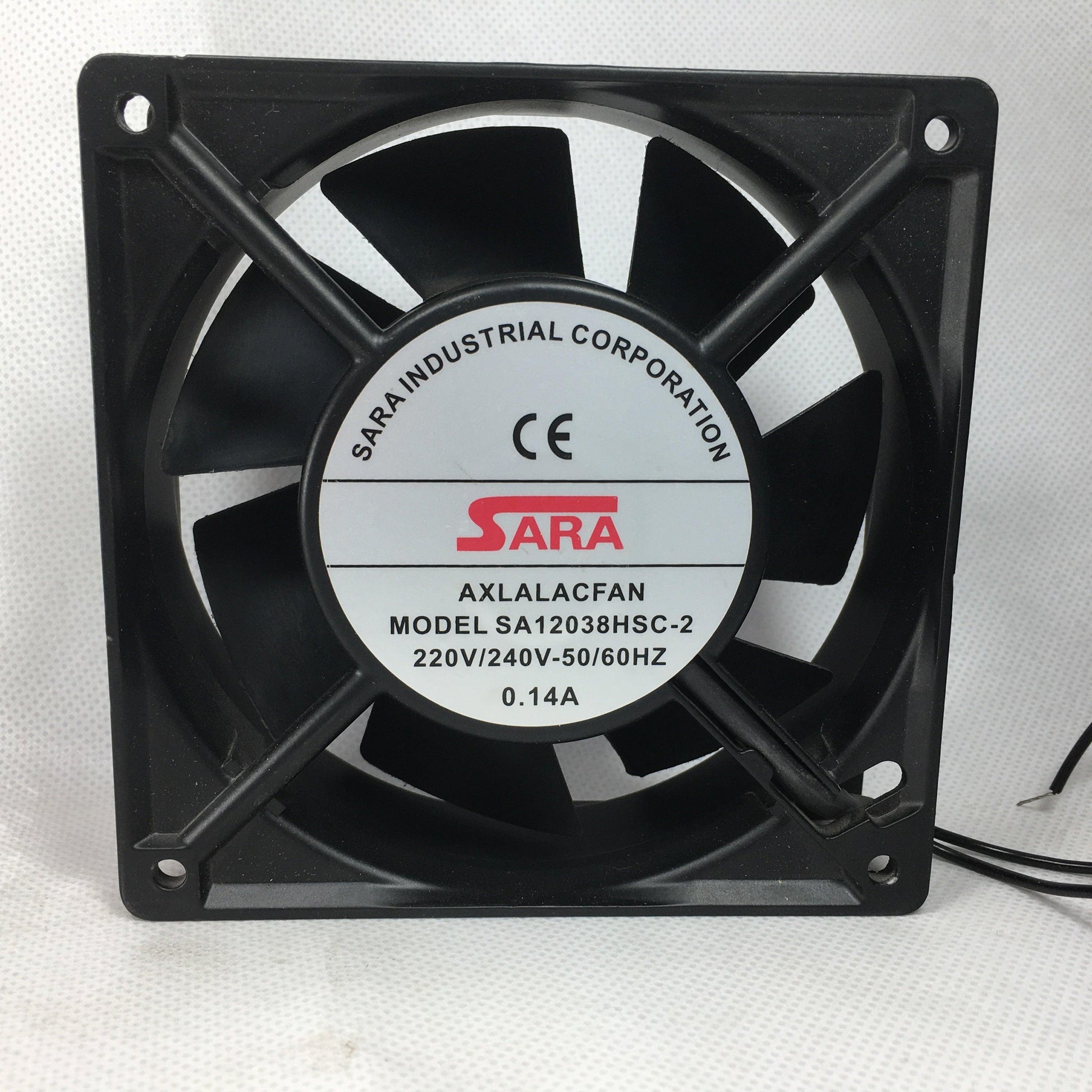

SA12038 Series AC Axial Fans in Pakistan
Regular price
Rs 0
Regular price
Sale price
Rs 0
Unit price
per
Couldn't load pickup availability
| MOTOR: | Shaded pole, impedance protected |
| HOUSING: | Die-cast aluminum, Painted black (AP) or plated (AN) |
| IMPELLER: | Glass reinforced thermoplastic, UL 94V-0 |
| BEARING | Two-ball or sleeve available |
| TERMINATION: | T-Terminal type or W-Lead wire type |
| OPERATING TEMPERATURE: | Ball type -20℃~+70℃;Sleeve type -10℃~+55℃ |
| OPERATION VOLTAGE RANGE: | 103 VAC to 126 VAC for 115V Type 207 VAS to 253 VAC for 230V Type |
| DIELETRIC STRENGTH: | 1 min. at 1,500VAC, 50/60Hz |
| INSULATION RESISTANCE: | 10M Ω min. @500 VDC |
| LIFE EXPECTANCY: | Ball bearing 60,000 hours at 60℃; Sleeve bearing 20,000 hours at 45℃ |
| WEIGHT: | 550gm(1.20 pound) |
Description
| MOTOR: | Shaded pole, impedance protected |
| HOUSING: | Die-cast aluminum, Painted black (AP) or plated (AN) |
| IMPELLER: | Glass reinforced thermoplastic, UL 94V-0 |
| BEARING | Two-ball or sleeve available |
| TERMINATION: | T-Terminal type or W-Lead wire type |
| OPERATING TEMPERATURE: | Ball type -20℃~+70℃;Sleeve type -10℃~+55℃ |
| OPERATION VOLTAGE RANGE: | 103 VAC to 126 VAC for 115V Type 207 VAS to 253 VAC for 230V Type |
| DIELETRIC STRENGTH: | 1 min. at 1,500VAC, 50/60Hz |
| INSULATION RESISTANCE: | 10M Ω min. @500 VDC |
| LIFE EXPECTANCY: | Ball bearing 60,000 hours at 60℃; Sleeve bearing 20,000 hours at 45℃ |
| WEIGHT: | 550gm(1.20 pound) |
