Micro 3phase Electronic Energy Meter in Pakistan
SKU:BR6452
Couldn't load pickup availability

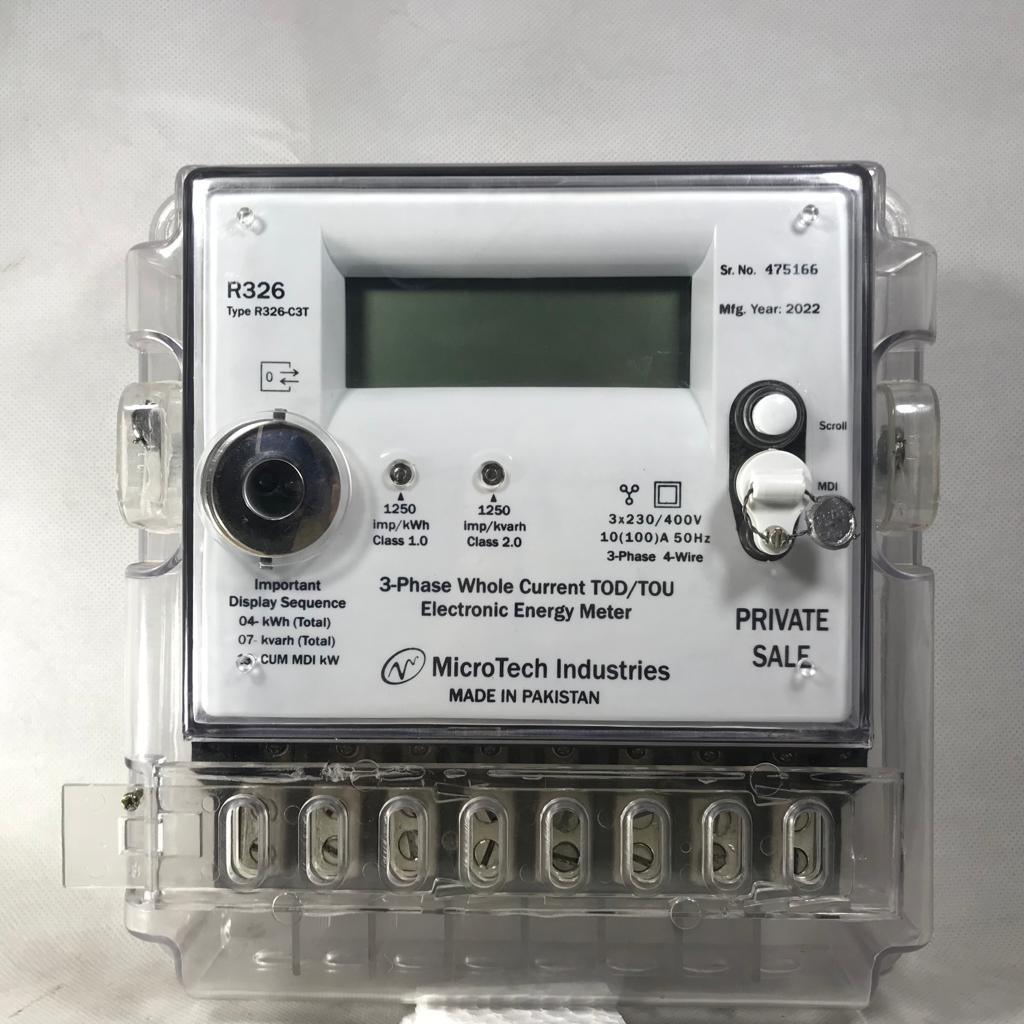

R326 is an advanced static three-phase whole current (TOD / TOU) energy meter with a built-in disconnect / reconnect feature. It is being used for residential and commercial connections. It is a unique product with DLMS/COSEM certification enabling it to be an ideal candidate for a multi-vendor environment. To resolve the menace of energy theft prevalent in the local market, R326 is carefully designed with stringent anti-tampering features. To offer the highest level of flexibility, it can operate as a standalone product or be integrated with various data collection and energy management tools.
Features:
- Fulfills IEC 62053-21 & 23, Accuracy Requirements.
- Complies to dlms/cosem Communication Protocol (Device Language Message Specification/Companion Specification for Energy Metering)
- Built-in Advanced GSM/GPRS Engine for Secure and Fast Data Communication
- GSM/GPRS Communication Status on LCD
- Measures Active and Reactive Energy and Power
- Load Profile Data Recording with Programmable Time Interval
- On Demand and Scheduled Meter Reading
- Customized Automatic Meter Reading Options i.e. Hourly, Daily, Weekly, Monthly, etc.
- Pulse Output Display on LED for kWh and vary for Field Testing
- Reading Display in Case of Power Outage/Failure
- Records Energy Accurately at Low/High Voltage
- Long Life, Clear, Wide, and High Contrast Display with Broad Viewing Angle
- Display Scroll and MDI Reset Buttons
- Phase Indication (A, B, C) and Indication of Load with Blinking Circle Around the Respective Phase on LCD
- Low Battery Indication on LCD
Specification:
- Operating Voltage: 3×230/400V
- Basic / Max Current: 10 / 100 A
- Reference Frequency: 50Hz
- Accuracy Class:
- For Active Energy Class 1.0
- For Reactive Energy Class 2.0
- Meter Constant: Active & Reactive 1250 imp. / kWh
- Starting Current: 40mA
- Power Consumption:
- Voltage Circuit Less than 2W, 10 VA 9
- Current Circuit Less than 4VA (at basic current)
Package includes:
1 x R326 Electronic Energy Meter
Industryparts.pk is the Online Shopping website for R326 Electronic Energy Meter. Here you get R326 Electronic Energy Meter at a reasonable price in Karachi, Lahore, Islamabad, Rawalpindi, Peshawar, Quetta, Multan, and all over Pakistan.
