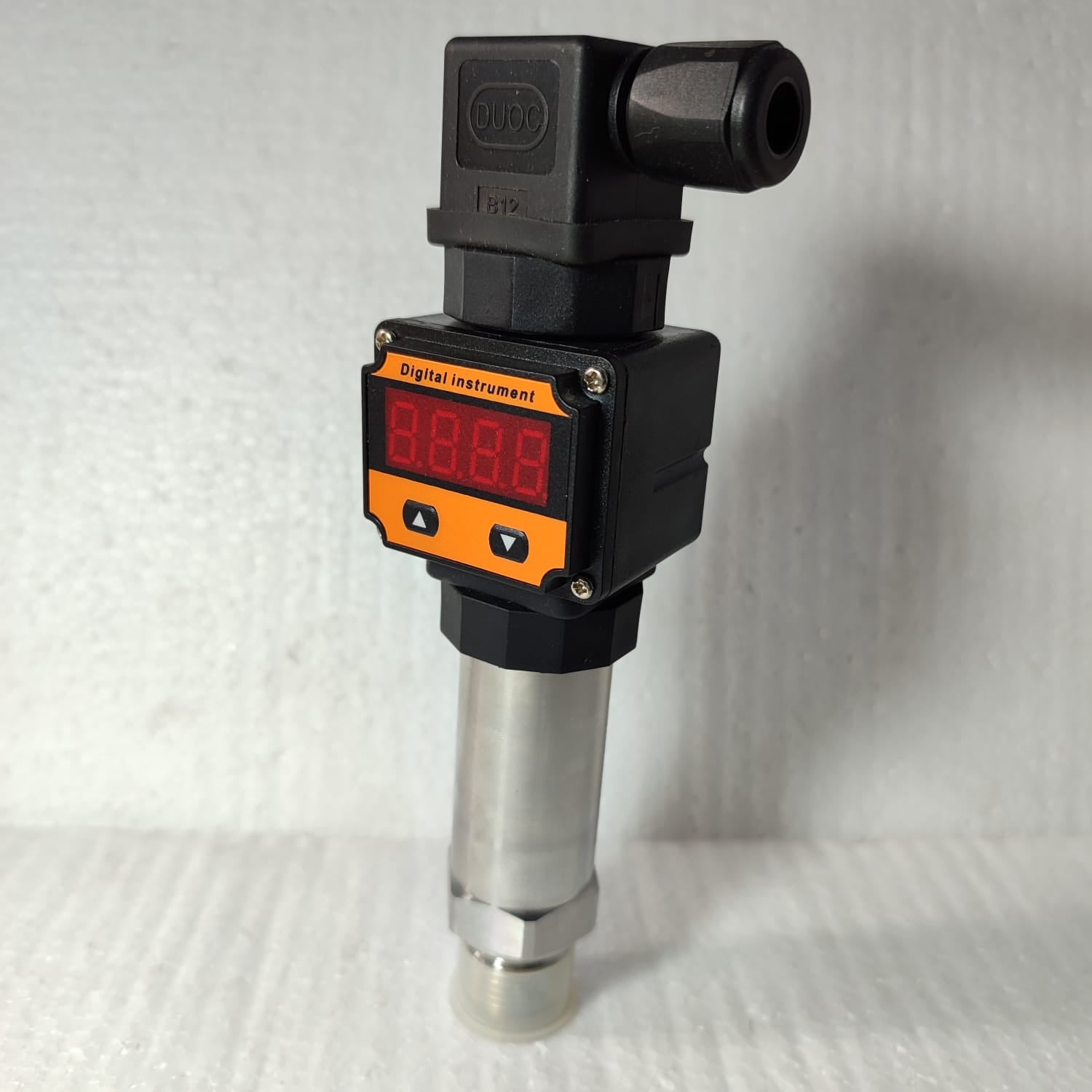

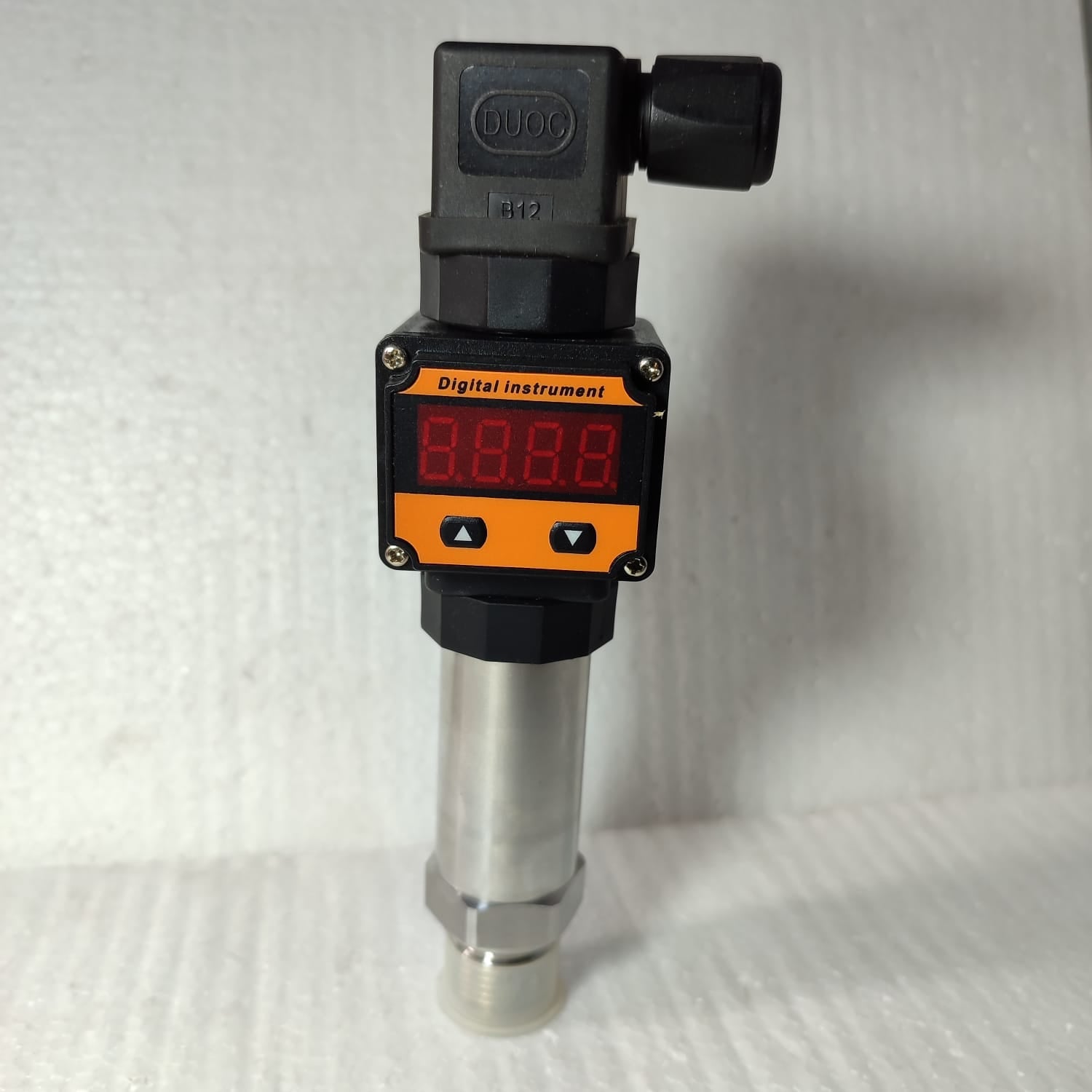

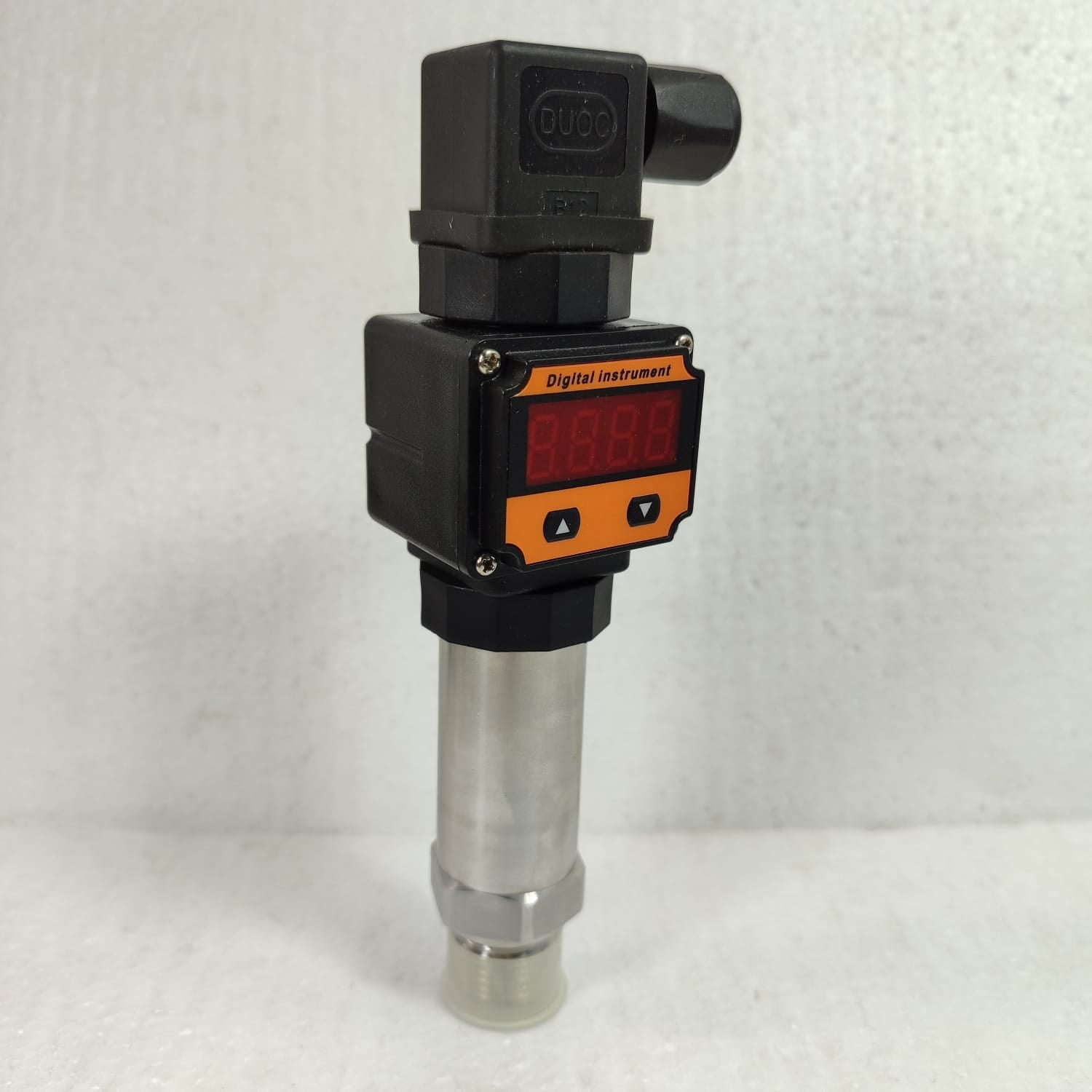

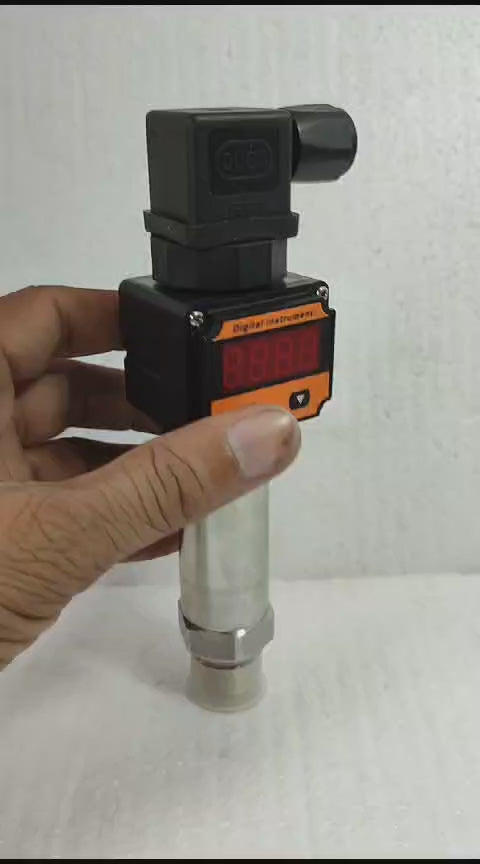

Pressure Sensor Transducer Sender 4-20mA DC24V with Digital Display in Pakistan
SKU:BR12243
Couldn't load pickup availability
The Pressure Sensor Transducer Sender 4-20mA DC24V with Digital Display is a versatile and reliable sensor that can be used to measure pressure in a variety of applications. It is a non-contact sensor, meaning that it does not need to physically touch the media it is detecting. This makes it ideal for applications where contact with the media is not possible or desirable. The sensor has a wide measuring range and high accuracy, making it suitable for a variety of industrial and commercial applications. It also features a digital display, which makes it easy to read the pressure readings.
Features of Pressure Sensor Transducer Sender:
- Measures pressure with high accuracy
- Non-contact sensor for non-intrusive measurements
- Wide measuring range for a variety of applications
- 4-20mA output for easy integration with control systems
- Digital display for easy reading of pressure values
- Compact and easy to install
Specification of Pressure Sensor Transducer Sender with Digital Display:
- Measuring range: 0-100bar
- Sensing type: Piezoelectric
- Output type: 4-20mA
- Supply voltage: DC 24V
- Current consumption: Max. 30mA
- Response frequency: 1kHz
- Material: Stainless steel
- Cable Stan. / material: Standard cable
- Protection structure: IP65
- Environment
- Ambient temperature: -25 to 70°C
- Storage temperature: -30 to 80°C
- Ambient humidity: 35 to 95% RH (no condensation)
- Storage humidity: 35 to 95% RH (no condensation)
Dimensions:
- Diameter: 30mm
- Length: 60mm
Uses:
- Measuring pressure in a variety of applications, including:
- Hydraulic systems
- Pneumatic systems
- Process control
- HVAC systems
- Water and wastewater treatment
Industryparts.pk is the Online Shopping website for Pressure Sensor Transducer Sender 4-20mA DC24V with Digital Display. Here you get Pressure Sensor Transducer Sender 4-20mA DC24V with Digital Display at a reasonable price in Karachi, Lahore,
Islamabad, Rawalpindi, Peshawar, Quetta, Multan, and all over Pakistan.
Package includes:
- Pressure Sensor Transducer Sender 4-20mA DC24V with Digital Display
- User manual
- Mounting bracket
