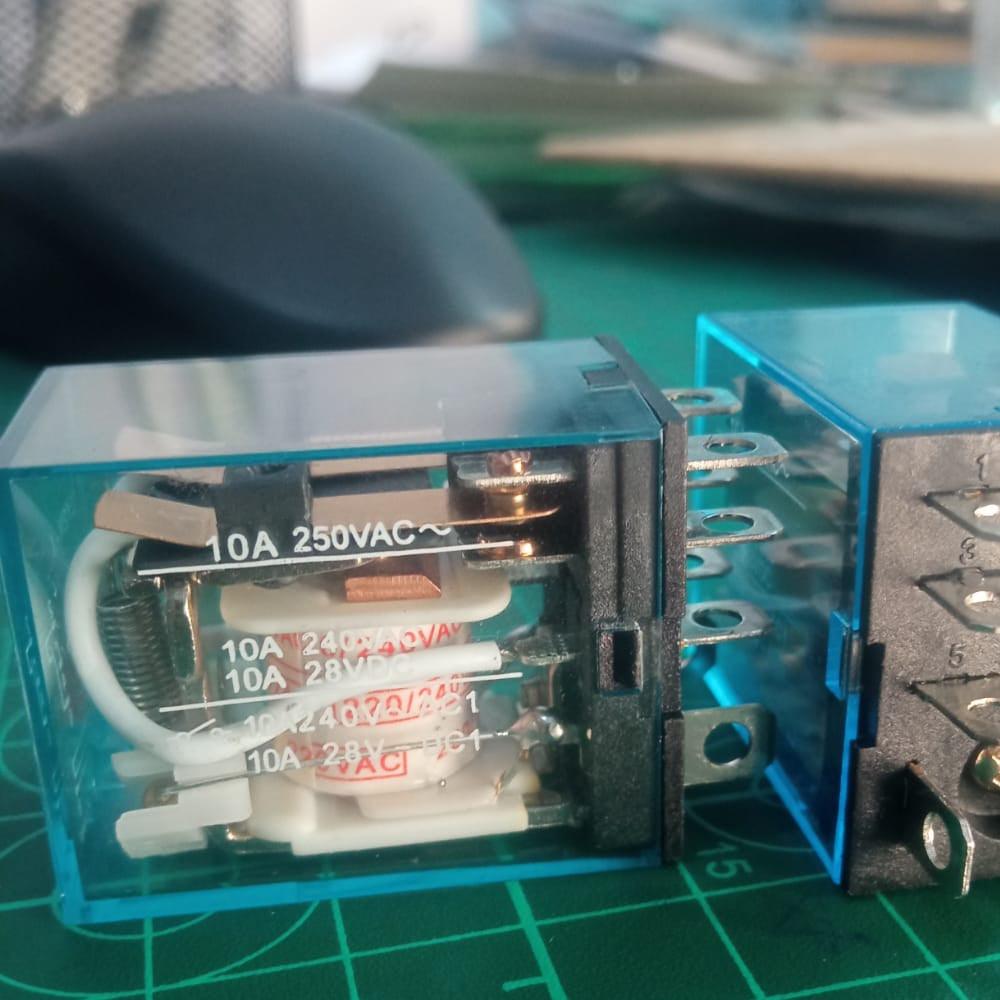

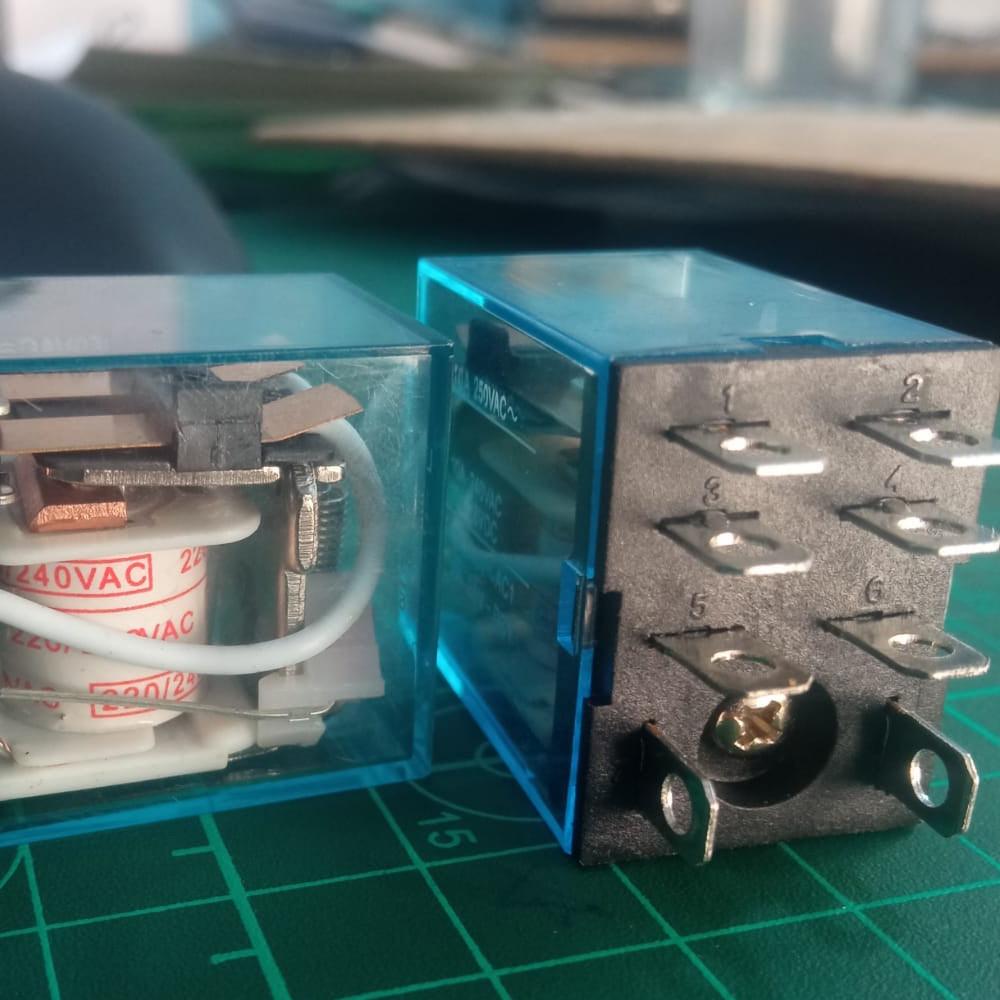

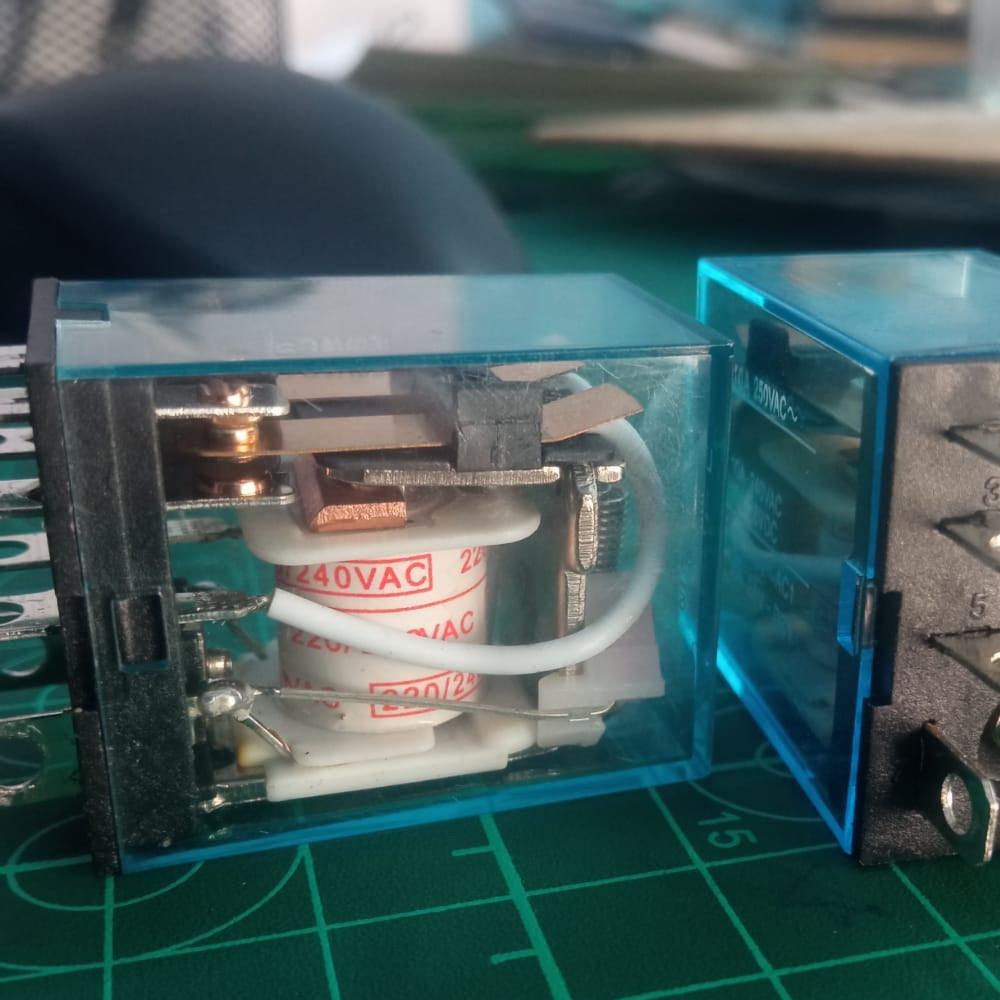

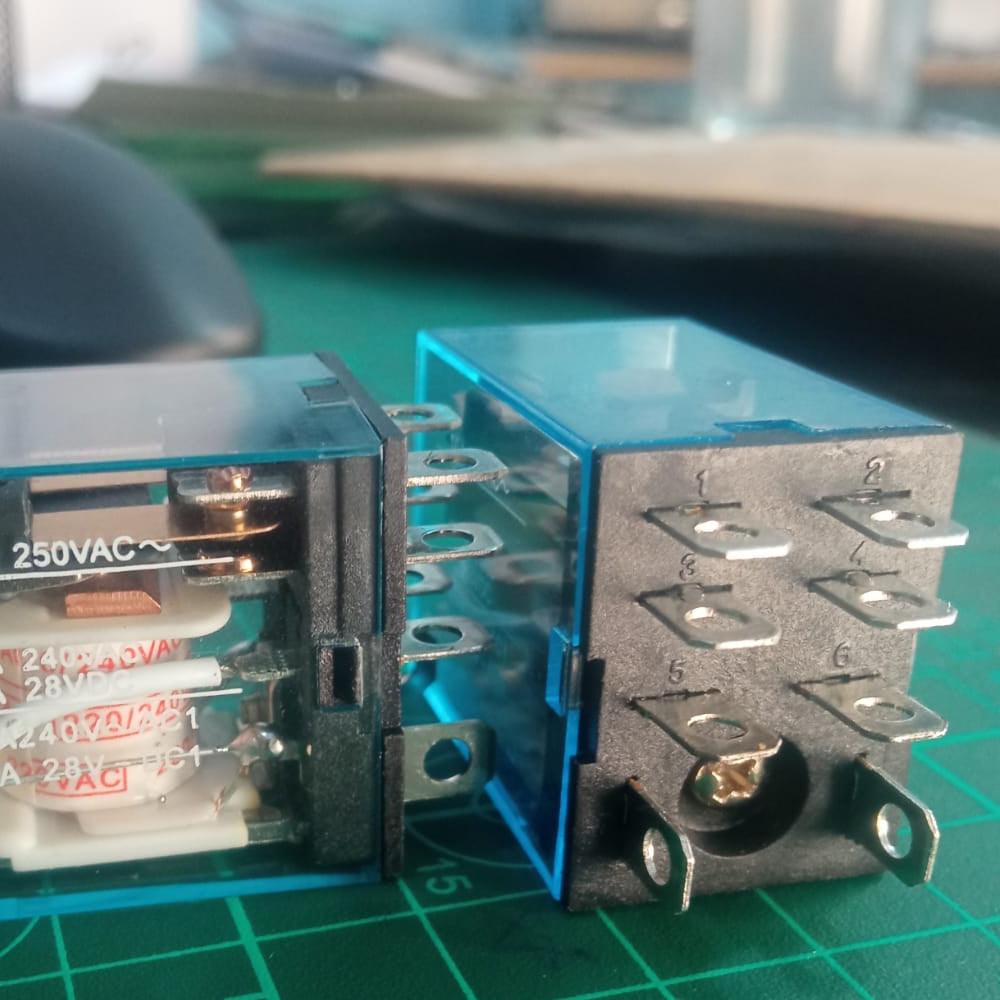

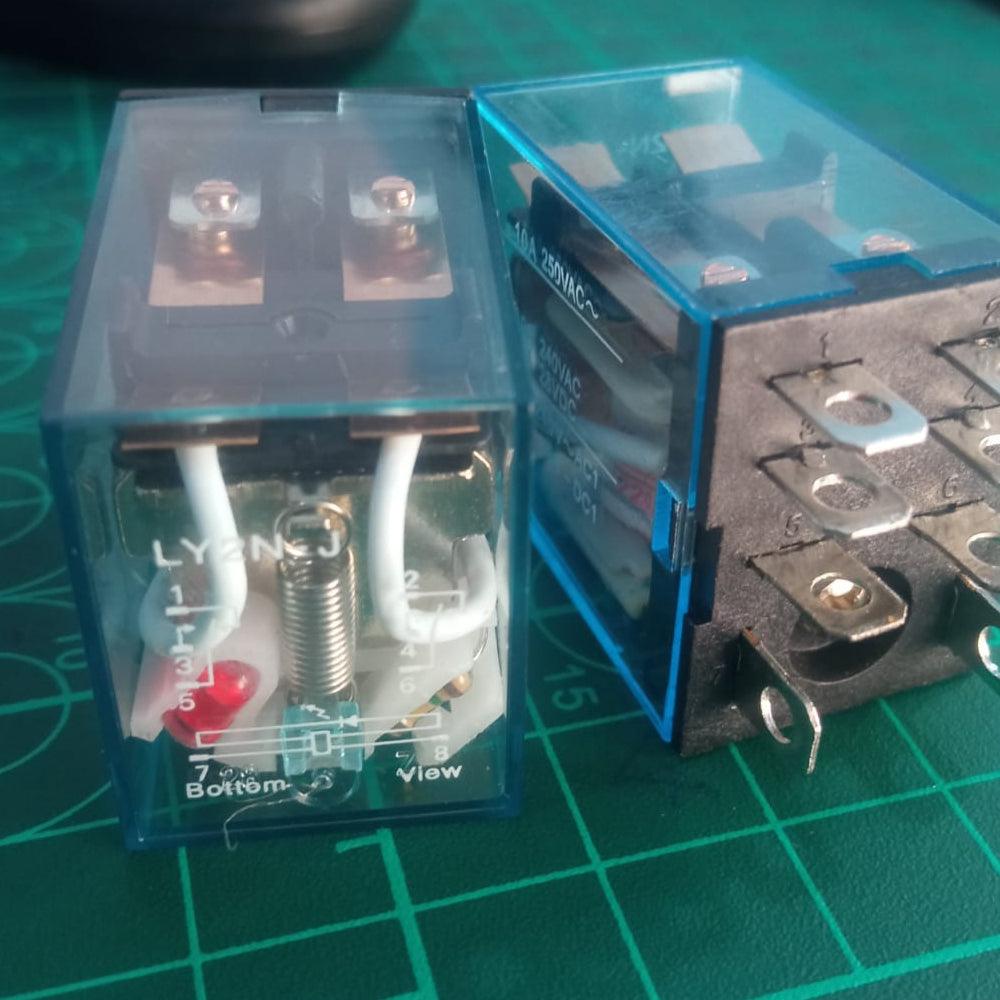

Power Relay LY2N-J in Pakistan

2 total reviews

Regular price Rs 750
Regular price Rs 1,200 Sale price Rs 750
Sale Sold out
BR2412

A power relay is a device that uses an electromagnet to open or close a circuit when the input (coil) is correctly excited. They provide a high level of isolation between the control signal (coil) and the output (contacts) – typically with a rated impulse voltage of 4 or 6kV.

Specification:

  • Item type: Power Relay
  • Model: LY2NJ
  • Coil voltage: DC12V
  • Coil Power: DC (W): 0.9AC and less (VA): 1.2 and less
  • Contact capacity: 10A 250VAC
  • Pull-in voltage: 80% (V) and less
  • Release voltage: DC: 10% (V) and more, AC:3 0% and more
  • Contact resistance: 50 (mΩ) and less
  • Insulation resistance: 100 (mΩ) and less
  • Dimensions: 27.5 * 21 * 35.3mm
  • Terminals form: Socket
  • Action time: 20ms or less
  • Reset Time: 20ms or less
  • Operating frequency:
  • Mechanical 18,000 cycles / hour
  • Electrical 18,000 times / hour

Package includes:

          1 x Power Relay LY2N-J

Industryparts.pk is the Online Shopping website for Power Relay LY2N-J. Here you get Power Relay LY2N-J at a reasonable price in Karachi, Lahore, Islamabad, Rawalpindi, Peshawar, Quetta, Multan, and all over Pakistan.

Power Relay LY2N-J in Pakistan
Power Relay LY2N-J in Pakistan
Power Relay LY2N-J in Pakistan
Power Relay LY2N-J in Pakistan

Description

A power relay is a device that uses an electromagnet to open or close a circuit when the input (coil) is correctly excited. They provide a high level of isolation between the control signal (coil) and the output (contacts) – typically with a rated impulse voltage of 4 or 6kV.

Specification:

  • Item type: Power Relay
  • Model: LY2NJ
  • Coil voltage: DC12V
  • Coil Power: DC (W): 0.9AC and less (VA): 1.2 and less
  • Contact capacity: 10A 250VAC
  • Pull-in voltage: 80% (V) and less
  • Release voltage: DC: 10% (V) and more, AC:3 0% and more
  • Contact resistance: 50 (mΩ) and less
  • Insulation resistance: 100 (mΩ) and less
  • Dimensions: 27.5 * 21 * 35.3mm
  • Terminals form: Socket
  • Action time: 20ms or less
  • Reset Time: 20ms or less
  • Operating frequency:
  • Mechanical 18,000 cycles / hour
  • Electrical 18,000 times / hour

Package includes:

          1 x Power Relay LY2N-J

Industryparts.pk is the Online Shopping website for Power Relay LY2N-J. Here you get Power Relay LY2N-J at a reasonable price in Karachi, Lahore, Islamabad, Rawalpindi, Peshawar, Quetta, Multan, and all over Pakistan.

Power Relay LY2N-J in Pakistan
Power Relay LY2N-J in Pakistan
Power Relay LY2N-J in Pakistan
Power Relay LY2N-J in Pakistan
