SHAKO has dedicated its entire resources to the field of pneumatic cylinder (Air cylinder) products. "SHAKO" created brand has established a fine reputation worldwide. SHAKO name has become the preferred choice for pneumatic cylinder products in more than 30 countries. Indeed, SHAKO has a symbol of high quality. The company having accumulated over 20 years of experience and a proven record of accomplishment of developing new pneumatic air cylinder products, we are now dedicated ourselves to accelerate our R&D effort's even further so as to be ready for the 21st Century and our next milestone. Other pneumatic cylinders, pneumatic actuator (air actuator) OEM and ODM projects are welcome, we offer high volume deal with special price deal.
Features:
- Identical to SMC mounting hole
- Precision and no vibration.
- Endurable and strong mechanism.
- SUS440C gripper provides a long life of product.
- Aluminum alloy body with hard anodizing for wear and corrosion resistance.
Specifications:
- Port size: M3, M5
- Fluid: compressed air
- Acting: Double acting
-
Operating pressure range:
•Fulcrum type：1.0~6.1 kgf/cm²
•Parallel type：1.0~7 kgf/cm² - Max. operating pressure: 7 kgf/cm²
- Lubrication: not required
- Body material: aluminum alloy (6061T6)
- Gripper material: SUS(Parallel type ), S45C(Fulcrum type)
- Magnet: built-in
- Ambient temperature: 0℃ to 60℃
- Operating frequency: HPS: 160 c.pm. HYS:180 cpm
- Operating angle (For HYS): -10°～ 30°
Industryparts.pk is the Best Online Shopping website for Pneumatic Actuator Cylinder Series Mini Chuck in Pakistan. We deliver in Karachi, Lahore, Islamabad, Rawalpindi, Peshawar, Quetta, Multan, and all over Pakistan.
Package includes:

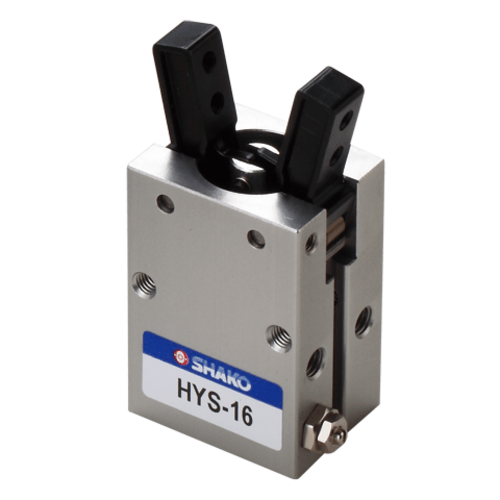

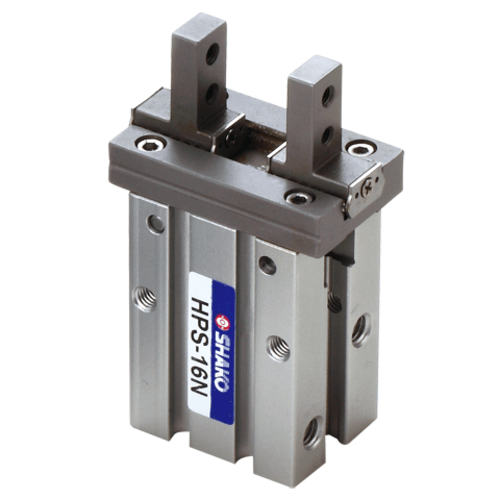

1 x Pneumatic Actuator Cylinder Series Mini Chuck
| Model |
HPS10W, HPS16W, HPS20W, HPS25W, HPS10N, HPS16N, HPS20N, HPS25N, HYS10W, HYS16W, HYS20W, HYS25W, HYS10N, HYS20N, HYS25N |
|---|---|
| Size |
10, 16, 20, 25 |
