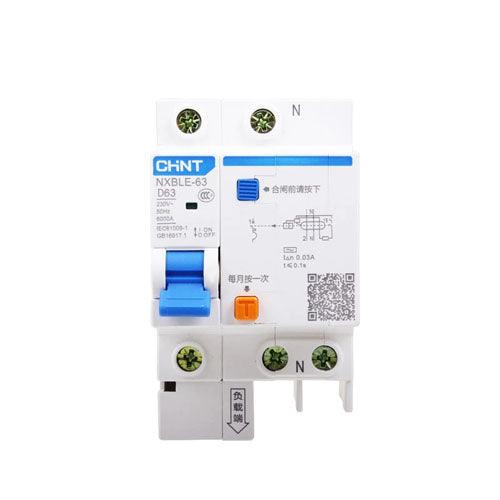

NXBLE-63 1P+N Residual Current Operated Circuit Breaker CHINT RCBO in Pakistan

The CHINT NXBLE-63 1P+N Residual Current Operated Circuit Breaker (RCBO) is a safety device designed to protect single-phase electrical circuits from both overcurrent/short circuits and residual current (earth leakage) faults. The "1P+N" configuration signifies that it includes one pole for the live wire and a neutral pole. With a 63A rating, it's suitable for moderate to high current loads. This RCBO combines the functions of a miniature circuit breaker (MCB) and a residual current device (RCD) in a single unit, providing comprehensive protection against electrical hazards. It's commonly used in residential and commercial applications to prevent electric shock and electrical fires by quickly disconnecting the circuit when a leakage current is detected.

Features:

• 1P+N Configuration: Provides protection for single-phase circuits with neutral.
• RCBO Functionality: Combines MCB (overcurrent/short circuit) and RCD (residual current/earth leakage) protection.
• Residual Current Sensitivity: (Specify sensitivity, e.g., 30mA, if known. Often 30mA, for human protection)
• Thermal-Magnetic Trip: Protects against overloads and short circuits.
• DIN Rail Mounting: Easy installation in distribution boards.
• Wide Ampere Range: Available in multiple ampere ratings.
• Visual Trip Indication: Indicates tripped status.
• Test Button: allows users to test the RCD functionality.


Specifications:

• Model: CHINT NXBLE-63
• Number of Poles: 1P+N
• Rated Voltage (Un): 230V AC
• Rated Current (In): 16A, 20A, 25A, 32A, 40A, 63A.
• Breaking Capacity (Icn): (Specify breaking capacity in kA)
• Residual Current Sensitivity (IΔn): (Specify, e.g., 30mA)
• Trip Curve: (Specify trip curve, e.g., B, C, or D)
• Mounting: DIN rail
• Frequency: 50/60Hz


Uses:

• Residential distribution
• Commercial distribution
• Sensitive equipment
• Lighting circuits
• Appliance circuits
• RCD and overcurrent protection

Package includes:

• 1x NXBLE-63 1P+N Residual Current Operated Circuit Breaker

Industryparts.pk is the Online Shopping website for NXBLE-63 1P+N Residual Current Operated Circuit Breaker. Here you get NXBLE-63 1P+N Residual Current Operated Circuit Breaker at a reasonable price in Karachi, Lahore, Islamabad, Rawalpindi, Peshawar, Quetta, Multan, and all over Pakistan.
