"Proximity Sensor" includes all sensors that perform non-contact detection in comparison to sensors, such as limit switches, that detect objects by physically contacting them. Proximity Sensors convert information on the movement or presence of an object into an electrical signal.

Specification:

• Switching element function: PNP NO
• Rated operating distance: 0.8 mm
• Installation: flush
• Output polarity: DC
• Assured operating distance: 0 ... 0648 mm
• RAL reduction factor: 0.45
• Reduction factor RCU: 0.4
• R304 Reduction factor: 0.85
• Nominal ratings
• Operating voltage: 10 ... 30 V
• Switching frequency 0 ... 3000 Hz
• Hysteresis: typ. 5%
• Reverse polarity protection: reverse polarity protected
• Short-circuit protection: pulsing
• Voltage drop; ? 2 V
• Operating current: 0 ... 200 mA
• Off-state current: 0 ... 0.1 mA typ. 0.1 μA at 25 ° C
• No-load supply current: 10 mA
• Switching state indicator: LED, yellow

Package includes:

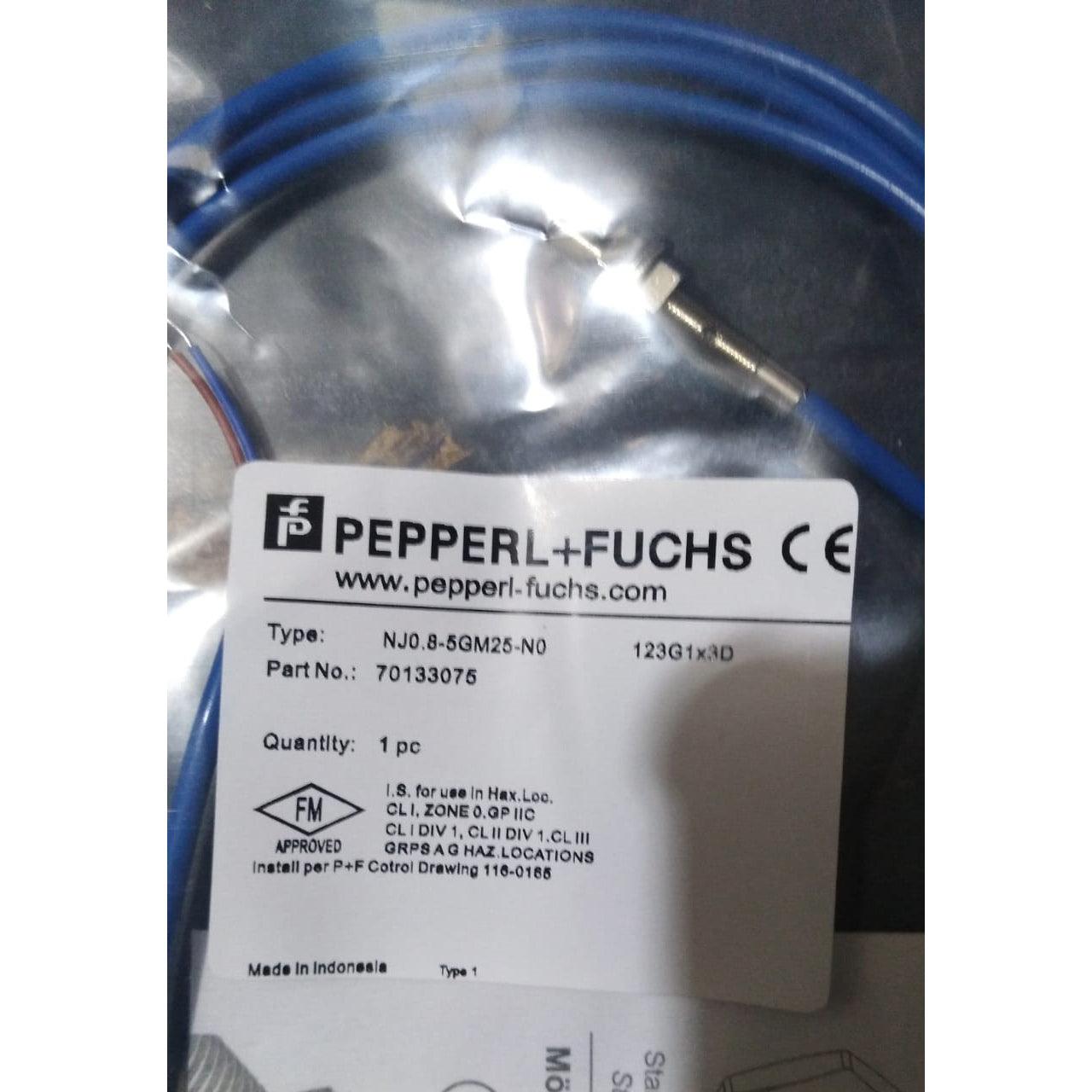

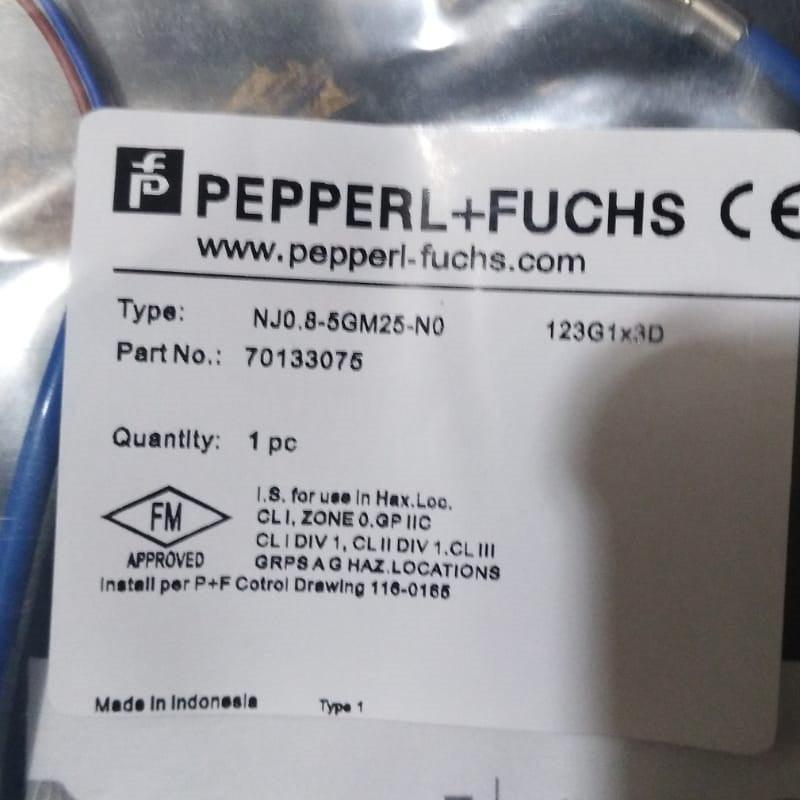

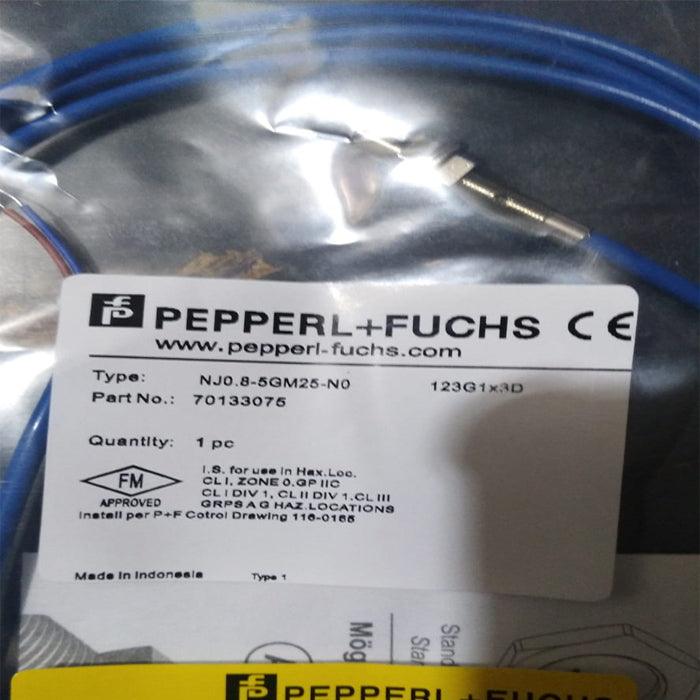

          1 x NJ0.8-5GM25-N0 Proximity Sensor Switch

Industryparts.pk is the Online Shopping website for NJ0.8-5GM25-N0 Proximity Sensor Switch. Here you get NJ0.8-5GM25-N0 Proximity Sensor Switch at a reasonable price in Karachi, Lahore, Islamabad, Rawalpindi, Peshawar, Quetta, Multan, and all over Pakistan.
