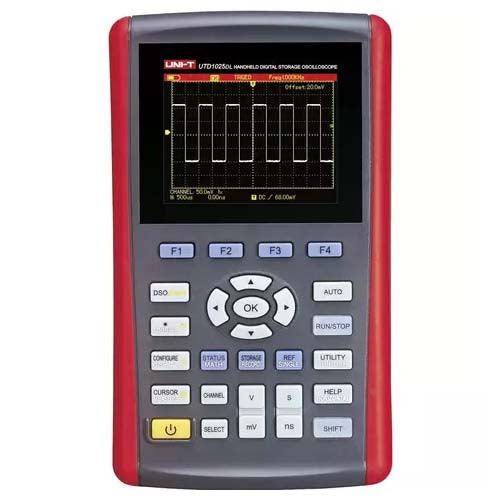

Handheld Digital Oscilloscope UNI-T UTD1050DL in Pakistan

Regular price Rs 66,660
Regular price Rs 67,000 Sale price Rs 66,660
Sale Sold out
BR3295

UNI-T UTD1050DL is a dual-channel lightweight, handheld oscilloscope with 50 MHz bandwidth and 250 MS/s sample rate. UNI-T UTD1050DL handheld digital oscilloscope also performs multimeter measuring functions: AC/DC voltage and current, resistance, capacity, diode, and continuity tests.

Features:

  • 3.5-inch color LCD (320 × 240)
  • Trigger types: Edge, Pulse, Video, Slope
  • Multimeter functions:
    • DC voltage and current
    • AC voltage and current
    • Resistance
    • Capacitance
    • Continuity check
    • Diode test

Specifications:


  • Bandwidth 50 MHz
  • Rise time ≤ 7 ns
  • Real-time sampling rate 250 MS/s
  • Vertical sensitivity 5 mV/div ~ 20 V/div
  • Record length (max) 12 kpts
  • Timebase range 10 ns ~ 50 s/div
  • Trigger type Edge, Pulse, Video and Slope
  • Multimeter
  • DC voltage 400 mV / 4 V / 40 V / 400 V: ±(1%+5)
  • AC voltage 400 mV / 4 V / 40 V / 400 V: ±(1.2%+5)
  • DC current 400 μA / 4000 μA / 40 mA / 400 mA / 4 A: ±(1.5%+5)
  • AC current 400 μA / 4000 μA / 40 mA / 400 mA / 4 A: ±(2.5%+5)
  • Resistance 400 Ω / 4 kΩ / 40 kΩ / 400 kΩ / 4 MΩ / 40 MΩ: ±(1.2%+5)
  • Capacitance 51.20 nF / 512 nF / 5.120 μF / 51.20 μF / 100 μF: ±(3%+5)
  • General characteristics
  • Max.display 4000
  • LCD size 3.5"
  • Power power supply 100-220 V, 50/60 Hz
  • battery 7.4 V, 3600 mAh
  • Dimensions 199 × 118 × 49 mm
  • Weight 0.9 kg

Package Includes:

1 x Handheld Digital Oscilloscope UNI-T UTD1050DL

Industryparts.pk is the Best Online Shopping website for Handheld Digital Oscilloscope UNI-T UTD1050DL. Here you get Handheld Digital Oscilloscope UNI-T UTD1050DL at a reasonable price in Karachi, Lahore, Islamabad, Rawalpindi, Peshawar, Quetta, Multan, and all over Pakistan.
