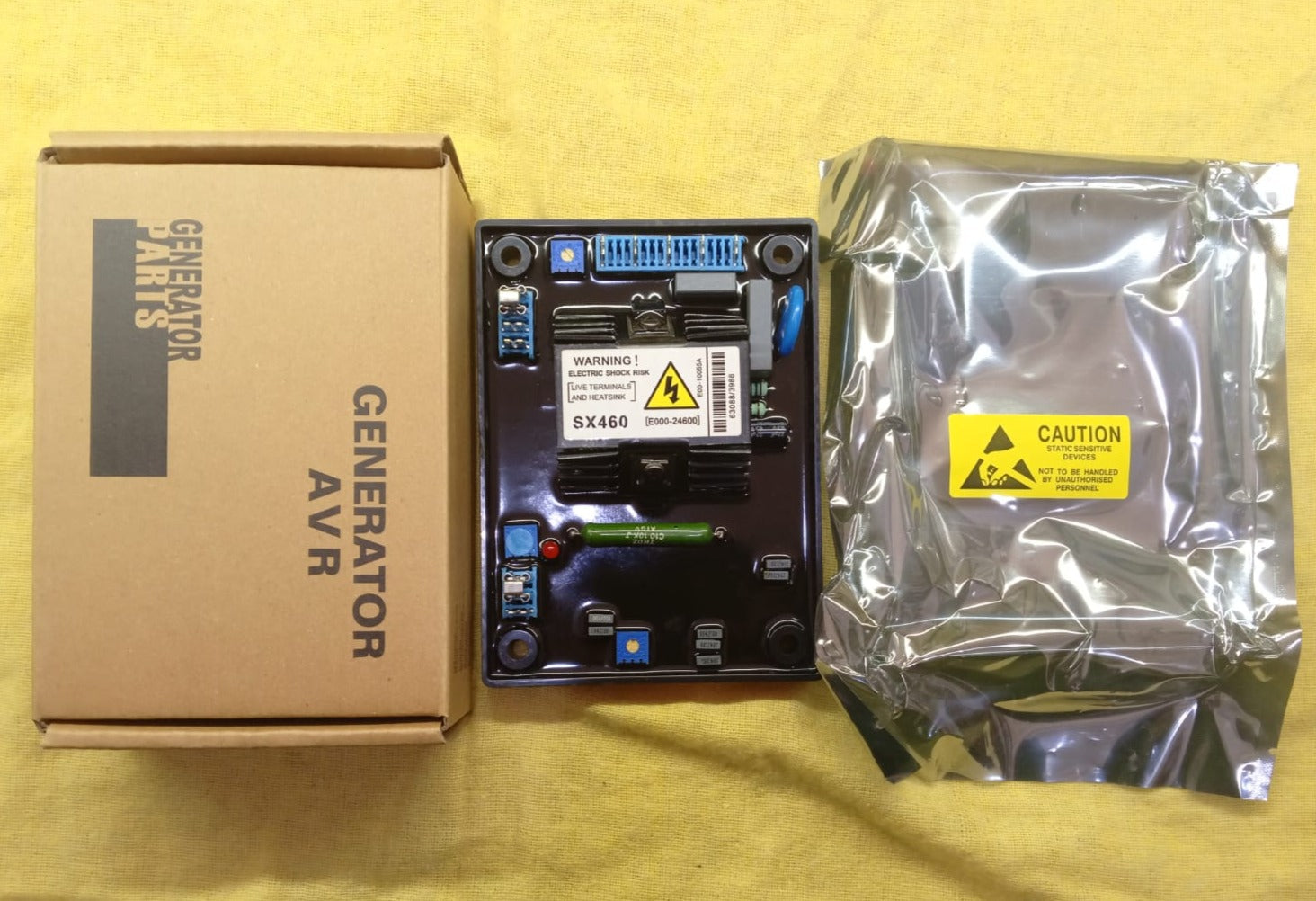

The GENERATOR SX460 AVR is an automatic voltage regulator (AVR) designed for use with the Stamford SX460 brushless generator. It is a half-wave phase-controlled thyristor type AVR and forms part of the excitation system for the generator. The AVR is responsible for regulating the output voltage of the generator to ensure that it is within the specified range, even under varying load conditions.

Features of GENERATOR SX460 AVR:

• Regulates the output voltage of the generator
• Improves generator stability
• Protects the generator from overvoltage and under-voltage conditions
• Easy to install and maintain

Specification of GENERATOR SX460 AVR:

• Input voltage: 95-132V AC or 190-264V AC
• Input frequency: 50-60 Hz
• Output voltage: Max 90V DC at 207V AC input
• Output current: Continuous 4 A DC, Intermittent 6 A for 10 secs
• Resistance: 15 ohms minimum
• Regulation: +/-1.0%
• Thermal drift: 0.05% per deg. C change in AVR ambient
• Unit power dissipation: 10 watts maximum
• Build up voltage：4 Volts @ AVR terminals

Dimensions:

• Length: 100mm
• Width: 75mm
• Height: 50mm

Uses:

• Regulating the output voltage of Stamford SX460 generators
• Improving generator stability
• Protecting generators from overvoltage and under-voltage conditions

Industryparts.pk is the Online Shopping website for GENERATOR SX460 AVR. Here you get GENERATOR SX460 AVR at a reasonable price in Karachi, Lahore, Islamabad, Rawalpindi, Peshawar, Quetta, Multan, and all over Pakistan.

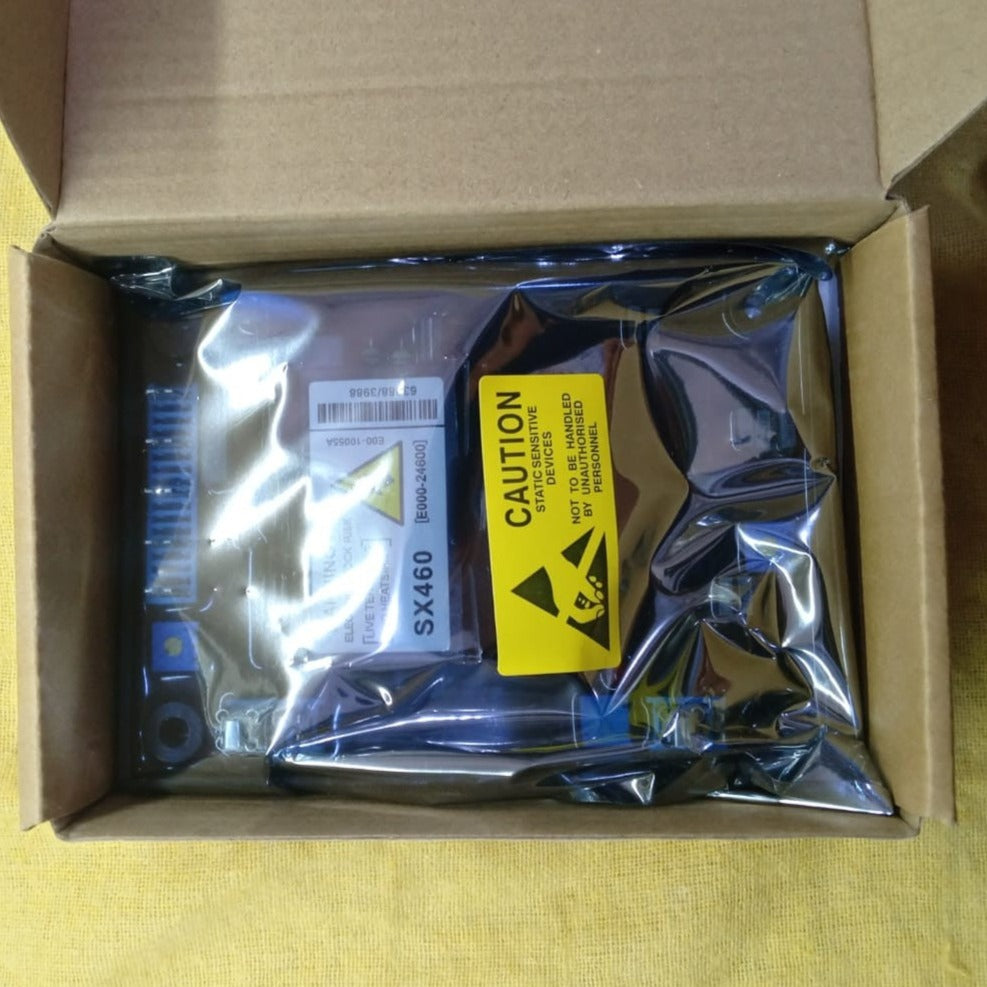

Package includes:

• GENERATOR SX460 AVR
• User manual
