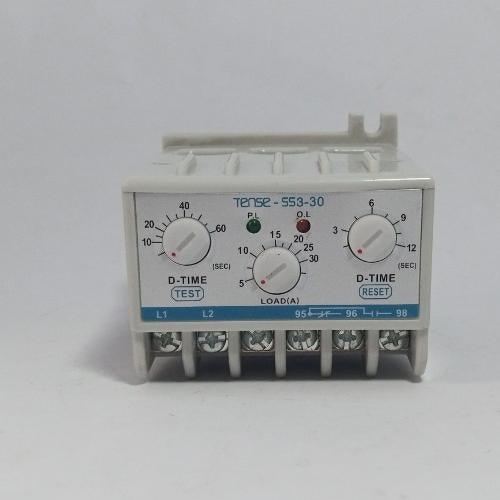

Electronic Over-Current Relay Tense-SS3-30 in Pakistan

BR4793

Rs 1,800
Rs 1,950 Rs 1,800
Sale Sold out

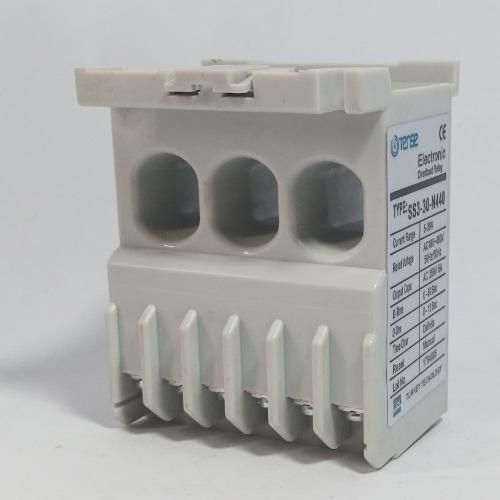

Electronic Over-Current Relay Tense-SS3-30 compares the motor current with a preset load current threshold (LOAD). Motor currents are monitored through two internal current transformers. Please don't allow excessive force on CTs.D-Time counts down and is only available for motor starting. During steady-state, if the motor current is greater than the current setting(overloaded).

Features:

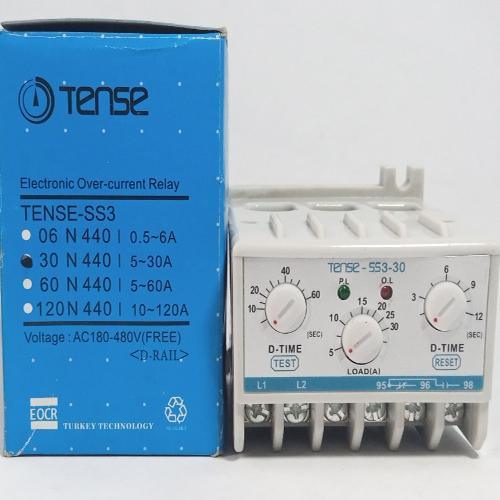

  • Overcurrent Monitoring & Tripping: Suitable for direct use from 06 N 440 to 5HP (with 0.5-6A relay) and up to 30 N 440 (5-30A relay) or 60 N 440 (5-60A) up to 120 N 440 motors (with 10-120A relay)
  • Protection against phase-loss (Single Phase operation)
  • Shock Relay
  • Ammeter reading
  • No-Volt Relay
  • UL Approved
  • Mounting: Surface or DIN Rail

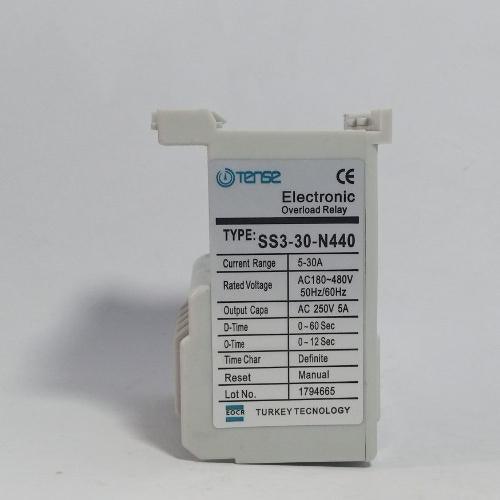

Specification:

  • Product name: Electronic Over-Current Relay Tense-SS3-30
  • Model: SS3-30
  • Manufactured: China
  • Usage: Protective
  • Theory: Electronic
  • Protection: Overcurrent, Undercurrent, Overvoltage, Undervoltage, Ground Fault
  • Current: 0.5A~120A
  • Voltage range: 180v-480v AC

Package Includes:

1 x Electronic Over-Current Relay Tense-SS3-30

Industryparts.pk Best Online Shopping website for Electronic Over-Current Relay Tense-SS3-30. Here you get Electronic Over-Current Relay Tense-SS3-30 at a reasonable price in Karachi, Lahore, Islamabad, Rawalpindi, Peshawar, Quetta, Multan, and all over Pakistan.
