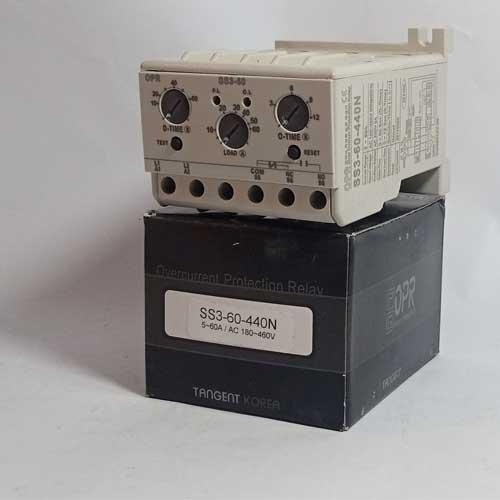

Electronic Over Current Relay SS3-60-40NN 5~60A Protection Relay in Pakistan BR5176

Description

The overcurrent relay is defined as the relay, which operates only when the value of the current is greater than the relay setting time. It protects the equipment of the power system from the fault current.

Operation Time Set-up

1. Set-up the time to be slightly longer in consideration of the operating time of the motor
2. Operating Time Set up for SS Type: controllable within a range of 0~60 sec. (0.2~12 sec. for O-Time)
3. Once the time is fixed, when it is locked, it will be tripped after D-Time and O-Time are passed after over current occurs, at which time the red LED will illuminate.
4. When over current occurs while operating, it will be tripped after O-Time is passed.

Specifications:

• Super Small
• Over-Current Circuit Breaker Lock    Protection
• Separate Set-up for each Operation
• Delay / Operation Delay Time
• Wide Range of Set-up
• Wide Range of Free Voltage
• Operation Indicator and Identification of  Actual Current (LED)
•  Manual (Immediate) / Electrical    Recovery
• Hard Condition Resistant
• Super Economic in Power Saving

Best Online Shopping website for Electronic Over Current Relay SS3-60-40NN 5~60A Protection Relay. Here you get Electronic Over Current Relay SS3-60-40NN 5~60A Protection Relay at a reasonable price in Karachi, Lahore, Islamabad, Rawalpindi, Peshawar, Quetta, Multan, and all over Pakistan.

Package Includes:

1 x Electronic Over Current Relay SS3-60-40NN 5~60A Protection Relay
