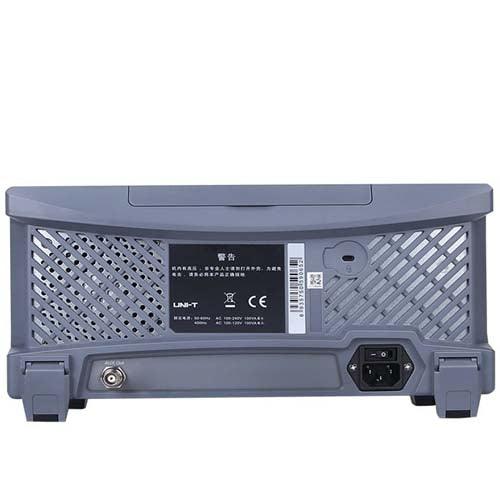

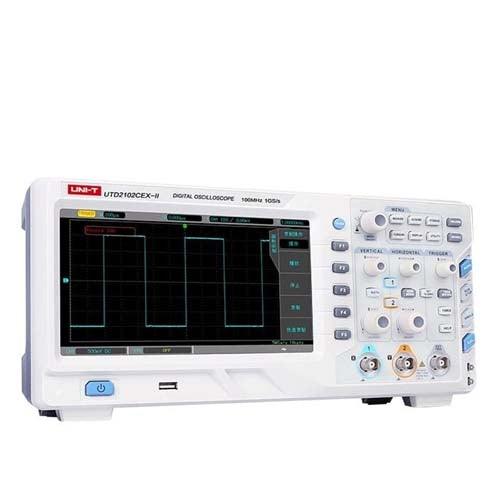

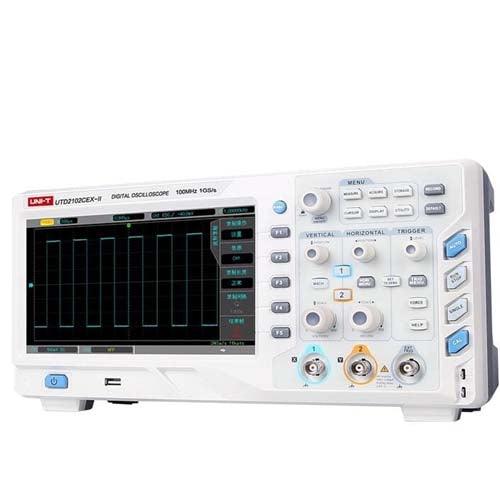

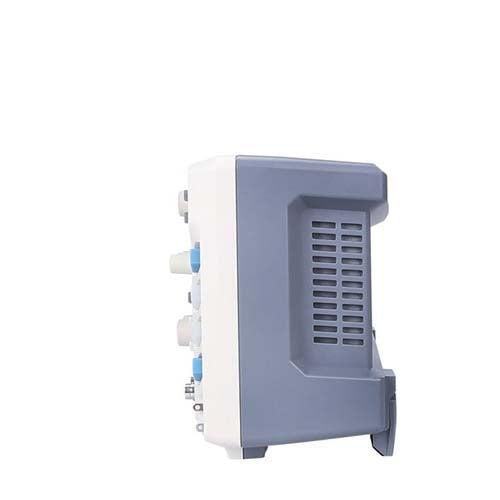

An oscilloscope is a laboratory instrument commonly used to display and analyze the waveform of electronic signals. In effect, the device draws a graph of the instantaneous signal voltage as a function of time. UNI-T UTD2102CEX-II digital oscilloscope is a 2-channel 100MHz bandwidth high-performance device.2 Channel 100MHz Scope has 8-inch TFT LCD, WVGA (800×480) display. The Digital Scope meter has 6 types of Trigger modes: Edge, Pulse Width, Runt, Over-amplitude, Slope, and Video It has a sampling rate of 1GS/s. Digital Storage CRO is an ergonomic, lightweight, universal instrument designed for engineers. A sampling Oscilloscope is suitable for field testing and analyzing time-based voltage signals in a mobile environment. Modern DSO Obtain CE certification and ETL certification.

Features Of UNI-T UPO-2104CS Oscilloscope DSO Scope meter:

• 100MHz bandwidth, 1GSa/s real-time sampling rate
• 2 channels
• 25kpts memory depth
• 20,000wfms/s waveform acquisition rate
• 2ns/div~50s/div time-base
• Trigger modes: Edge, Pulse Width, Runt, Over-amplitude, Slope, and Video
• Calibration Signal Output: 10Hz, 100Hz, 1kHz (default), 10kHz and 100kHz
• Input calibration signal only by pressing a button
• 10Mpts waveform recording
• 8-inch TFT LCD, WVGA (800×480)
• USB OTG and Pass/Fail interfaces
• Obtain CE certification and ETL certification

Specifications Of 4 Channel Digital Storage Oscilloscope:

1. Power: 100-240VAC, 40-440Hz
2. LCD Size: 8-inch TFT LCD, WVGA (800×480)
3. Color: White and Grey
4. Dimension: 336x164x108mm

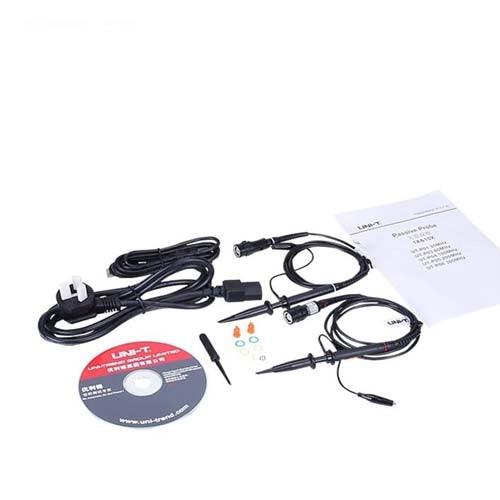

Package Include:

• 1x Oscilloscope
• 2x  Probe (1×,10× switchable)
• 1x power cord
• 1x USB cable
