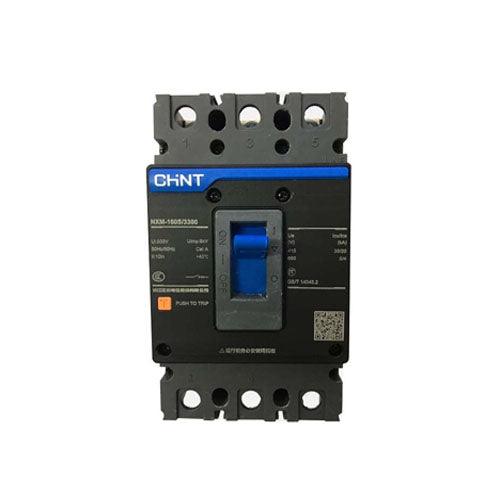

Chint Circuit Breaker NXM-160S 3P in Pakistan

SKU:BR3039

Regular price Rs 13,200
Regular price Rs 14,500 Sale price Rs 13,200
Sale Sold out

Features:

  1. The Chint Circuit Breaker is high quality!
  2. The rated impulse withstand voltage Uimp(kV) 8
  3. The rated working voltage Ue(V), AC 50/60hz 230/240,400/415,500,690
  4. The breaking capacity code is S 2P 3P 4P H 3/4P
  5. The molded case circuit breaker can protect the lines and equipment in distribution lines when overloaded,
  6. short circuit and Undervoltage occur, and can also provide overload, short circuit, and under-voltage
  7. protection for infrequent starting of motors.
  8. Grade of shell frame
  9. NXM series molded case circuit breakers: 63A, 125A, 160A, 250A, 400A, 630A, 800A,
  10. 1000A、1250A、1600A
  11. The rated working voltage UE (AC): 230v/240v, 400V/415V, 500V, 690V(63A,
  12. 125A shell frame has no 690V, and 1250A/1600A shell frame has no 500V)
  13. Code of breaking capacity: s and h
  14. Number of poles: 2P, 3P, 4P(2P is only applicable to shell products of 250A and below)
  15. Release types: electromagnetic, thermomagnetic, and thermally adjustable magnetic fixed
  16. Installation mode: fixed type and plug-in type
  17. NXM-160-S P /4 300
  18. NXM: Product code NXM series molded case circuit breaker
  19. 160: current grade code of shell frame 63a 125a 160a 250a 400a 630a 800a 1000a 1250a 1600a
  20. S: breaking capacity code s 25kah: 50ka (63a 125a) s 36kah: 50ka (160a 250a)
  21. S 50kA H:70kA(400A 630A 800A 1000A 1250A 1600A)
  22. P: operation mode code No code handle direct operation P electric operation Z: rotating handle operation
  23. 4. Number of poles Code 2: Two poles 3: Three poles 4: Four poles
  24. The first digit of 300 release mode and internal accessory code represents release mode 2: electromagnetic type
  25. 3: Thermomagnetic
  26. (The function of thermal overload alarm without tripping can only be selected 3) The second and third digits
  27. are internal accessory codes

Package Includes:

1 x Chint Circuit Breaker NXM-160S

Industryparts.pk is the Best Online Shopping website for Chint Circuit Breaker NXM-160S. Here you get Chint Circuit Breaker NXM-160S at a reasonable price in Karachi, Lahore, Islamabad, Rawalpindi, Peshawar, Quetta, Multan, and all over Pakistan.
