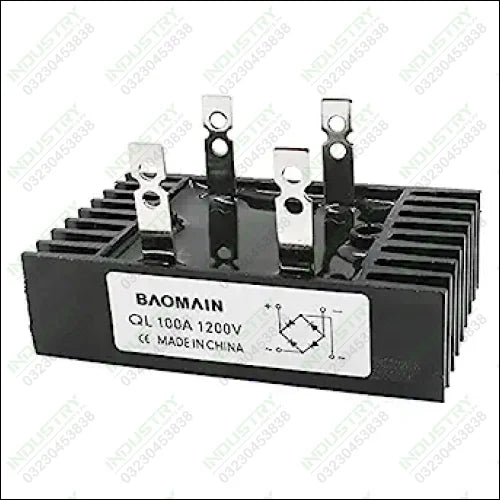

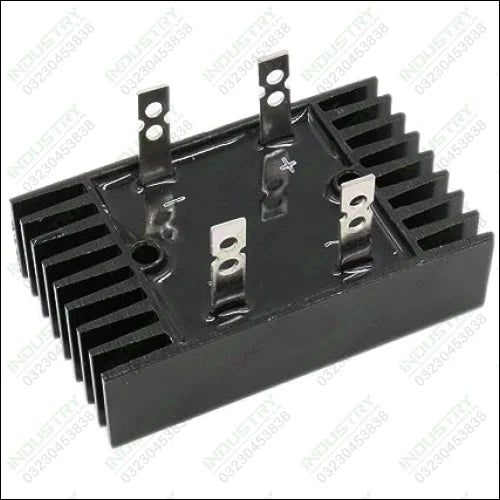

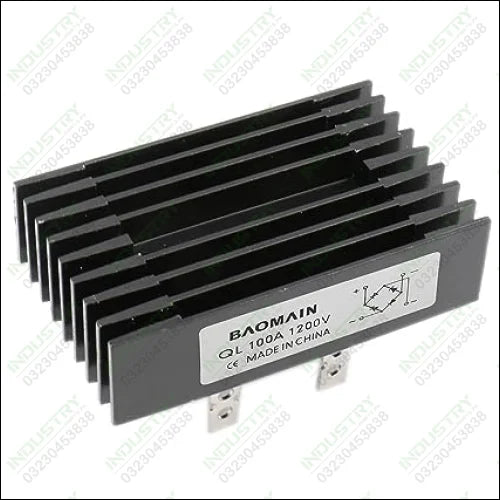

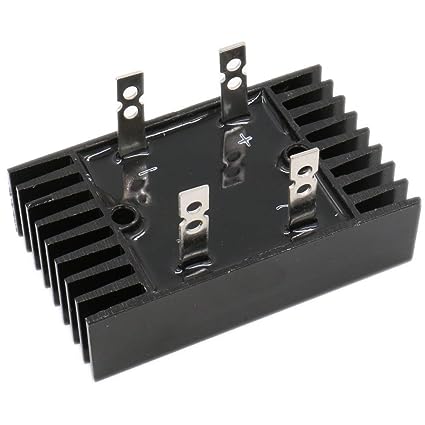

The Baomain 100A Amp 1200V Volt Diode Bridge Rectifier Metal QL100A is a bridge rectifier that is used to convert alternating current (AC) into direct current (DC). It is a metal package with four diodes that are arranged in a bridge configuration. The bridge rectifier can handle up to 100A of current and 1200V of voltage.

Features of Baomain Metal QL100A Diode Bridge Rectifier:

• Metal package
• Four diodes
• Bridge configuration
• 100A current rating
• 1200V voltage rating
• Heatsink design

Specifications of Baomain Metal QL100A Diode Bridge Rectifier:

• Output current: 100A
• Repetitive peak reverse voltage: 1200V

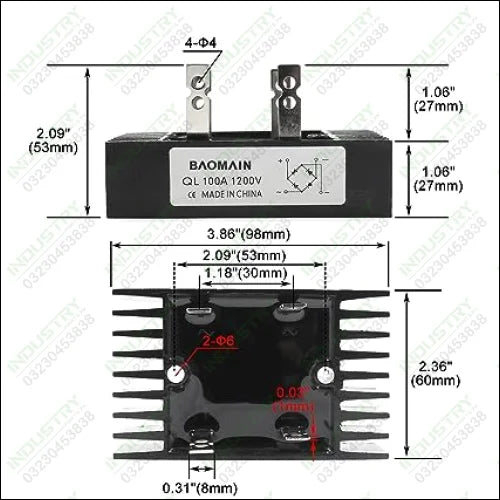

• Fixing holes diameter: 7mm
• Fixing holes spacing: 45mm
• Main body size: 98 x 60 x 27mm / 3.85" x 2.36" x 1.06" (LWT)
• Overall height: 53mm / 2.08"
• Net weight: 440g

Dimensions:

• Width: 98mm
• Height: 60mm
• Depth: 27mm

Uses:

The Baomain 100A Amp 1200V Volt Diode Bridge Rectifier Metal QL100A can be used in a variety of applications, including:

• Power supplies
• Inverters
• Welding machines
• Battery chargers
• LED drivers

Industryparts.pk is the Online Shopping website for Baomain Metal QL100A 100A Amp Diode Bridge Rectifier. Here you get Baomain Metal QL100A 100A Amp Diode Bridge Rectifier at a reasonable price in Karachi, Lahore, Islamabad, Rawalpindi, Peshawar, Quetta, Multan, and all over Pakistan.

Package includes

• 1 x Baomain 100A Amp 1200V Volt Diode Bridge Rectifier Metal QL100A
• 1 x Instruction manual
