A Temperature Controller is a device that is used to control a heater or other equipment by comparing a sensor signal with a set point and performing calculations according to the deviation between those values.

https://youtu.be/tfbnet0Viw8

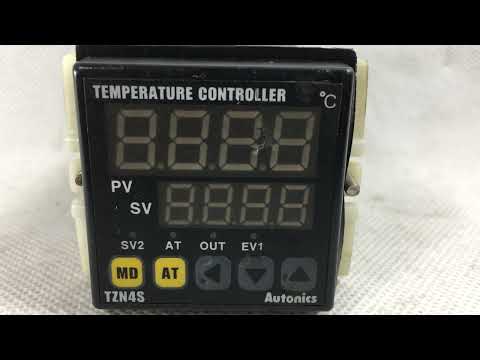

VIDEO

Specification:

• Display method: 4-digit 7-segment LED
• Control method: ON/OFF control, P, PI, PD, PIDF, PIDS control
• Input specification: Thermocouple: K(CA), J(IC), E(CR), T(CC), R(PR), S(PR), N(NN), W(TT)
• RTD: DPt100?, JPt100?
• Analog: 1-5VDC , 0-10VDC , DC4-20mA
• Sampling cycle: 500ms
• Control output: Relay(250VAC~ 3A)
• Option output: Event 1
• Power supply: 100-240VAC~ 50/60Hz
• Display accuracy: F.S ± 0.3% or 3?, select the higher one
• Alarm output: hysteresis 1 to 100? (0.1 to 100.0?) variable
• Proportional band: 0.0 to 100.0%
• Integral time: 0 to 3,600 sec
• Derivative time: 0 to 3,600 sec
• Control period: 1 to 120 sec
• LBA setting: 1 to 999 sec
• Ramp setting: Ramp Up, Ramp Down: 1 to 99 min each
• Environment Ambient temperature: -10 to 50℃, storage: -20 to 60℃
• Environment Ambient humidity: 35 to 85% RH, storage: 35 to 85% RH
• Weight: Approx. 226g(approx. 164g)

Package includes:

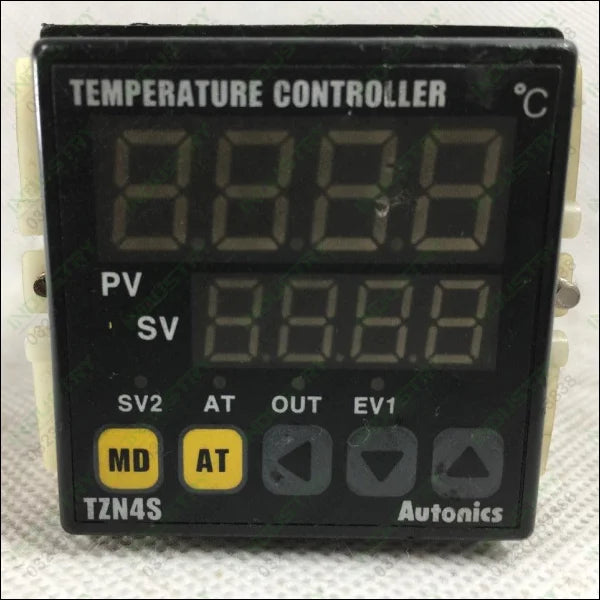

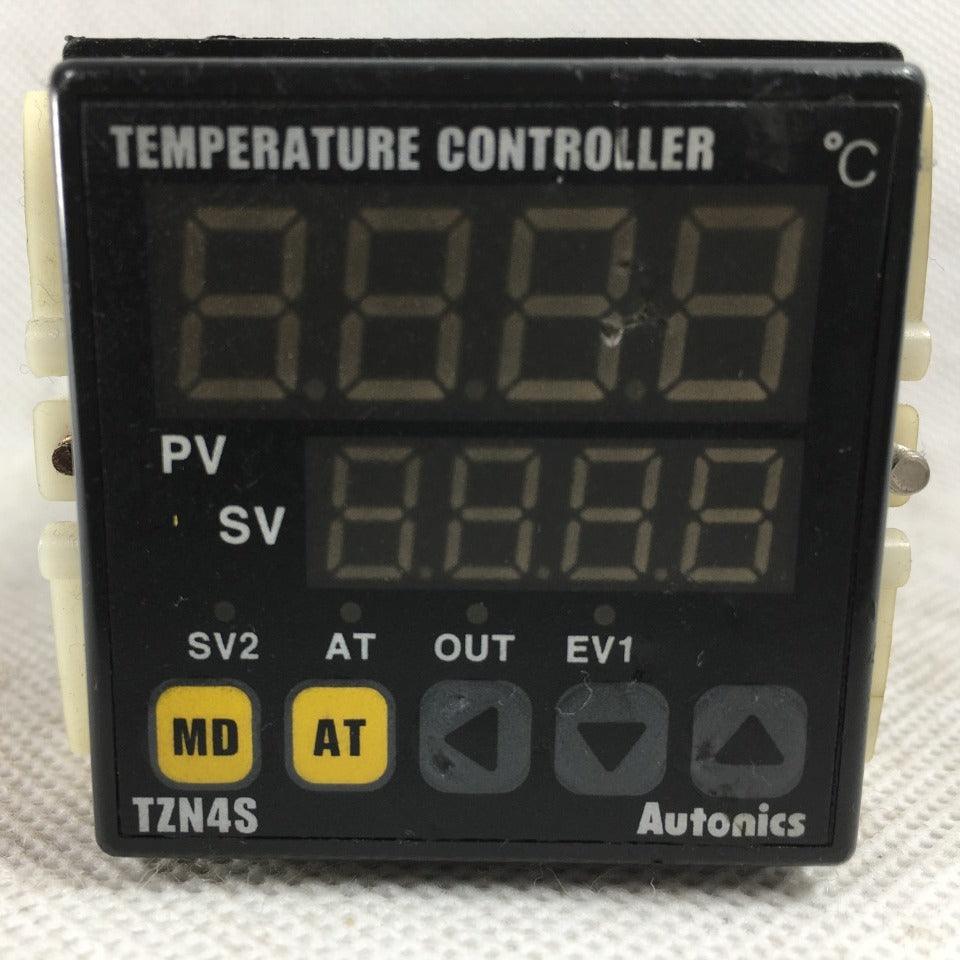

          1 x AUTONICS TZN4S Temperature Controller

Industryparts.pk is the Online Shopping website for AUTONICS TZN4S Temperature Controller. Here you get AUTONICS TZN4S Temperature Controller at a reasonable price in Karachi, Lahore, Islamabad, Rawalpindi, Peshawar, Quetta, Multan, and all over Pakistan.
