DC voltmeter is a measuring instrument, which is used to measure the DC voltage across any two points of an electric circuit. If we place a resistor in series with the Permanent Magnet Moving Coil (PMMC) galvanometer, then the entire combination together acts as a DC voltmeter.

Features:

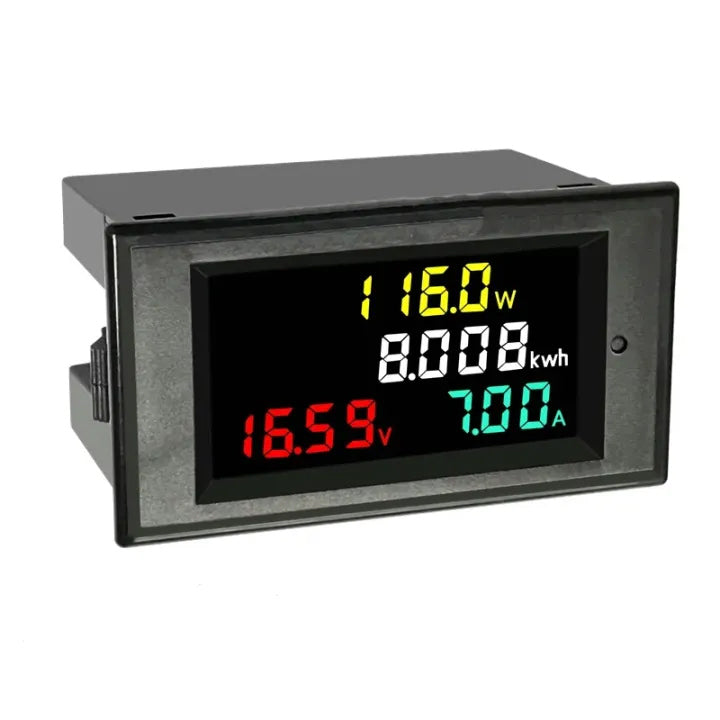

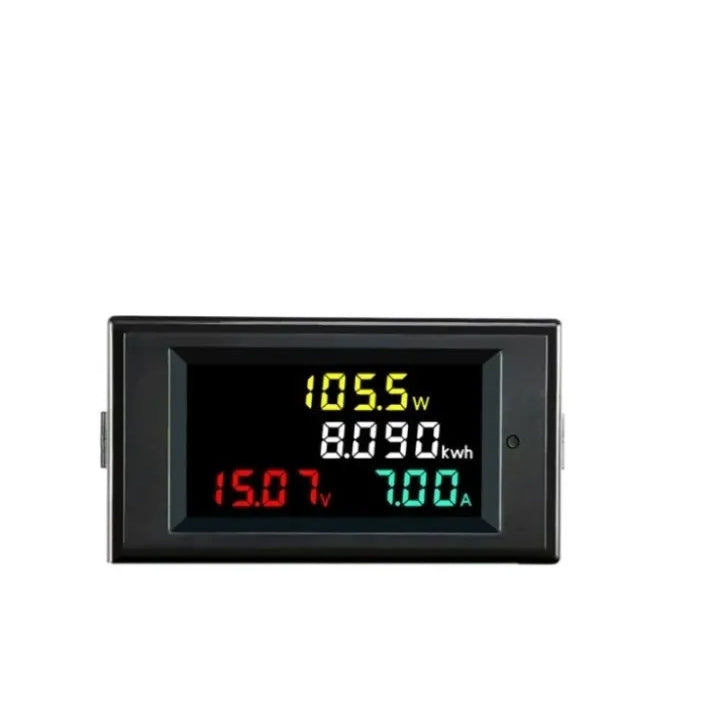

1. The full-view color LED display displays four electrical parameters: DC voltage, current, power, and electricity.
2. The automatic saving function of power measurement data: when power is off, the meter will automatically save the current power value and automatically read the deal after the next power-on, and continue accumulating the accumulated value.
3. Press and hold the reset button on the front panel of the meter for 5 seconds, and the accumulated power value of the meter will be reset to zero.
4. This meter does not need an external working power supply and the measured voltage is the working voltage of the meter.

Specifications:

• 1. Full-view HD LCD screen
• 2. Display DC voltage, current, active power, electric
• energy
• 3. Energy will be saved when power off
• 4. Long press the RESET button for 5 seconds, and the energy
• will be cleared.
• Product name: LCD numerical DC
• meter
• Display: HD LCD color display
• Dimensions: 79 x 43 x 48mm
• Installation size: 76 x 39mm
• Measurement accuracy: 1%±2 words
• Function test: DC voltage,
• current, power, electric energy (electricity)
• 1. Working voltage:14-600VDC
• 2. Measuring voltage: DC14-600VDC0-0-100.0A
• 3. Measuring power: 0-60000W
• 4. Measurement accuracy: 1% level
• Attention
• 1. The meter should use in the
• indoor, do not use the outside door.
• 2. When measuring voltage or
• current exceeds the rating, the meter will be destroyed.
• 3. You should connect the wire
• As the wiring diagram indicates, the meter will destroy with the wrong wire
• connecting.
• 4. DC current shunt must connect follow
• the wiring diagram to the negative of the “measuring/working voltage”, the
• the meter will destroy with a wrong wire connecting.
• 5. The negative of “measuring/working
• voltage” should not connect to the terminal of 3, you must first connect to the
• DC current shunt, then connect to the terminal of 3 (You must follow the wiring
• diagram)
• 6. If you only measure the voltage,
• the DC current shunt and the payload is not necessary, you can only connect the
• positive of “measuring/working voltage” to the terminal of 4 and the negative
• to the terminal of 3.

Package Includes:

1 × DC voltmeter

1 x Shunt 100A
