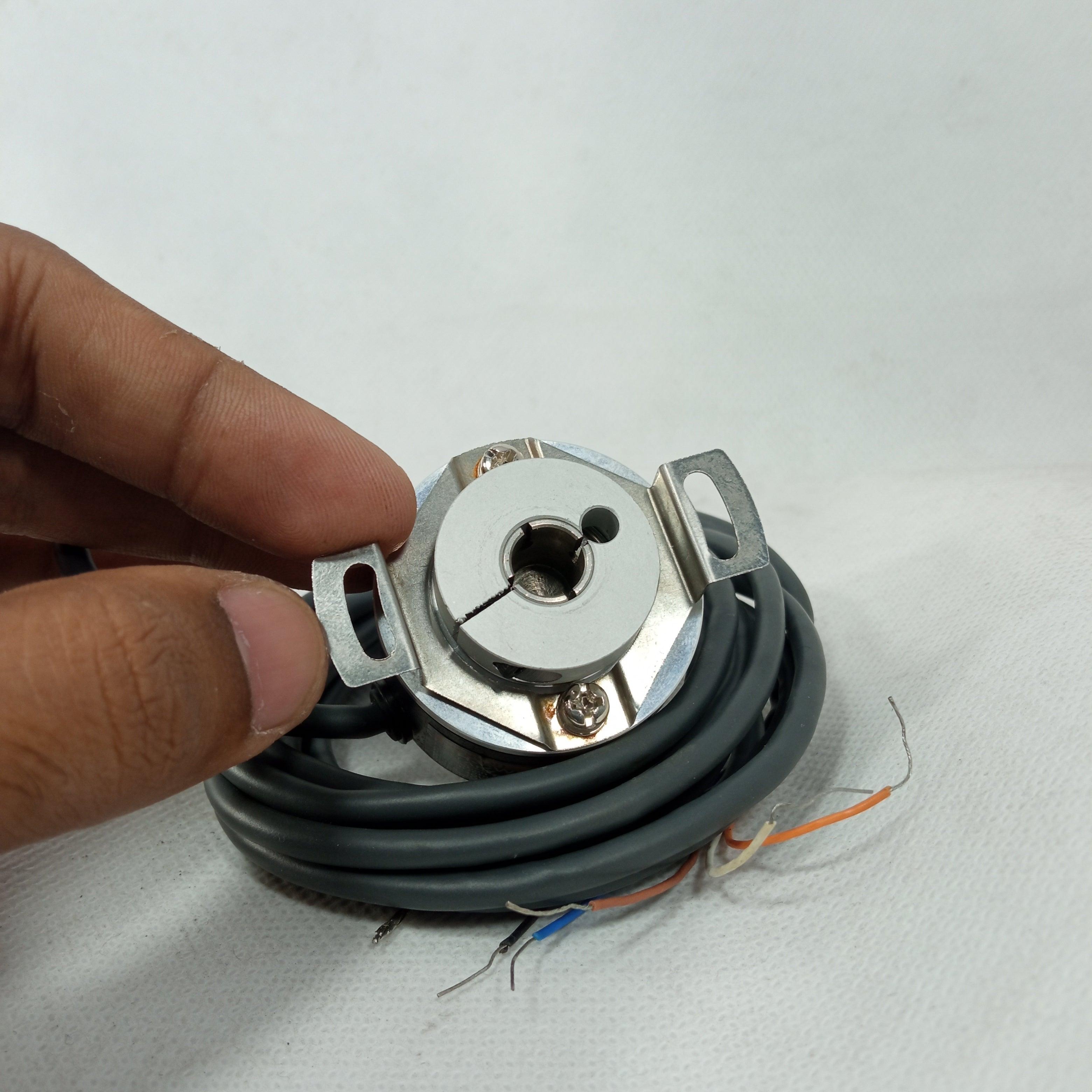

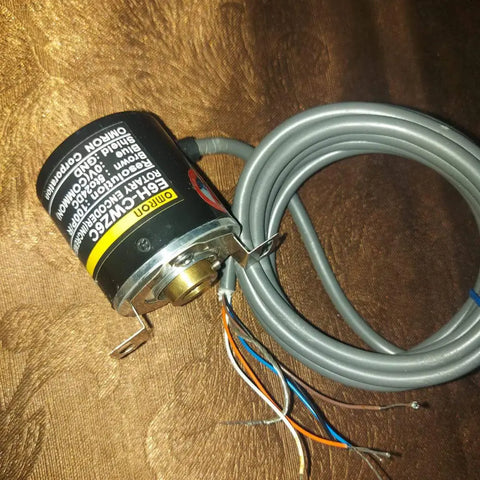

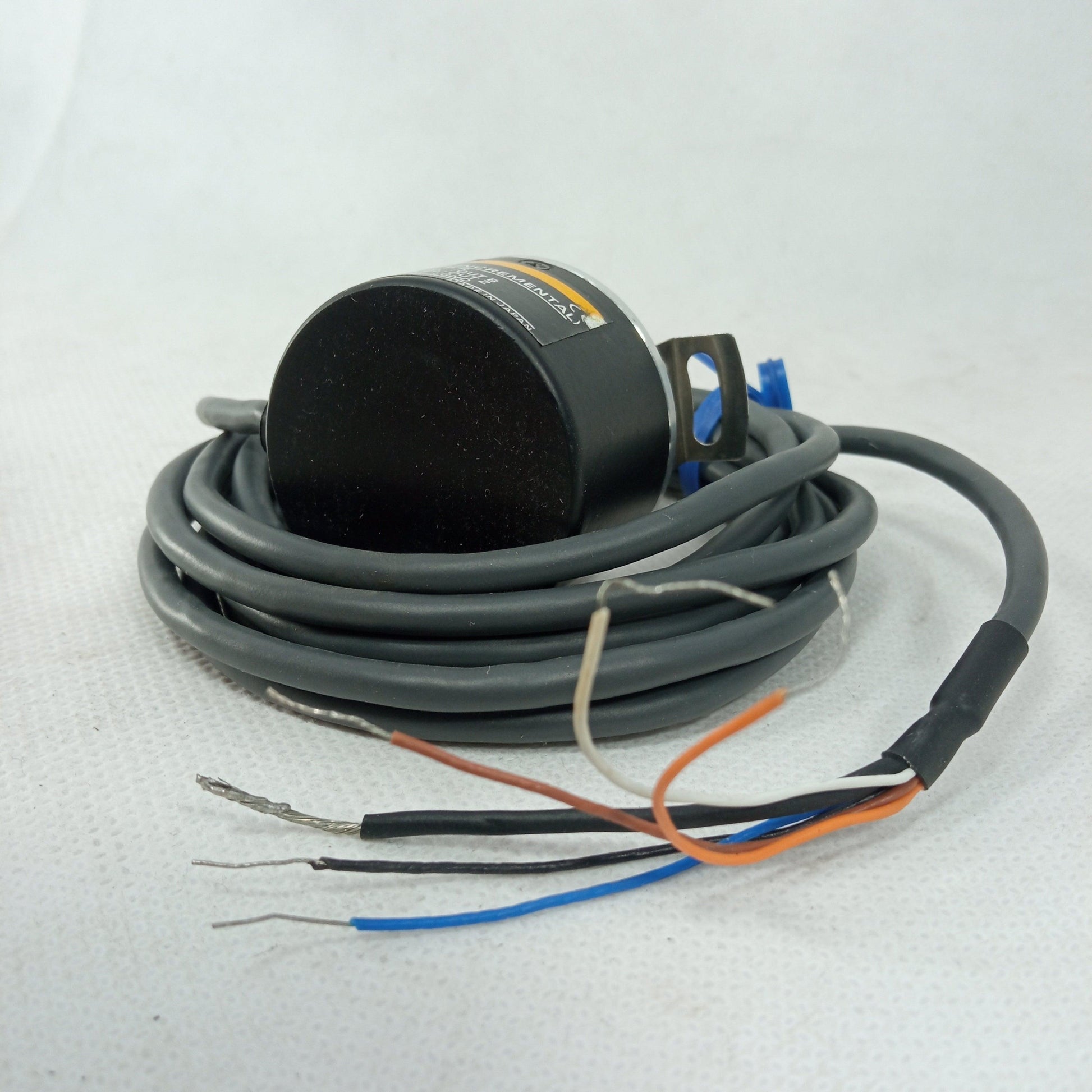

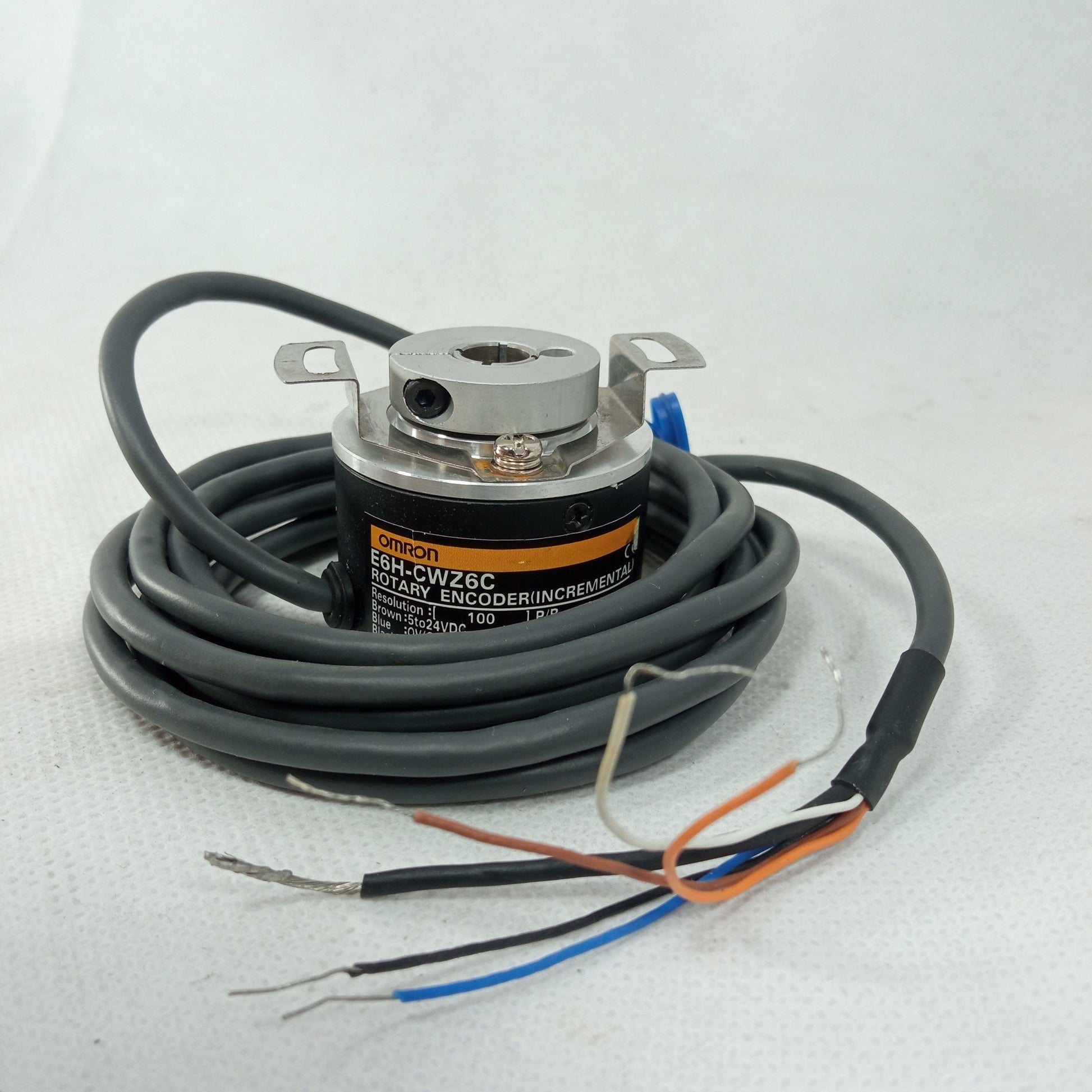

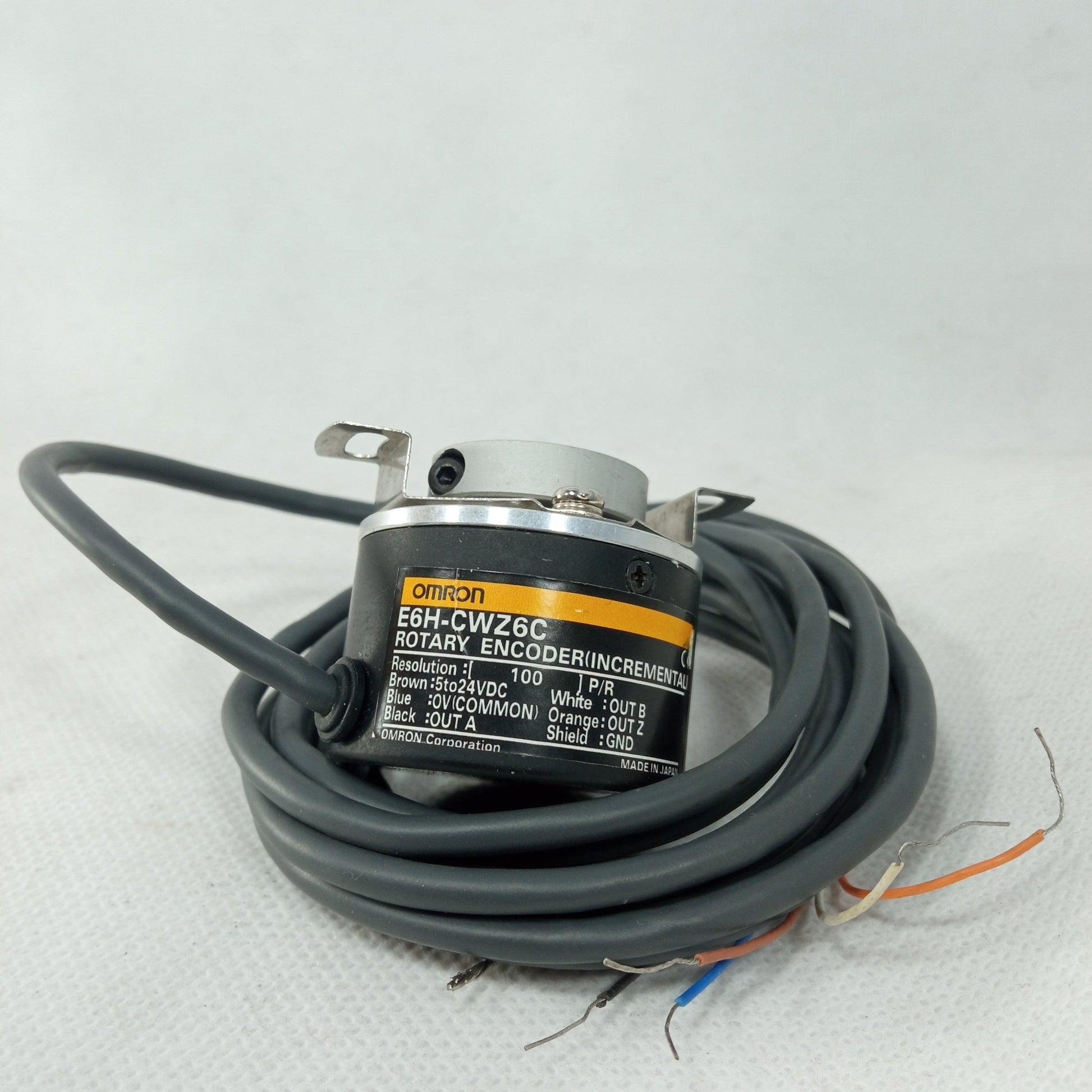

100PPR Omron E6H-CWZ6C Rotary Encoder 5 24VDC in Pakistan

SKU:BR8227-b108-st1

Regular price Rs 9,500
Regular price Sale price Rs 9,500
Sale Sold out

A rotary encoder, also called a shaft encoder, is an electro-mechanical device that converts the angular position or motion of a shaft or axle to an analog or digital output signals. There are two main types of rotary encoder: absolute and incremental.

Specifications:

  • Series : E6B
  • Encoding Method: Incremental
  • Resolution P/R: 100
  • Control Output (Output type): NPN open-collector output
  • Max Force Radial: 30 N
  • Max Force Thrust: 20 N
  • IP Rating : IP50
  • Power Supply Voltage: 5 VDC -5% to 24 VDC +15% (ripple (p-p): 5% Max.)
  • Max Rotation Frequency r/min: 6000 r/min
  • Height (mm): 40

Features:

  • Exterior 40 mm Dia.
  • Incremental Type
  • Output Phase A/B/Z
  • 5 to 24 VDC
  • Open Collector Output

Industryparts.pk is the Best Online Shopping website for 100PPR Omron E6H-CWZ6C Rotary Encoder 5~24VDC. Here you get 100PPR Omron E6H-CWZ6C Rotary Encoder 5~24VDC at a reasonable price in Karachi, Lahore, Islamabad, Rawalpindi, Peshawar, Quetta, Multan, and all over Pakistan.

Packages Include:

 1 x100PPR Omron E6H-CWZ6C Rotary Encoder 5 24VDC

100PPR Omron E6H-CWZ6C Rotary Encoder 5 24VDC in Pakistan
