Incremental Encoders output a pulse string according to the rotational displacement of an axis. The number of rotations can be detected by counting the number of pulses.

Features:

• Incremental Type
• Exterior 40 mm Dia.
• Output Phase A/B/Z
• 5 to 24 VDC
• Open Collector Output

Specification:

• Series : E6B
• Encoding Method: Incremental
• Resolution P/R: 1000
• Control Output (Output type): NPN open collector output
• Max Force Radial: 30 N
• Max Force Thrust: 20 N
• IP Rating : IP50
• Power Supply Voltage: 5 VDC -5% to 24 VDC +15% (ripple (p-p): 5% Max.)
• Max Rotation Frequency r/min: 6000 r/min
• Height (mm): 40

Packages Include:

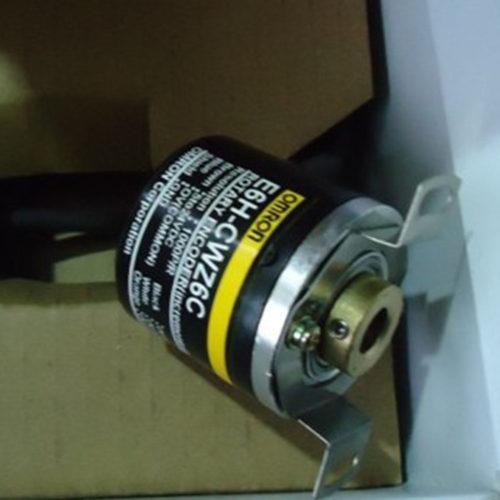

 1 x 1000PPR Rotary Encoder Omron Incremental Type 5~24VDC
