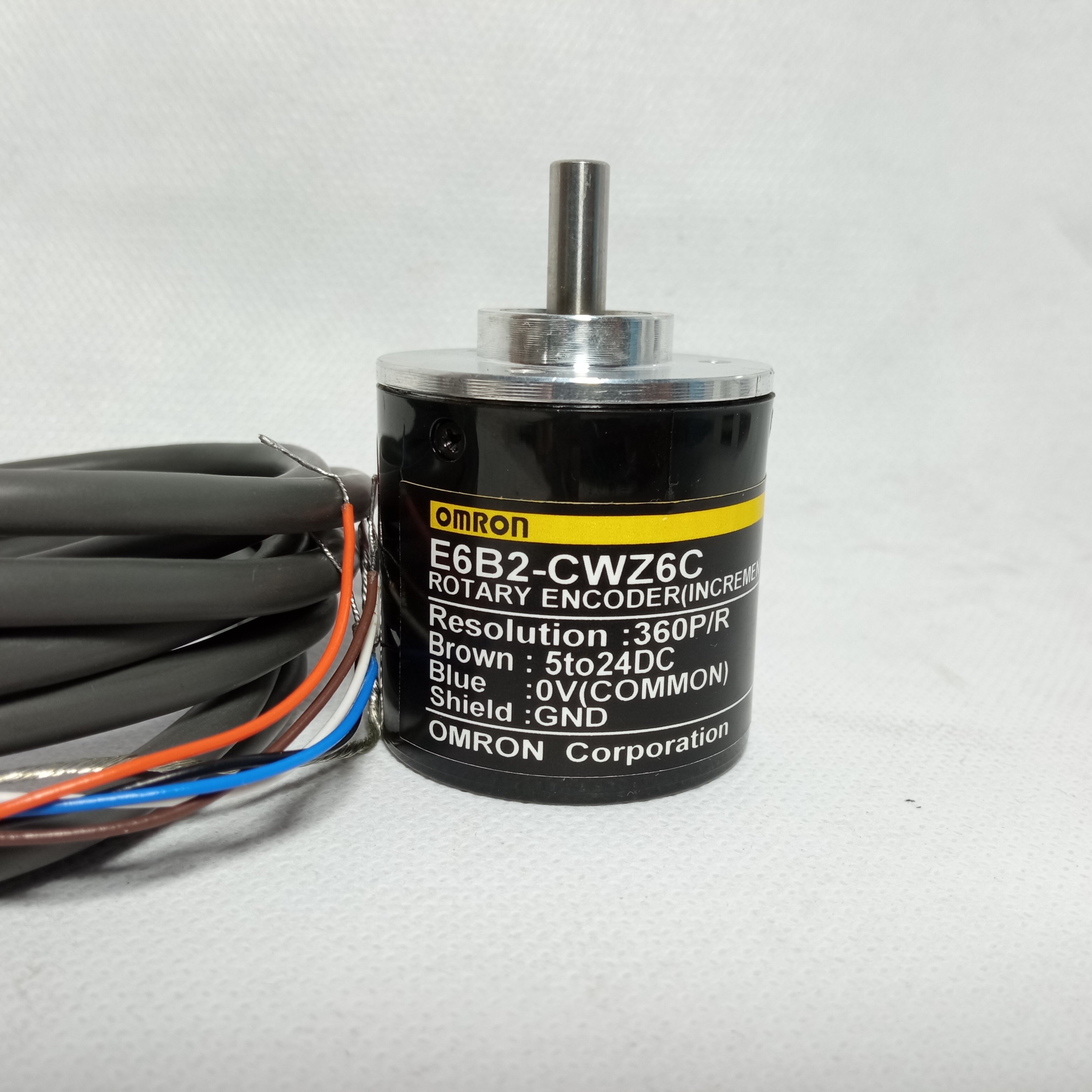

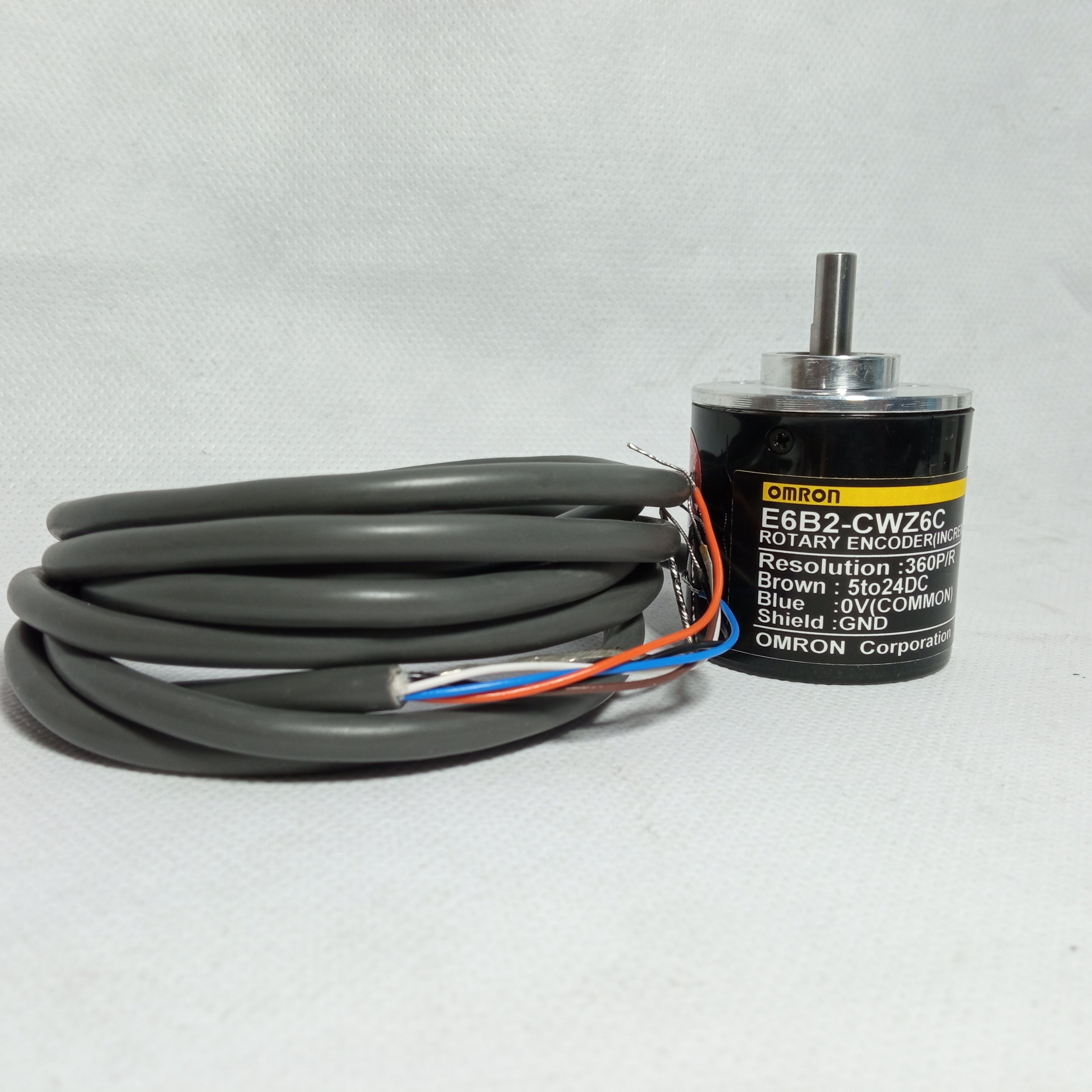

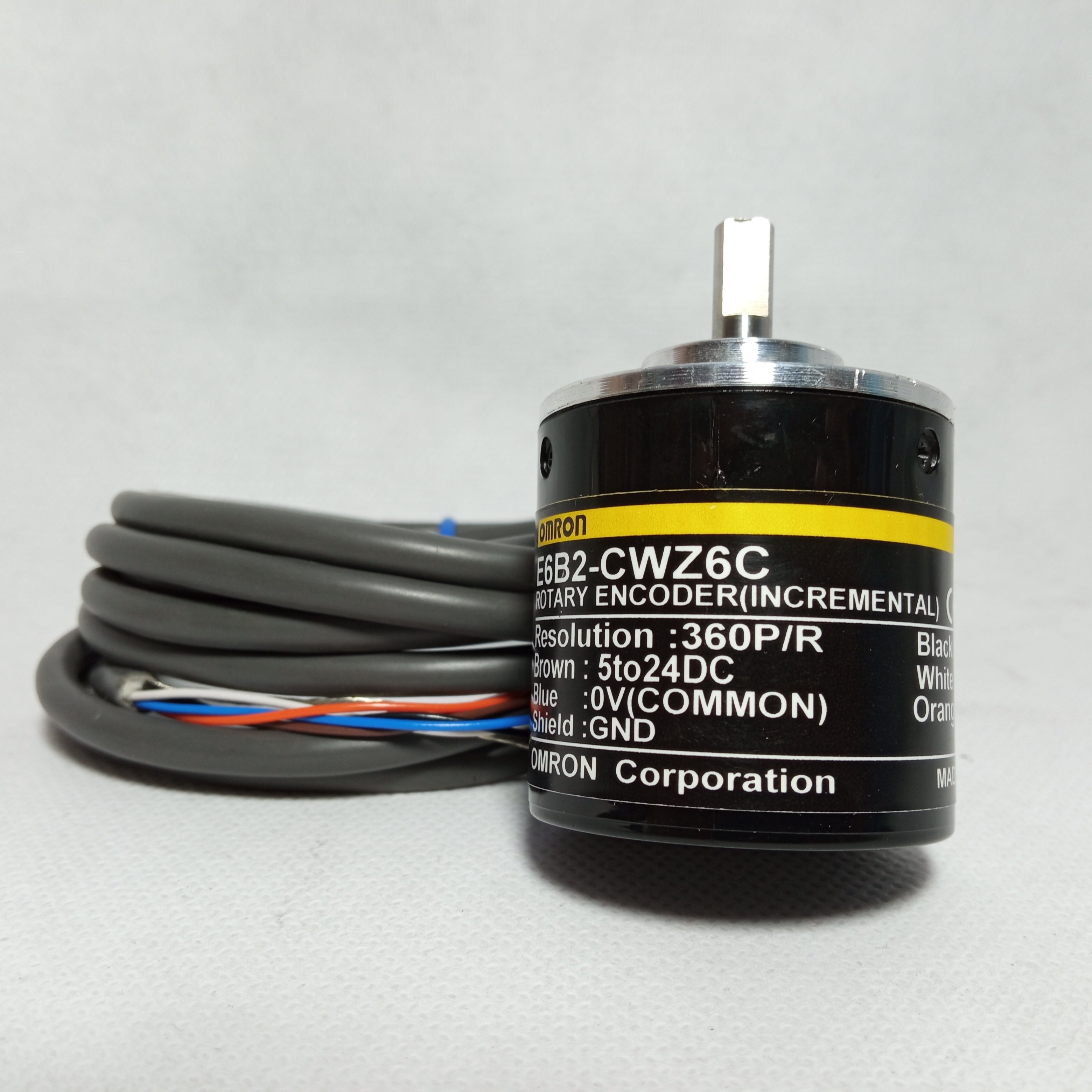

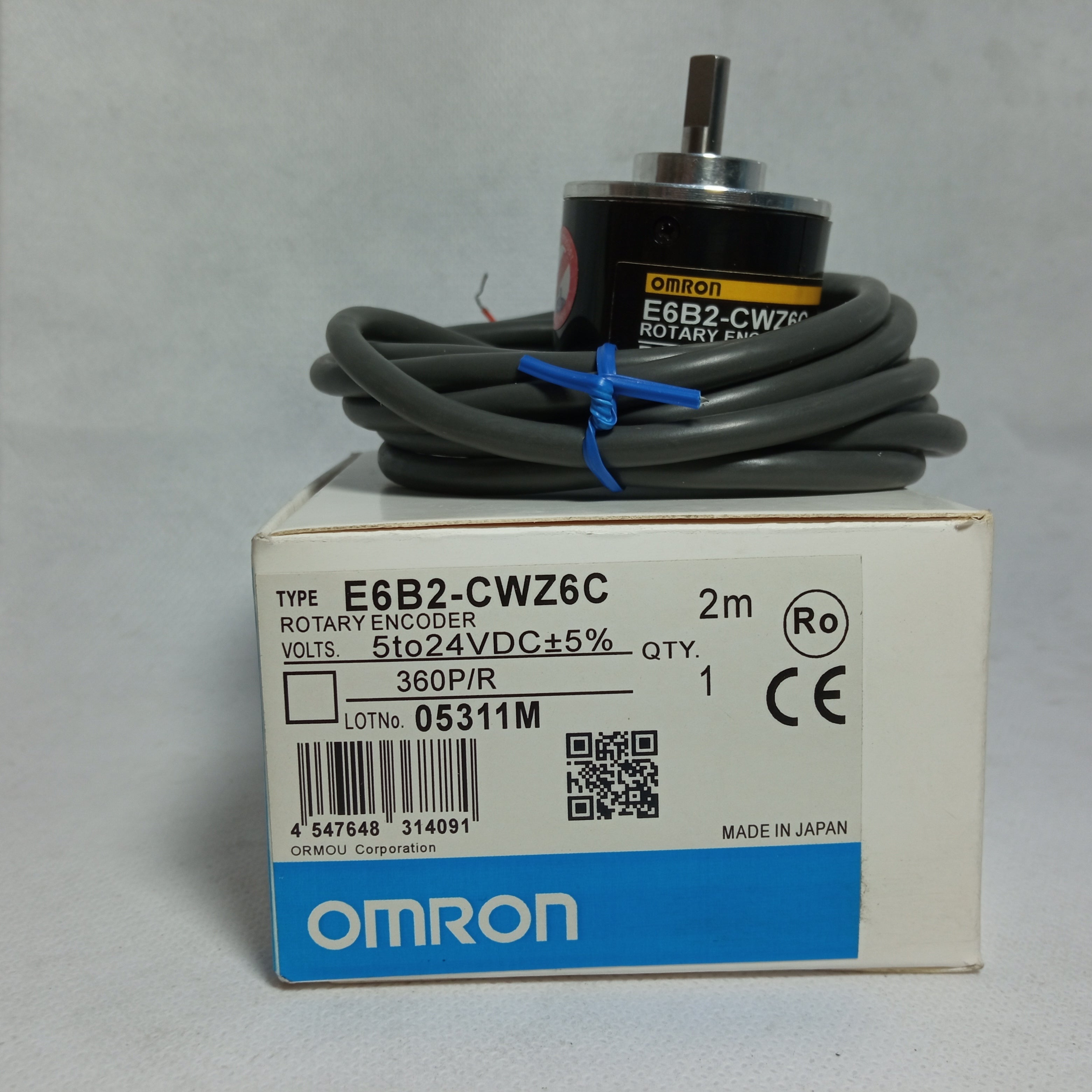

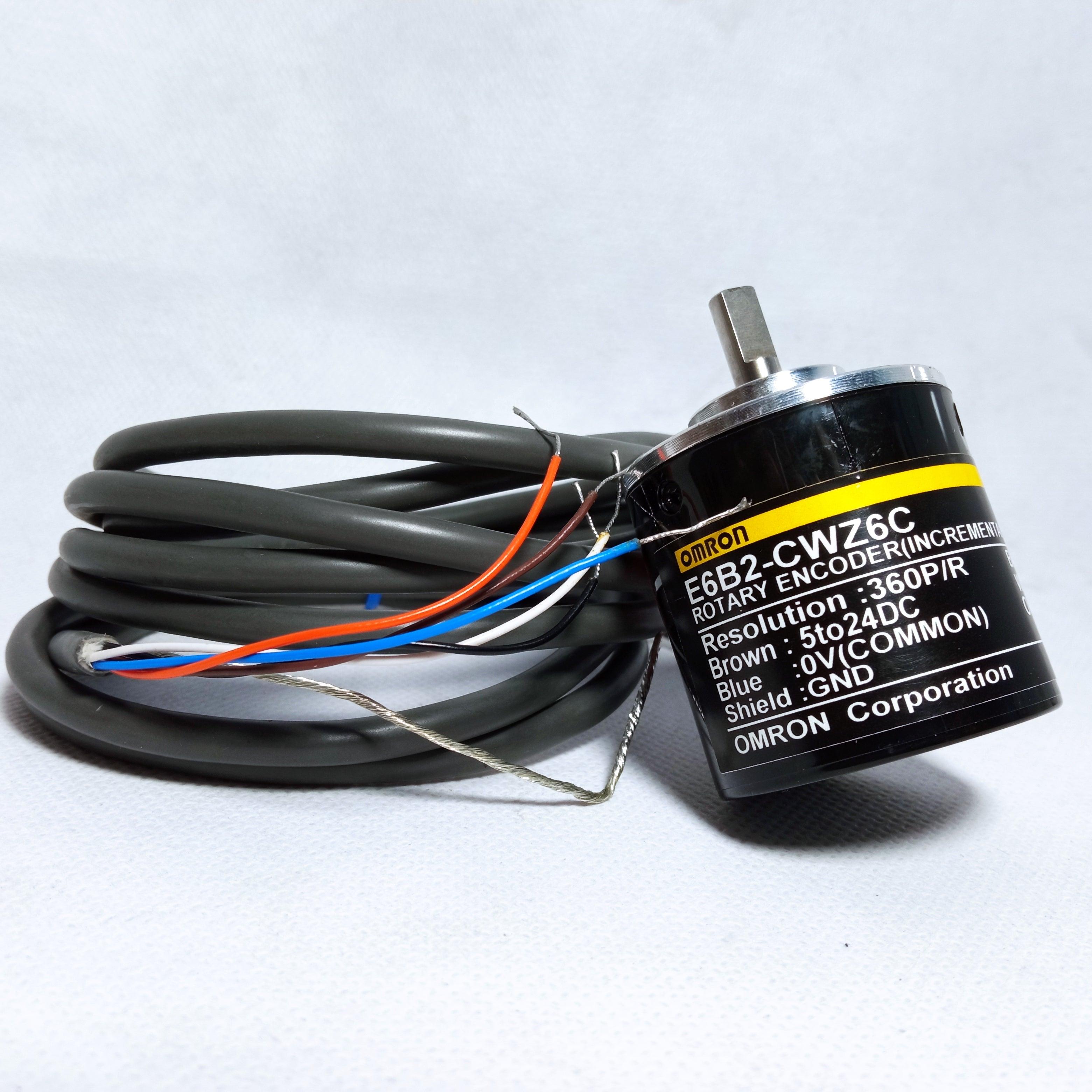

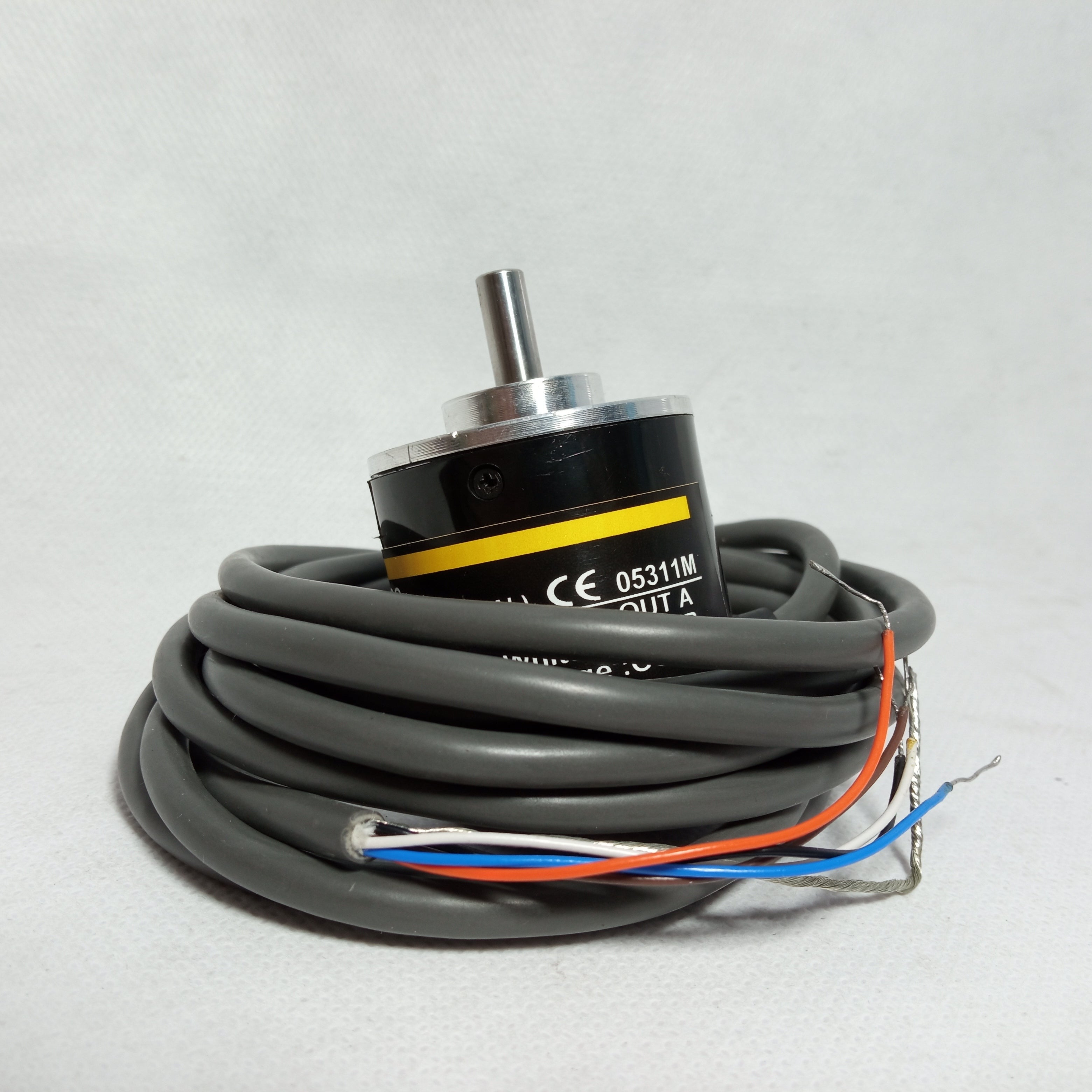

360PPR OMRON Incremental Rotary Encoder E6B2-CWZ6C in Pakistan

SKU:BR1949

Regular price Rs 6,500
Regular price Rs 6,000 Sale price Rs 6,500
Sale Sold out

Incremental. Incremental Encoders output a pulse string according to the rotational displacement of an axis. The number of rotations can be detected by counting the number of pulses.

Specifications:

  • Encoding method Incremental Shaft model
  • Resolution 360 P/R
  • Output phases A, B, and Z
  • Control output NPN open collector
  • Connection method Pre-wired models (Cable length: 2 m)
  • Categories Incremental Shaft model
  • Diameter 40 mm dia.
  • Power supply voltage 5 to 24 VDC (-5% to +15%) Ripple (p-p) 5% max.
  • Current consumption 80 mA max.
  • Resolution 360 P/R
  • Inrush current Approx. 9 A (0.3 ms)
  • Output phases A, B, and Z
  • Control output Output type NPN open collector
  • Load power supply voltage 30 VDC max.
  • Sink current 35 mA max.
  • Residual voltage 0.4 V max. (at sink current 35 mA)
  • Starting positional point Equipped
  • Max. response frequency 100 kHz
  • The phase difference in output 90±45 ° between A and B (1/4 T ± 1/8 T)
  • Rise and fall times of output 1 µs max. (Cable length: 2 m max., output voltage: 5 V, load resistance: 1 kΩ)
  • Starting torque 0.98 mN.m max.
  • Moment of inertia 3 x 10**-7 kg.m**2 max.
  • Shaft loading Radial: 30 N
  • Thrust: 20 N
  • Max. permissible rotation 6000 r/min
  • Protective circuit Output short-cut protection
  • Power supply reverse polarity protection
  • Ambient temperature Operating: -10 to 70 ℃ (with no icing)
  • Storage: -25 to 85 ℃ (with no icing)
  • Ambient humidity Operating: 35 to 85% RH (with no condensation)
  • Storage: 35 to 85% RH (with no condensation)
  • Insulation resistance Between charged parts and the case: 20 MΩ or higher (500 VDC megger)
  • Dielectric strength Between charged parts and the case: 500 VAC 50/60 Hz 1 min
  • Vibration resistance Destruction: 10 to 500 Hz, 2-mm or 150 m/s**2 double amplitude for 11 min 3 times each in X, Y, and Z directions
  • Shock resistance Destruction: 1000 m/s**2 for 3 times each in X, Y, and Z directions
  • Degree of protection IEC: IP50
  • Connection method Pre-wired models (Cable length: 2 m)
  • Material Case: ABS
  • Main Unit: Aluminum
  • Shaft: SUS420J2
  • Accessories Instruction manual, Couplings, Hex-head spanner

Package Includes:

1 x 360PPR OMRON Incremental Rotary Encoder E6B2
