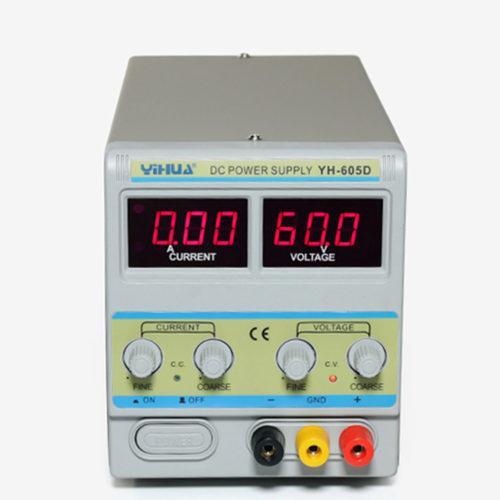

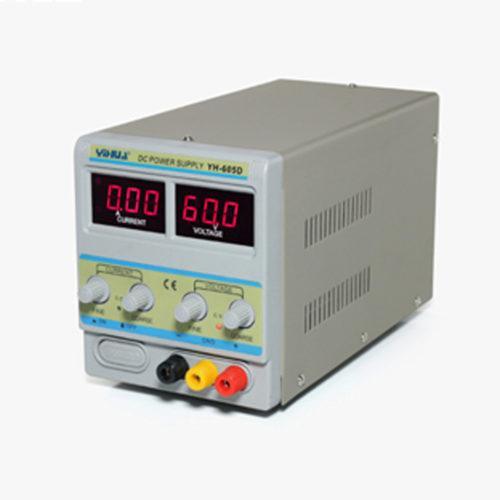

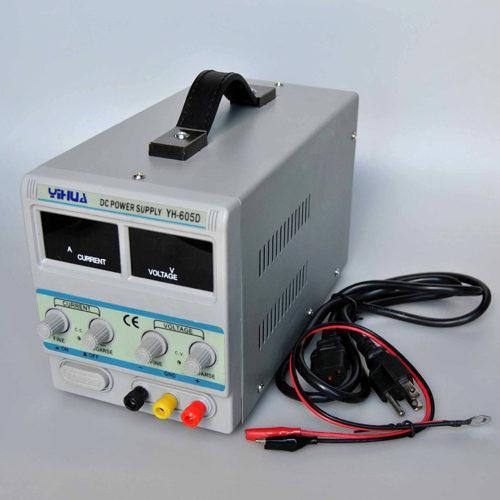

YIHUA 60V 5A Digital Precision DC Power Supply

2 total reviews

Regular price Rs 14,500
Regular price Sale price Rs 14,500
Sale Sold out
BR1607

YIHUA 60V 5A Digital Precision DC Power Supply in Pakistan BR1607



Features:



  1. YIHUA60V 5A is the second generation of digital program-controlled switching power supply, it used the latest technology and crafts.
  2.
  3. This digital program-controlled stabilized switching power supply is designed for use in laboratories, schools,
  4.
  5. production lines, and electronic repair.
  6.
  7. It has a small size and is lightweight, which is very easy to transport and carry.
  8.
  9. It has high efficiency, high load capacity, and low noise and is superior to linear power supplies.
  10.
  11. It has high voltage stability, small ripple factor, excellent short circuit protection, and over-current protection.
  12.




Machine parameters


rated voltageAC220V  50Hz
Power of complete machine380W
Operating environment0?40?  relative humidity ?80?
Storage Temperature?20?80?  relative humidity ?80?
Dimensions255*130*150mm
weight3.1KG


Specifications


output voltageAdjustable continuously within 0?60V
output currentAdjustable continuously within 0?5A
output power300W
Source effect1mV
load effect?0.33%
Ripple noise?3mVrms?5Hz ~ 1MHz?/?3mArms
Display accuracy0.1V/0.1A/1mA
Protection modeOver-current, short circuit, over-temperature protection
Dissipation modeair cooling



Packages Include:

 1 x YIHUA 60V 5A Digital Precision DC Power Supply

Description

YIHUA 60V 5A Digital Precision DC Power Supply in Pakistan BR1607



Features:



  1. YIHUA60V 5A is the second generation of digital program-controlled switching power supply, it used the latest technology and crafts.
  2.
  3. This digital program-controlled stabilized switching power supply is designed for use in laboratories, schools,
  4.
  5. production lines, and electronic repair.
  6.
  7. It has a small size and is lightweight, which is very easy to transport and carry.
  8.
  9. It has high efficiency, high load capacity, and low noise and is superior to linear power supplies.
  10.
  11. It has high voltage stability, small ripple factor, excellent short circuit protection, and over-current protection.
  12.




Machine parameters


rated voltageAC220V  50Hz
Power of complete machine380W
Operating environment0?40?  relative humidity ?80?
Storage Temperature?20?80?  relative humidity ?80?
Dimensions255*130*150mm
weight3.1KG


Specifications


output voltageAdjustable continuously within 0?60V
output currentAdjustable continuously within 0?5A
output power300W
Source effect1mV
load effect?0.33%
Ripple noise?3mVrms?5Hz ~ 1MHz?/?3mArms
Display accuracy0.1V/0.1A/1mA
Protection modeOver-current, short circuit, over-temperature protection
Dissipation modeair cooling



Packages Include:

 1 x YIHUA 60V 5A Digital Precision DC Power Supply

Customer Reviews

Based on 2 reviews Write a review
