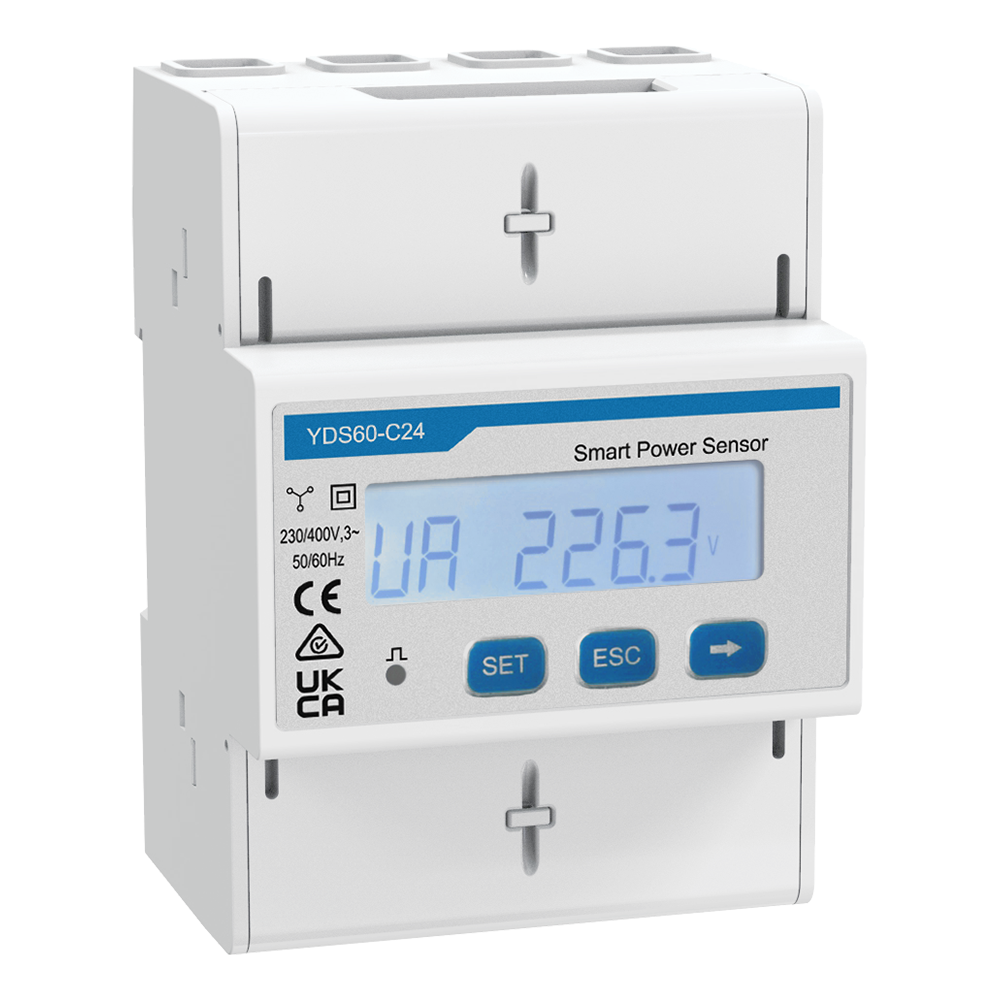

The YDS60-C24 is a three-phase Smart Power Sensor commonly used in solar PV systems (like Huawei FusionSolar) and industrial energy management. It provides real-time monitoring of electrical parameters such as voltage, current, power, and energy
Below are the key technical specifications and wiring details for this model:
Technical Specifications
| Feature | Details |
| Model | YDS60-C24 |
| Grid Type | 3-Phase 3-Wire (3P3W) or 3-Phase 4-Wire (3P4W) |
| Nominal Voltage | 230 V AC / 400 V AC |
| Input Voltage Range | Phase: 176 V AC – 288 V AC / Line: 304 V AC – 500 V AC |
| Current Range | 0 – 250 A (measured via CT) |
| CT Secondary | 50 mA |
| Accuracy | Class 1 (Voltage/Current: ±0.5%, Power/Energy: ±1%) |
| Communication | RS485 (Modbus-RTU) |

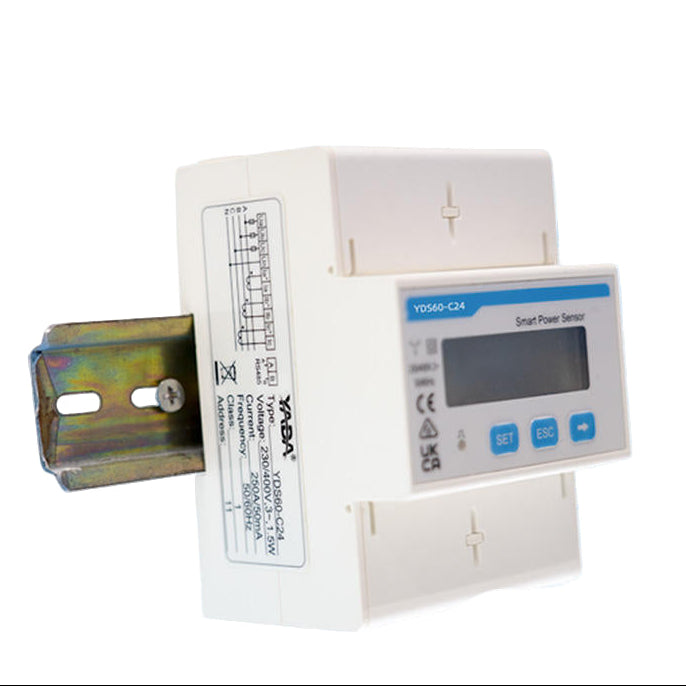

| Mounting | 35 mm DIN Rail |
| Dimensions | 100 mm x 72 mm x 66 mm |
Features of YDS60-C24 Smart Power Sensor:
- Real-time power monitoring
- High measurement accuracy
- Compact smart design
- Stable digital output
- Long service performance
Specifications:
- Model: YDS60-C24
- Input: Electrical parameter sensing
- Output: Digital signal
- Type: Smart power sensor
- Mounting: Panel/industrial use
Uses:
- Energy tracking
- Industrial automation
- System monitoring
- Load management

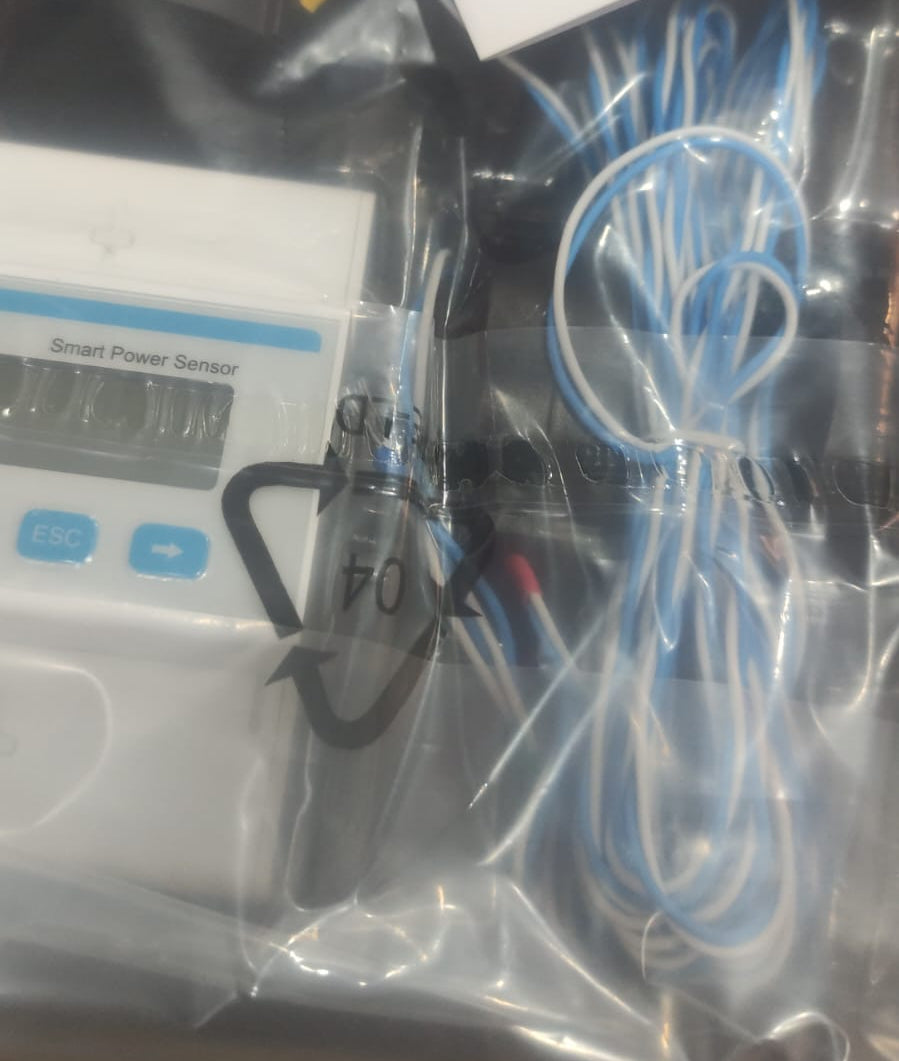

Package includes:
- 1x Smart Power Sensor
