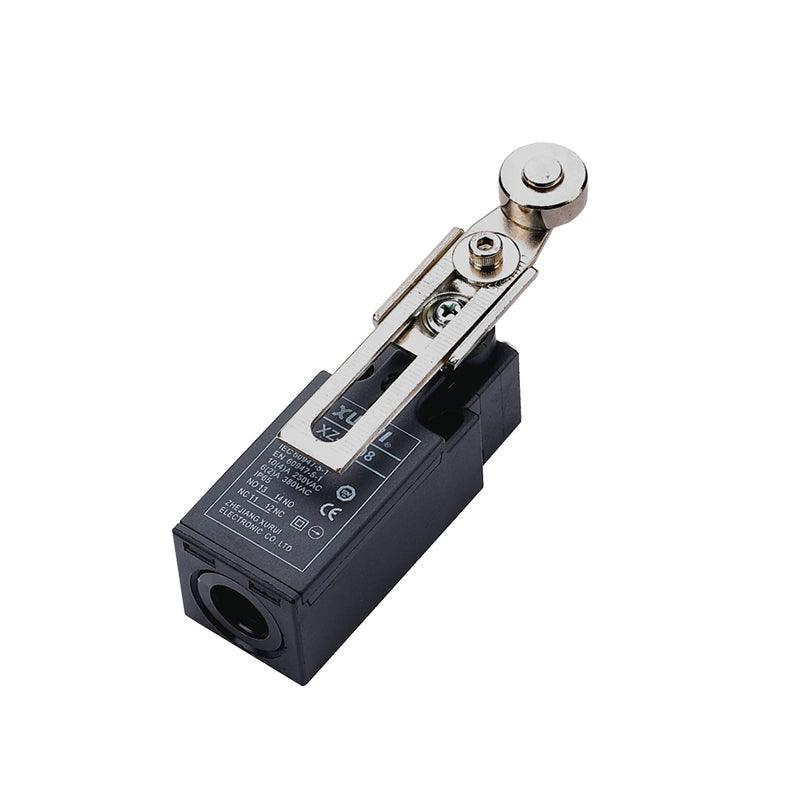

XZ-9108 Limit Switch
SKU:BR2771-P
Regular price
Rs 682
Regular price
Rs 700
Sale price
Rs 682
Unit price
per
Couldn't load pickup availability
XZ-9108 Limit Switch in Pakistan BR2771
Description:
Specification:
| Item | Data | |
| Rating Load | 10(4)A/250VAC, 6(2)A/380VAC | |
| Operation Speed | 5mm-0.5m/s | |
| Operation Frequency | Mechanical | 120 times/min |
| Electrical | 30 times/min | |
| Insulation Resistance | 100m? (above) DC500V | |
| Contact Resistance | 25m? initial value | |
| Withstand Voltage | Non-connection Wire | 1000VAC |
| Every Terminal | 1500VAC | |
| Vibration | Misoperation | 10-55Hz amplitude 1.5mm |
| Impact | Durable | 1000 m/s² |
| Misoperation | 300 m/s² | |
| Life | Electrical | 100,000 above |
| Mechanical | 1,000,000 above | |
| Protection Degree | IP65 | |
| Operating Temperature | -10~+70 ? | |
| Operating Humidity | <85% | |
Features:
- Economic plastic housing, light weight.
- Preventing oil and water.
- Double way switch, double spring inner switch.
- Variety of levers.
- Widely used in Mechanical equipment, automatic machine, instrument, electro motion tool, etc.
Packages Include:
1 x XZ-9108 Limit Switch
